AMD Radeon Instinct MI6 GPU

Built on a 14nm process with 5700 million transistors, the AMD Radeon Instinct MI6 GPU supports the Polaris architecture and was launched at the end of 2016. It has a maximum memory bandwidth of 224 GB/s connected to 16GB of GDDR5 memory while running at 1750 MHz, or 7 Gbps effective. The single slot GPU delivers 2304 stream processors, 144 texture mapping units, 36 compute units, and 32 ROPs. While the Instinct MI6 GPU can be overclocked to 1233 MHz, with a base clock of 1120 MHz.
Check Availability

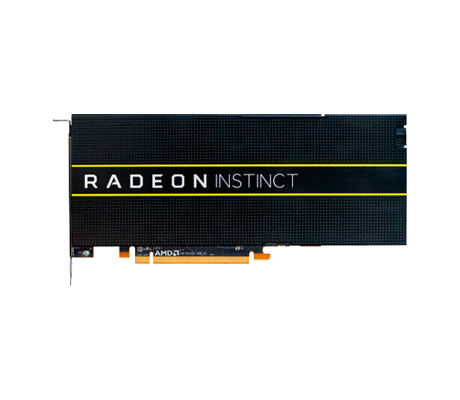

AMD Radeon Instinct MI6 GPU side view
AMD Executive Elite System Builder

AMD Radeon Instinct MI6 GPU - System Overview

AMD Radeon Instinct MI6 GPU logo AMD Radeon Instinct MI6 GPU logo

Additional Information

Drawing power from a single 6-pin power connector, AMD’s Radeon Instinct MI6 GPU is rated for a maximum power draw of 150W with a suggested host power supply unit of at least 450W. The card does not have any display connectivity ports since it’s not designed to have monitors connected to it. Instead, it is connected to the reset of the system via a PCIe 3.0 x16 interface and is designed for compute acceleration. This GPU supports up to 5.73 TFLOPS of half-precision (FP16) or up to 5.73 TFLOPS for peak single-precision performance (FP32). Some of the API software supported include DirectX 12, OpenGL 4.6, OpenCL 2.0, and Vulkan 1.0.

AMD Radeon Instinct MI6 GPU - Specifications

Memory

    GPU Memory: 16GB GDDR5
  • Memory Interface: 256-bit
  • Peak Memory Bandwidth: Up to 224 GB/s

Stream Processors

  • 2304

Transistor Count

  • 5700 million

Performance

  • GPU Architecture: Polaris
  • FP16 (Half Precision): 5.73 TFLOPS
  • FP32 (Single Precision): 5.73 TFLOPS

System Interface

  • PCI Express Support: 3.0 x16

Power Consumption

  • TDP: 150W Peak
  • Minimum PSU Recommendation: 450W
  • Power connector: 1x 6-pin

Form Factor

  • Single Slot
  • 9.5" length

Display Connectors

  • None

Engine

    Error Correcting Code (ECC) Support

  • No

    • 4K and HDR Display Port

  • Yes

    • Software API Support

  • OpenCL 2.0
  • OpenGL 4.6
  • DirectX 12
  • ROCm Open Ecosystem
  • Vulkan 1.0

AMD Radeon Instinct MI6 GPU - Documentation

AMD Radeon Instinct MI6 Specs
