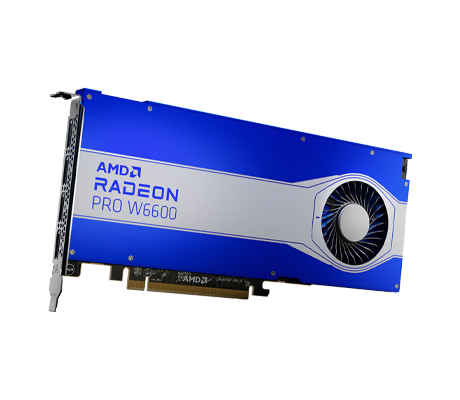

AMD Radeon Pro W6600 GPU

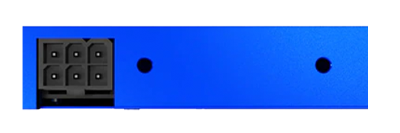

Built for 3D modeling workloads and real-time rendering, the Radeon PRO W6600 GPU offers advanced 8K Ultra-HD HDR support. It can support 4x 4K or 5K monitors or a single 8K monitor and offers a refresh rate of 60Hz with high dynamic range (HDR) enabled. With up to 8GB of GDDR6 memory clocked at 14Gbps, the AMD W6600 GPU delivers a 128-bit memory interface with a 224GB/s bandwidth. Compared to the GCN architecture of the previous generation, AMD’s RDNA 2 architecture offers up to a 94% jump in performance. The single-slot card has a blower design, and draws power from a 6-pin power connector with a TDP of up to 100W and a system PSU recommendation of up to 350W.

Delivering 1792 shading units, 112 texture mapping units, and 64 ROPs, the card also has 28 raytracing acceleration cores. At its peak, it can achieve 10.4 TFLOPS FP32 and 20.8 TFLOPS FP16, translating to a boost clock of about 2900 MHz. Although the W6600 graphics card supports PCIe 4.0, it has PCIe 3.0 backward compatibility. It delivers better performance combined with better power efficiency, providing exceptional images and higher resolution. This card sits between the double-wide W6800 with 6x mini display ports, and the single-width W6400 workstation GPU offering two display ports.
