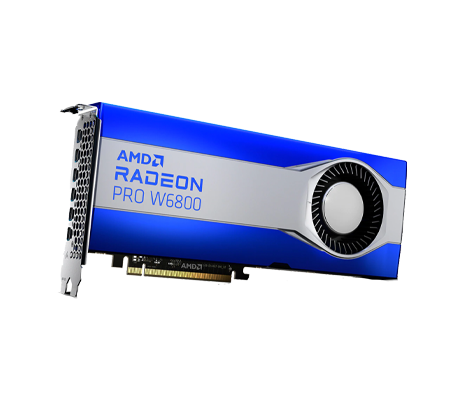

AMD Radeon Pro W6800 GPU

Ideal for architecture, engineering, manufacturing, media, and more, the Radeon PRO W6800 graphics card can take on any workload with demanding visualization and raytracing. It offers accelerated multitasking performance along with many ISV application certifications. This card features up to 26.8 billion transistors on a 7nm process architecture, 3840 shading units, 240 texture mapping units, 96 ROPs, and 60 raytracing acceleration cores. It has a base clock of 2075MHz but can be boosted up to 2320MHz. Although the W6800 GPU supports PCIe 4.0, it is fully compatible with older PCIe 3.0.

With 32GB of GDDR6 memory, it uses a 256-bit memory interface with a 512GB/s bandwidth running at 2000MHz or 16Gbps. The dual-slot card draws power from a 6-pin and 8-pin power cable and has a maximum TDP of up to 250W. A 650W minimum power supply is recommended for the host device. In addition, the card includes a single "blower" that pulls cool air from the top of the card and forces it out the back, replacing the three axial fans that circulate air inside on previous devices.
