AMD Radeon Pro W7600 GPU

Equipped with 8GB of GDDR6 memory, the single-width AMD Radeon Pro W7600 GPU supports a peak memory bandwidth of 288 GB/s and 32MB AMD Infinity Cache. It uses a Navi 33 graphics processor on a 6nm process with RDNA 3 architecture and 31.1 billion transistors. The GPU houses 2440 stream processors, 64 AI accelerators, and 32 compute units.
Check Availability

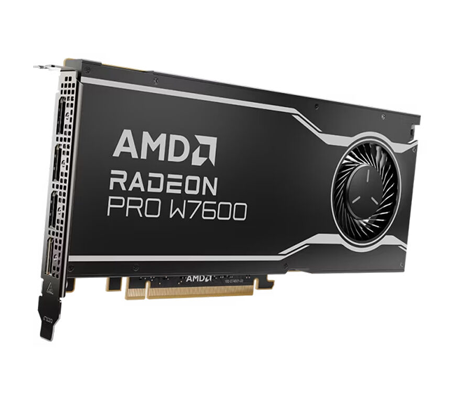

AMD Radeon Pro W7600 GPU side view
AMD Executive Elite System Builder

AMD Radeon Pro W7600 GPU - System Overview

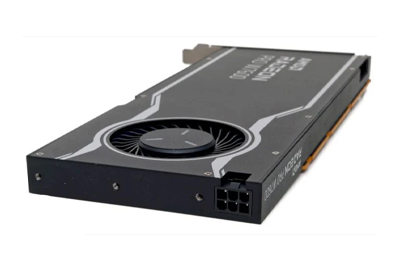

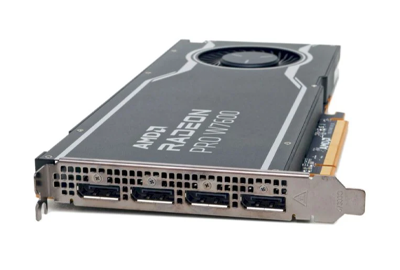

AMD Radeon Pro W7600 GPU ports AMD Radeon Pro W7600 GPU PSU

Additional Information

The Radeon Pro W7600 GPU operates using a PCIe 4.0 x8 interface directly on the motherboard, with power consumption of up to 130W and a minimum host PSU requirement of 500W through a single 6-pin power connector. It offers 4x DisplayPort 2.1, which support up to 8K monitors, plus technologies like AMD Remote Workstation, AMD Radeon VR Ready Creator, and AMD Viewport Boost. This is a workstation GPU with active cooling. Coupled with DirectX 12 Ultimate, this GPU is idea for game developers enabling superlative visuals and effects. With DirectX 12 Ultimate it can also provide supported games with a new level of realism with advanced ray tracing and mesh shaders.

AMD Radeon Pro W7600 GPU - Specifications

Memory

    GPU Memory: 8GB GDDR6
  • Memory Interface: 128-bit
  • Peak Memory Bandwidth: Up to 288 GB/s
  • AMD Infinity Cache Technology: 32MB

Stream Processors

  • 2440

Transistor Count

  • 31.1 billion

Performance

  • FP16 (Half Precision): 40 TFLOPS
  • FP32 (Single Precision): 20 TFLOPS

System Interface

  • PCI Express Support: 4.0 x8

Power Consumption

  • Total Power Board: 130W Peak
  • Minimum PSU Recommendation: 500W
  • Power connector: 1x 6-pin

Form Factor

  • Single Slot, Full height
  • 9.5" length

Display Connectors

  • 4x DisplayPort 2.1

Engine

    Error Correcting Code (ECC) Support

  • No

    • 8K UHD and HDR Display Port

  • Yes

    • Supported Technologies

  • AMD Viewport Boost
  • AMD Remote Workstation
  • AMD Radeon™ Media Engine
  • AMD Software: PRO Edition
  • AMD Radeon™ VR Ready Creator
  • AMD Radeon™ ProRender

    • Supported Operating Systems (64-bit)

  • Microsoft Windows 11
  • Microsoft Windows 10
  • Linux x86

AMD Radeon Pro W7600 GPU - Documentation

AMD Radeon Pro W7600 Specs AMD Radeon Pro W7600 Datasheet
