AMD Radeon Pro W7700 GPU

Based on AMD’s RDNA3 architecture, the double slot AMD Radeon Pro W7700 GPU has 16GB of GDDR6 ECC memory with a memory bandwidth of 576 GB/s. Designed to meet the demands of complex artificial intelligence applications, this professional graphics card delivers 3072 streaming processors, 96 AI accelerators, and 48 ray accelerators. As part of the AMD Radeon Pro W7000 Series product line, it is built on a 5nm process with the Navi 32 graphics processor, supporting up to 28.1 billion transistors and 56.54 TFLOPS for peak half precision (FP16) performance.
Check Availability

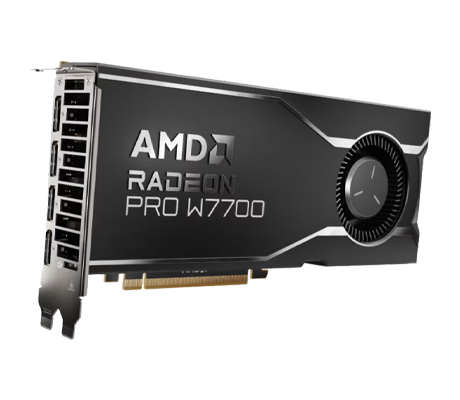

AMD Radeon Pro W7700 GPU side view
AMD Executive Elite System Builder

AMD Radeon Pro W7700 GPU - System Overview

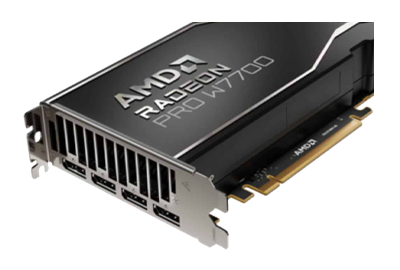

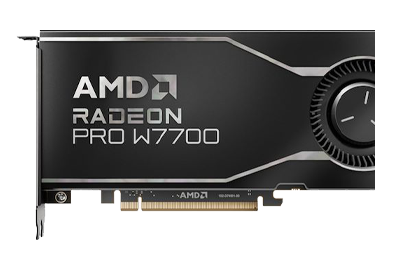

AMD Radeon Pro W7700 GPU ports AMD Radeon Pro W7700 GPU logo

Additional Information

This professional workstation GPU offers a base clock speed is 1900MHz but can be boosted to 2600MHz. With a power draw of up to 190W, the Radeon Pro W7700 GPU is connected to the system’s motherboard via a PCIe 4.0 x16 interface. Fed additional power through a single 8-pin power connector, the minimum host system PSU recommendation is 650W. It offers an active cooling solution with an integrated fan.



Aside from supporting DirectX 12 Ultimate, the Radeon Pro W7000 supports other technologies such as AMD Remote Workstation, AMD Radeon Media Engine, AMD Radeon ProRender, and more. On the side of the card, it features 4x DisplayPort 2.1 ports, plus supports high dynamic range (HDR), 8K, 10K, 12K, and is VR/Realtime ready. This card features AI enhanced video encoders and AMD’s Radiance Display Engine for up to 12-bit color depth support.

AMD Radeon Pro W7700 GPU - Specifications

Memory

    GPU Memory: 16GB GDDR6
  • Memory Interface: 256-bit
  • Peak Memory Bandwidth: Up to 576 GB/s
  • AMD Infinity Cache Technology: 64MB

Stream Processors

  • 3072

Transistor Count

  • 28.1 billion

Performance

  • FP16 (Half Precision): 56.54 TFLOPS
  • FP32 (Single Precision): 28.3 TFLOPS

System Interface

  • PCI Express Support: 4.0 Ready x16 with 3.0 Backward Compatibility

Power Consumption

  • Total Power Board: 190W Peak
  • Minimum PSU Recommendation: 650W
  • Power connector: 1x 8-pin

Form Factor

  • Dual Slot, Full height
  • 9.5" length

Display Connectors

  • 4x DisplayPort 2.1

Engine

    Error Correcting Code (ECC) Support

  • Yes

    • 8K UHD and HDR Display Port

  • Yes

    • Supported Technologies

  • AMD Viewport Boost
  • AMD Remote Workstation
  • AMD Radeon™ Media Engine
  • AMD Software: PRO Edition
  • AMD Radeon™ VR Ready Creator
  • AMD Radeon™ ProRender

    • Supported Operating Systems (64-bit)

  • Microsoft Windows 11
  • Microsoft Windows 10
  • Linux x86

AMD Radeon Pro W7700 GPU - Documentation

AMD Radeon Pro W7700 Specs AMD Radeon Pro W7700 Datasheet
