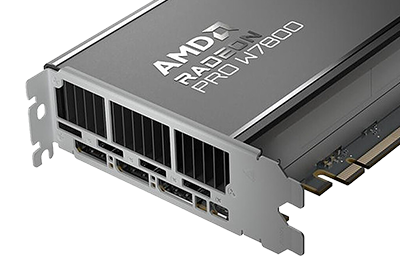

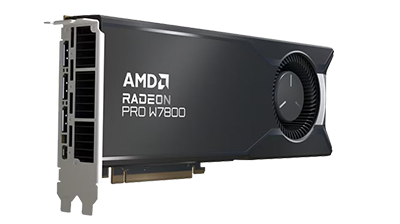

Designed for advanced AI applications, processing machine learning datasets, and professional-grade graphical task, the AMD Radeon PRO W7800 consumes 260W peak with a double-wide form factor. It features RDNA 3 architecture and has 32GB of GDDR6 memory and memory speeds of 576 GB/s. The base clock speed on this card is 1855 MHz, which is able to be boosted up to 2499 MHz. There are 3x DisplayPort 2.1 connections plus a single mini-DisplayPort 2.1 ports.
The AMD W7800 GPU supports up to 4x 4K displays, 2x 6K displays or a single 8K or 12K display. It has 70x Ray Accelerators, 140x AI Accelerators, 4480x Stream Processors, and 70x Compute Units. With a memory capacity of 32GB of GDDR6 memory, it has a bandwidth of 576GB/s. Considered an enthusiast-class professional graphics card, it has a 256-bit memory interface with support for ECC.
This GPU has an active cooling solution to regulate the temperatures. PCIe 4.0 is the supported interface of this card, which doubles the data throughput compared to the previous PCIe 3.0 generation. Backwards compatibility is also available on the Radeon W7800, meaning PCIe 3.0 systems can utilize this graphics card. AMD’s suite of GPU drivers grant access to remote utilization capabilities. 3x DisplayPort 2.1 and 1x mini-DisplayPort connections are available. With a thermal design point (TDP) of 260W, a minimum system PSU of 700W is recommended. Dual 8-pin power connectors provide the necessary power input to run this GPU.
AMD Radeon PRO W7800 - Specifications
Memory
GPU Memory: 32GB GDDR6
Error-correcting code (ECC)
Memory Interface: 256-bit
Memory Bandwidth: Up to 576GB/s
AMD Infinity Cache Technology: 64 MB
Architecture
GPU Architecture: AMD RDNA 3
Ray Accelerators: 70
AI Accelerators: 140
Stream Processors: 4480
Compute Units: 70
Performance
Half Precision (FP16) Performance: 90.5 TFLOPs
Single Precision Matrix (FP32) Performance: 45.2 TFLOPs
System Interface
PCIe 4.0 x16 (3.0 Backward Compatible)
Power Consumption
Total board power: 260W
Minimum PSU Recommendation: 700W
Thermal Solution: Active
Form Factor
1.6" H x 11" L x 4.3" Width, dual slot, full height
Dual Slot
Display Connectors
3 x DisplayPort 2.1
1 x mini-DisplayPort 2.1
Display Outputs
4 x 4096 x 2160 (4K DCI) @ 120Hz with DSCC
2 x 6144 x 3456 (6K) 12-bit HDR @ 60Hz Uncompressed
1 x 7680 x 4320 (8K) 12-bit HDR @ 60Hz Uncompressed
1 x 12288 x 6912 (12K) @ 120Hz with DSC
HDR Support: Yes
Power Connector
2 x 8-Pin Power Connectors
Supported Rendering Formats
1x Encode and Decode (AV1), 2x Decode (H265/HEVC, 4K H264), 2x Encode (+AVI Encode and Decode)
