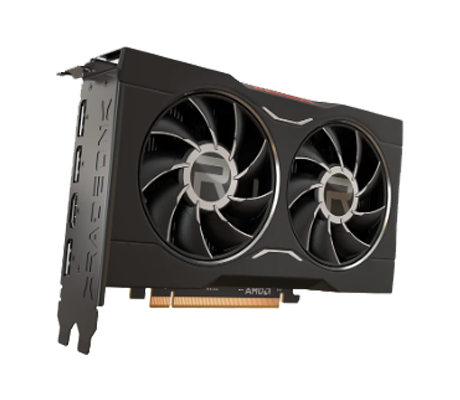

AMD Radeon RX 6650 XT GPU

Built on a 7nm process based on the Navi 23 graphics processor, the AMD Radeon RX 6650 XT GPU boasts AMD RDNA2 architecture and promises epic gaming at 1080p HD resolution. A GPU with up to 11.1 billion transistors, it supports up to 32 ray accelerators, 64 ROPs, 128 texture units, and 2048 stream processors. Peak single precision (FP32) performance of 10.79 TFLOPS and peak half precision compute performance of 21.59 TFLOPS are provided by the dual-slot card.

AMD Radeon RX 6650 XT GPU - System Overview

Additional Information

The AMD Radeon RX 6650 XT GPU, which belongs to the AMD Radeon RX 6600 Series product line, has an effective memory bandwidth of up to 468.9 GB/s and a 128-bit memory interface with up to 8GB of GDDR6 memory. The GPU runs at 2055 MHz, with a potential boost to 2635 MHz, while the memory runs at 17.5 Gbps.

When using the card for gaming or creating content, the dual fans serve to effectively cool the GPU maintaining operating temperatures even under load. It uses one 8-pin power connector to supply power. While the maximum power draw is rated at 180W, a minimum PSU of 500W is suggested for the host system. The Radeon RX 6650 XT is connected to the rest of the system via a PCIe 4.0 x8 interface and features 1x HDMI 2.1 and 3x DisplayPort 1.4a connections for maximum display support of up to 4K.
