AMD Radeon RX 6800 XT GPU - System Overview
Additional Information
This card provides up to 72 ray accelerators, 128 ROPs, 288 texture units, and 4608 stream processors. A peak texture fill rate of up to 648GT/s and a peak pixel fill rate of up to 288GP/s are supported. Peak compute capability for half precision is 41.47 TFLOPS, whereas for single precision, it is 20.74 TFLOPS. The GPU has a game frequency of 2015 MHz, with a boost frequency of up to 2250 MHz.

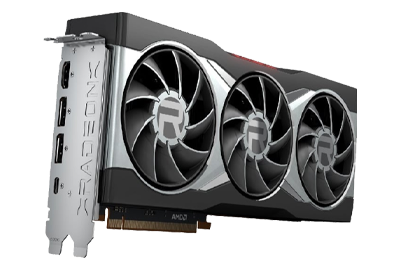

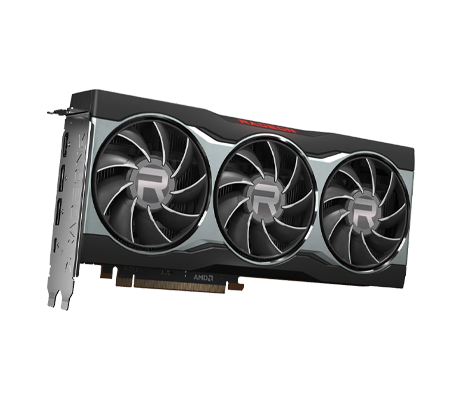

The aluminum frame on the Radeon RX 6800 XT GPU has three axial fans on the front for silent operation and cooling. It features two DisplayPort 1.4a, one HDMI 2.1, and one USB Type C port. In addition, the card requires a minimum of 750W for the host system PSU consuming up to 300W of average board power through two 8-pin power connectors. A PCIe 4.0 x16 interface links the GPU to the rest of the system.
