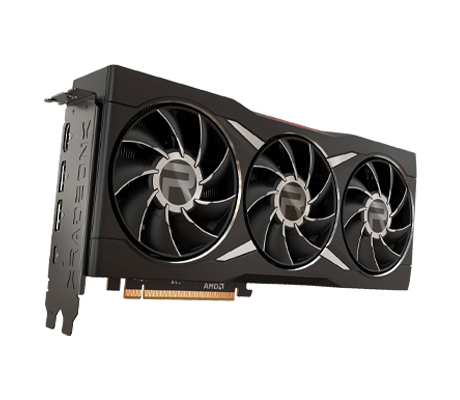

With triple fans on the card for cooling, the AMD Radeon RX 6950 XT GPU supports real-time rendering, shading, and textures, plus DirectX 12 Ultimate. It comes with 80 ray accelerators, 128 ROPs, and 5120 streaming processors. It is built using the Navi 21 graphics processor on a 7nm technology and is a member of the AMD Radeon RX 6000 Series product line. The 16GB memory is linked via a 256-bit interface and runs at a frequency of 1860MHz with a boost to 2310MHz.
This GPU draws power from 2x 8-pin power connectors with a maximum power draw rated at 335W and is supported with a minimum 850W power supply on the system. On the side of the graphics card there is 1x USB Type-C, 1x HDMI 2.1, and 2x DisplayPort 1.4a for support of 4K graphics. Aside from supporting DirectX 12 Ultimate, the Radeon RX 6950 XT supports AMD Software: Adrenalin Edition, AMD FidelityFX Super Resolution, AMD Radeon Anti-Lag, and more.
