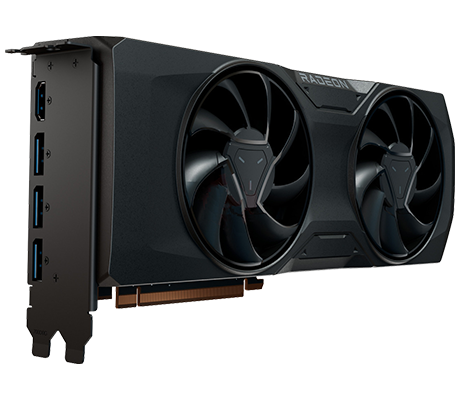

AMD Radeon RX 7700 XT

The AMD Radeon RX 7700 XT high-performance gaming and streaming GPU is from the NAVI III graphics card generation, and built on RDNA 3.0 architecture. It features 12GB of GDDR6 memory with a bandwidth of 432GB/s. This card’s base clock speed base clock speed is 1435 MHz which can be boosted up to 2544 MHz. A single HDMI 2.1a display output, 2x DisplayPort 2.1 outputs, and a single USB Type-C output offer flexibility for monitor support. 4K displays are supported on this card.

AMD Radeon RX 7700 XT - System Overview

Additional Information

Ideal for intensive gaming and streaming applications, the AMD RX 7700 XT graphics card houses 54x compute units, 54x ray accelerators, 108x AI accelerators, 216x texture units, 96x Render Output Units (ROPs), and 3456x stream processors. This card’s memory capacity is 12GB with a memory bandwidth of 432 GB/s. It has a 192-bit memory interface.

The active cooling configuration, utilizes 2x large fans. Supporting a PCIe 4.0 x16 interface doubles the data transfer bandwidth compared to the previous generation PCIe 3.0. AMD’s Adrenalin Software grants access to GPU management tools and customization options to help tailor the experience to each individual. With a thermal design point (TDP) of 245W AMD recommends a minimum PSU rating on the host system of 700W. Powering this card are dual 8-pin power connectors.

AMD Radeon RX 7700 XT - Specifications

Memory

AMD Infinity Cache Technology: 48 MB
Memory Speed: Up to 18 Gbps
Memory Interface: 192-bit
Memory Bandwidth: Up to 432 GB/s
Effective Memory Bandwidth: Up to 1995 GB/s

Architecture

GPU Architecture: RDNA 3.0
Compute Units: 54
Ray Accelerators: 54
AI Accelerators: 108
Render Output Unit: 96
Stream Processors: 3456
Texture Units: 216

Performance

Half Precision (FP16) Performance: 70 TFLOPs
Single Precision (FP32) Performance: 35 TFLOPs
Double Precision (FP64) Performance: 1,099 GFLOPs

System Interface

PCIe 4.0 x16

Display Connectors

1 x HDMI 2.1a
3 x DisplayPort 2.1

Power Consumption

Thermal Design Point: 245W
Peak Thermal Design Point: 700W
Thermal Solution: Active

Form Factor

Length: 10.5"
Width: 5.3"

Power Connector

2 x 8-Pin Power Connectors

Supported Techologies

AMD Software: Adrenalin Edition
AMD FidelityFX Super Resolution
AMD Noise Suppression
AMD Radeon FRTC
AMD Radeon Super Resolution
AMD Smart Access Memory
AMD Smart Access Video
AMD Privacy View
AMD Radeon Boost
AMD Radeon Anti-Lag
AMD Radeon Image Sharpening
AMD Enhanced Sync Technology
AMD FreeSync Technology
AMD Radeon Chill
AMD Virtual Super Resolution

Software APIs

DirectX: 12 Ultimate (12_2)
OpenGL: 4.6
OpenCL 2.2
Vulkan: 1.3
Shader Model: 6.7
