AMD Radeon RX 7900 XT GPU

Using AMD RDNA 3 architectures and designed on a 5nm process with a Navi 31 graphics processor, the AMD Radeon RX 7900 XT GPU supports 20 GB of GDDR6 memory. The memory has a 320-bit interface and effective memory bandwidth up to 2900 GB/s. Part of AMD’s Radeon RX 7000 series, it features up to 80MB of AMD’s Infinity Cache technology. Aside from DirectX 12 Ultimate, this card also supports AMD Noise Suppression, AMD FidelityFX Super Resolution, AMD Radeon Boost, and more.
Check Availability

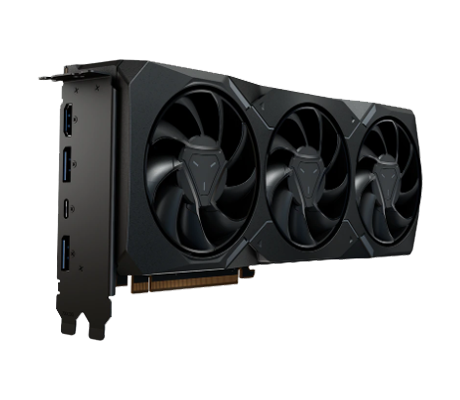

AMD Radeon RX 7900 XT GPU side view
AMD Executive Elite System Builder

AMD Radeon RX 7900 XT GPU - System Overview

AMD Radeon RX 7900 XT GPU logo AMD Radeon RX 7900 XT GPU ports

Additional Information

With up to 57,700 million transistors, the Radeon RX 7900 XT supports 5376 stream processors, 336 texture mapping units, 192 ROPs, and 84 raytracing cores. Offering a maximum frequency boost of 2394MHz, the GPU normally functions at 1387 MHz. The dual slot card supports 4x display outputs on its side for up to 8K Ultra HD resolutions including 1x HDMI 2.1a, 2x DisplayPort 2.1, and 1x USB Type-C port. The 315W power draw is via 2x 8-pin power connectors. The minimum PSU recommendation for the host system is 750W. It is connected to the host via a PCIe 4.0 x16 interface and features an active 3-fan cooling solution.

AMD Radeon RX 7900 XT GPU - Specifications

Memory

    GPU Memory: 20GB GDDR6
  • Memory Interface: 320-bit
  • Memory Bandwidth: Up to 800 GB/s
  • Effective Memory Bandwidth: Up to 2900 GB/s

Stream Processors

  • 5376

Transistor Count

  • 57, 700 Million (5nm Process)

Performance

  • FP16 (Half Precision): 103 TFLOPS
  • FP32 (Single Precision): 51.48 TFLOPS

System Interface

  • PCI Express Support: 4.0 Ready (x4) with 3.0 Backward Compatibility

Power Consumption

  • Suggested PSU: 315W
  • Suggested PSU: 750W
  • Power connector: 2x 8-pin

Form Factor

  • Dual Slot
  • 10.9" (276mm) length

Display Connectors

  • 1x HDMI 2.1a
  • 2x DisplayPort 2.1
  • 1x USB Type-C

Engine

    Error Correcting Code (ECC) Support

  • No

    • 8K UHD and HDR Display Port

  • Yes

    • Supported Technologies

  • AMD Software: Adrenalin Edition
  • AMD Radeon™ Super Resolution
  • AMD Radeon™ Anti-Lag
  • AMD FreeSync™ Technology
  • AMD FidelityFX™ Super Resolution
  • AMD Smart Access Memory
  • AMD Privacy View
  • AMD Radeon™ Image Sharpening
  • AMD Radeon™ Chill
  • AMD Noise Suppression
  • AMD Smart Access Video
  • AMD Radeon™ Boost
  • AMD Enhanced Sync Technology
  • AMD Virtual Super Resolution

    • Supported Operating Systems (64-bit)

  • Microsoft Windows 11
  • Microsoft Windows 10
  • Ubuntu x86
  • Linux x86

AMD Radeon RX 7900 XT GPU - Documentation

AMD Radeon RX 7900 XT Specs AMD Radeon RX 7900 XT Quick Setup Guide
