AMD Radeon RX 7900 XTX GPU

Designed to handle all the latest games, the AMD Radeon RX 7900 XTX GPU is built on a 5nm process based on the Navi 31 graphics processor with RDNA 3 architecture. Delivering up to 57,000 million transistors, the graphics card features 6144 stream processors, 384 texture mapping units, 192 ROPs, and 96 ray tracing acceleration cores.
Check Availability

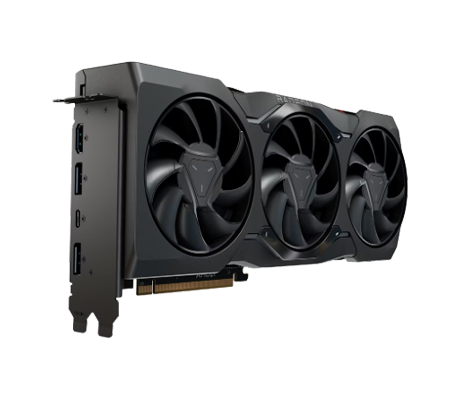

AMD Radeon RX 7900 XTX GPU side view
AMD Executive Elite System Builder

AMD Radeon RX 7900 XTX GPU - System Overview

AMD Radeon RX 7900 XTX GPU logo AMD Radeon RX 7900 XTX GPU ports

Additional Information

The dual slot Radeon RX 7900 XTX GPU offers 24GB of GDDR6 memory with a 384-bit memory interface running at 2500MHz. The GPU itself operates at a frequency of 1929MHz that can be boosted up to 2498MHz. The card has 3x different display outputs for up to 8K Ultra HD resolutions via 1x HDMI 2.1a, 2x DisplayPort 2.1, and 1x USB Type-C. Two 8-pin power connectors, with a maximum consumption of 355W, supply power to the card, meanwhile the minimum host PSU recommendation is 800W. In addition to supporting DirectX 12 Ultimate, this card also supports AMD Radeon Anti-Lag, AMD FreeSync Technology, AMD Noise Suppression, and AMD Radeon Boost.

AMD Radeon RX 7900 XTX GPU - Specifications

Memory

    GPU Memory: 24GB GDDR6
  • Memory Interface: 384-bit
  • Memory Bandwidth: Up to 960 GB/s
  • Effective Memory Bandwidth: Up to 3500 GB/s

Stream Processors

  • 6144

Transistor Count

  • 58 Billion (5nm Process)

Performance

  • FP16 (Half Precision): 122.8 TFLOPS
  • FP32 (Single Precision): 61.39 TFLOPS

System Interface

  • PCI Express Support: 4.0 Ready (x4) with 3.0 Backward Compatibility

Power Consumption

  • Suggested PSU: 355W
  • Suggested PSU: 750W
  • Power connector: 2x 8-pin

Form Factor

  • Dual Slot
  • 11.3" (287mm) length

Display Connectors

  • 1x HDMI 2.1a
  • 2x DisplayPort 2.1
  • 1x USB Type-C

Engine

    Error Correcting Code (ECC) Support

  • No

    • 8K UHD and HDR Display Port

  • Yes

    • Supported Technologies

  • AMD Software: Adrenalin Edition
  • AMD Radeon™ Super Resolution
  • VSR(4K)
  • AMD Radeon™ Anti-Lag
  • AMD FreeSync™ Technology
  • AMD FidelityFX™ Super Resolution
  • AMD Smart Access Memory
  • AMD Privacy View
  • AMD Radeon™ Image Sharpening
  • AMD Radeon™ Chill
  • AMD Noise Suppression
  • AMD Smart Access Video
  • AMD Radeon™ Boost
  • AMD Enhanced Sync Technology
  • AMD Virtual Super Resolution

    • Supported Operating Systems (64-bit)

  • Microsoft Windows 11
  • Microsoft Windows 10
  • Ubuntu x86
  • Linux x86

AMD Radeon RX 7900 XTX GPU - Documentation

AMD Radeon RX 7900 XTX Specs AMD Radeon RX 7900 XTX Quick Setup Guide
