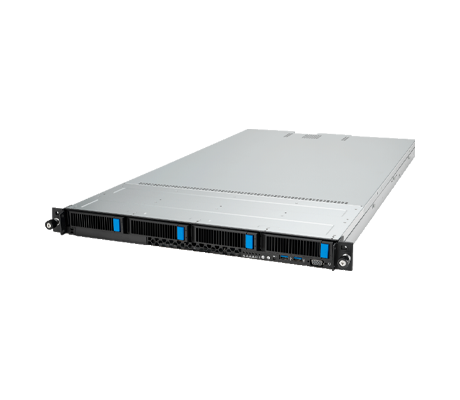

ASUS RS501A-E12-RS4 Server

At 1U, the ASUS RS501A-E12-RS4 Server supports a single socket compatible with AMD EPYC 9004 or 9005 series processors, as well as those with AMD 3D V-Cache technology. These CPUs support up to 192 Zen 5c cores, a maximum TDP of up to 360W, and a 12-channel memory architecture. 2x DIMMs per channel are available for a total of 24x memory module slots. At capacity, up to 2TB of memory can be deployed with standard RDIMMs or 3DS RDIMMs. Depending on the type of CPU installed, memory speeds range from 4800 MHz to 5200MHz.

Overview

ASUS RS501A-E12-RS4 Server - System Overview

Up to 3x PCIe 5.0 slots can be accessed through the rear of the 1U chassis, as well as 1x OCP 3.0 Gen5 x16 slot. Under the hood, the ASUS RS501A-E12-RS4 supports 2x single-slot GPUs and 2x M.2 slots for Gen4 x4 link or SATA mode, which can accommodate up to 22110 modules. On the front of the system, administrators can load 4x 3.5” hot-swap SATA/SAS drive bays. This system is powered by either a 1+1 redundant 1200W 80 PLUS Platinum power supply or a 1+1 redundant 1600W 80 PLUS Titanium power supply.

The RS501A-E12-RS4 is designed for cloud and on-premises data centers, as well as hybrid cloud environments across various industries. To manage the system, users can control hardware, software updates and more with the web-based ASUS Control Center. Although a license is needed, administrators are able to control servers, workstations, and more commercial products all in one place. The ASUS ASMB11-iKVM also provides remote control by accessing the ASPEED AST2600 module built into the motherboard.

Specifications

ASUS RS501A-E12-RS4 Server - Specifications

Processor- 1 Socket

AMD EPYC 9005 Series
AMD EPYC 9004 Series
AMD 3D V-Cache technology
2 x Socket SP5 (LGA 6096)
TDP up to 360W

Memory

24x DIMM slots
Maximum 2304GB
12-channel per CPU, 2 DIMM per CPU
RDIMM/3DS RDIMM supported

AMD EPYC 9005 Series

2DPC (1 of 2) up to 5200
2DPC (2 of 2, 1R+1R ) up to 4400
2DPC (2 of 2, 2R+2R ) up to 4000

AMD EPYC 9004 Series

2DPC (1 of 2) up to 4800
2DPC (2 of 2, 1R+1R ) up to 4000
2DPC (2 of 2, 2R+2R ) up to 3600

Drive Bays

4 x 2.5” Hot-swap Drive Bays

Support for SATA/SAS
2 x M.2 connectors

LAN

1 x Dual Port Intel I350-AM2 Gigabit LAN controller
1 x Dedicated management port (BMC, AST2600)

Expansion Slots

3 PCIe Gen5 slots + 1 OCP3.0

1 x PCIe x16 slot (Gen5 x16 link, FH, HL)
1 x PCIe x16 slot (Gen5 x16 link, LP, HL)
1 x PCIe x16 slot (Gen5 x8 link, LP, HL)
1 x OCP3.0 socket (Gen5 x16 link)

Disk Controller

Storage Controller

CPU integrated

Optional Kits Controller

ASUS PIKE II 3008-8i 8-port SAS 12G HBA card

Front I/O Ports

2 x USB 3.2 Gen1 ports
1 x VGA port

Rear I/O Ports

2 x USB 3.2 Gen1 ports
1 x VGA port
1 x Management port
2 x 1GbE LAN ports

Switch/LED

Front Switch/LED:

1 x Power Button/LED, 1x Location Button/LED, 1 x Message LED, 1 x HDD LED, 4 x LAN LED (1-2 for on-board LAN, 3-4 for OCP LAN)

Rear Switch/LED:

1 x Port 80 LED (Q-Code), 1 x Power Button/LED, 1 x Location Button/LED, 1 x Message LED

Chassis

842.5mm x 449mm x 43.85mm / 33.17" x 17.68" x 1.73"

Net Weight:

13.15 kg

Gross Weight:

18.15 kg

Power Supply

1+1 Redundant 1200W 80 PLUS Platinum Power Supply
1+1 Redundant 1600W 80 PLUS Titanium Power Supply

System Management

ASUS Control Center
ASUS ASMB11-iKVM (on-board)

Documentation

ASUS RS501A-E12-RS4 Server - Documentation

ASUS RS501A-E12-RS4 Server User Manual ASUS RS501A-E12-RS4 Server Data Sheet ASUS ASMB11-iKVM Server Management Board User Guide ASUS Control Center User Guide ASUS Control Center Express User Manual
