ASUS RS501A-E12-RS4U Server

Built for general-purpose applications, the AMD-based ASUS RS501A-E12-RS4U Server features a single-socket design in a 1U form factor. It supports 5th or 4th generation AMD EPYC processors, including those with AMD 3D V-Cache technology. Supported processors can provide up to 192 Zen 5c cores, a 12-channel memory architecture, speeds up to 5200MHz, and a maximum TDP of 450W. The server's single AMD CPU supports 24x DDR5 memory slots, for up to 3TB of memory. The front panel includes 4x 2.5-inch hot-swappable bays, designed for all-flash 2.5” drives. Additionally, the motherboard offers 2x M.2 sockets, supporting cards with up to a 22110 form factor in either Gen5 x4 or SATA mode.

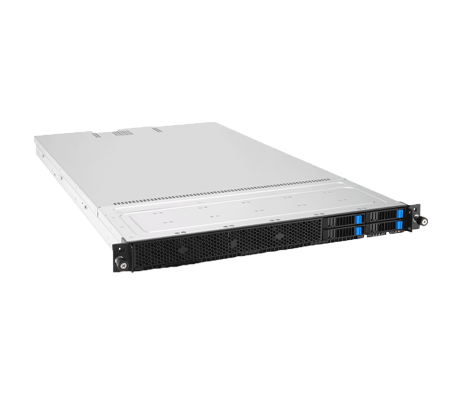

ASUS RS501A-E12-RS4U Server side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

ASUS RS501A-E12-RS4U Server - System Overview

ASUS RS501A-E12-RS4U server front

The RS501A-E12-RS4U Server features multiple PCIe 5.0 slots to meet the demands of AI and high-performance computing (HPC) workloads, including supporting up to 2x single-slot active or passive GPUs, and Xilinx Alveo accelerators. There are 3x PCIe 5.0 slots supported in two risers, including a single PCle Gen5 x16 slot as well as 2x PCle Gen5 x16 slots featuring low-profile, half-length form factors in a butterfly riser. One of these slots has a x16 link while the other supports a x8 link. This system also supports a single OCP 3.0 slot. Compatible CPUs supported on this system feature a high TDP of up to 450W and are equipped with an enhanced-volume air-cooling (EVAC) heatsink for heat dissipation. This system is powered by either 1+1 redundant 1200W 80 PLUS Platinum power supplies or 1+1 redundant 1600W 80 PLUS Titanium power supplies.

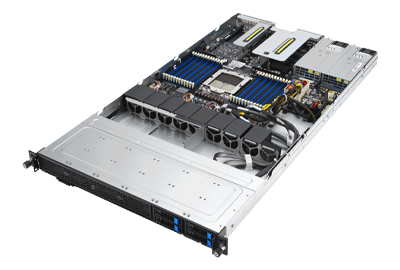

ASUS RS501A-E12-RS4U server top angle

The web-based ASUS Control Center allows users to manage the hardware inventory, software upgrades, and other aspects. Administrators can manage workstations, servers, and other commercial goods in one location. Via the ASPEED AST2600 module included on the motherboard, the ASUS ASMB11-iKVM also offers remote management of the system but a license is required.

ASUS RS501A-E12-RS4U Server - Specifications

Processor- 1 Socket

  • AMD EPYC 9005 Series
  • AMD EPYC 9004 Series
  • AMD 3D V-Cache technology
  • 1 x Socket SP5 (LGA 6096)
  • TDP up to 450W

Memory

    Memory Slots

  • 24x DIMM slots
  • Maximum 3,072GB
  • 12-channel per CPU, 2 DIMM per CPU
  • RDIMM/3DS RDIMM supported
  • DDR5 5600 RDIMM/ 3DS RDIMM

    • AMD EPYC 9005 Series CPUs:

  • 2DPC (1 of 2) up to 5200
  • 2DPC (2 of 2, 1R+1R ) up to 4400
  • 2DPC (2 of 2, 2R+2R ) up to 4000

    • AMD EPYC 9004 Series CPUs:

  • 2DPC (1 of 2) up to 4800
  • 2DPC (2 of 2, 1R+1R ) up to 4000
  • 2DPC (2 of 2, 2R+2R ) up to 3600

Drive Bays

    Front Bays:

  • 4 x 2.5” Hot-swap Storage Bays
  • 4 x SATA/SAS/NVMe*

    • *SAS support only from optional SAS
    HBA/RAID card

    2 x M.2 connectors

Storage

    Storage Controller:

  • CPU Integrated

    • Optional Kits Controller:

  • ASUS PIKE II 3008-8i 8-port SAS 12G HBA card

Graphic

  • Up to 2x single-slot GPU cards

LAN

  • 1 x Dual Port Intel I350-AM2 GbE LAN Controller
  • 1 x Management Port

Expansion Slots

    Up to 3x PCIe Gen5 slots + 1x OCP 3.0

  • 1 x PCIe x16 slot (Gen5 x16 link, FH, HL)
  • 1 x PCIe x16 slot (Gen5 x16 link, LP, HL)
  • 1 x PCIe x16 slot (Gen5 x8 link, LP, HL)
  • 1 x OCP3.0 socket (Gen5 x16 link)

Front I/O Ports

  • None

Rear I/O Ports

  • 2 x USB 3.2 Gen1 ports
  • 1 x VGA port
  • 1 x Management Port
  • 2 x 1GbE LAN ports

Switch/LED

    Front:

  • 1 x Power Button/LED
  • 1 x Location Button/LED
  • 1 x Message LED
  • LAN 1-2 LED

    • Rear:

  • 1 x Port 80 LED (Q-Code)
  • 1 x Power Button/LED
  • 1 x Location Button/LED
  • 1 x Message LED

Power Supply

  • 1+1 Redundant 1600W 80 PLUS Platinum Power Supply
  • 1+1 Redundant 1200W 80 PLUS Titanium Power Supply

System Management

  • ASUS Control Center Enterprise(Optional)
  • On-Board ASMB11-iKVM for KVM-over-IP

Chassis

    1U Enclosure

  • 842.5mm x 449mm x 43.85mm/33.15" x 17.68" x 1.73"

    • Net Weight:

  • 13.15 kg/28.99 lbs

    • Gross Weight:

  • 18.93 kg/41.73 lbs

ASUS RS501A-E12-RS4U Server - Documentation

ASUS RS501A-E12-RS4U Server User Manual ASUS RS501A-E12-RS4U Server Data Sheet ASUS ASMB11-iKVM Server Management Board User Guide ASUS Control Center User Guide ASUS Control Center Express User Manual
