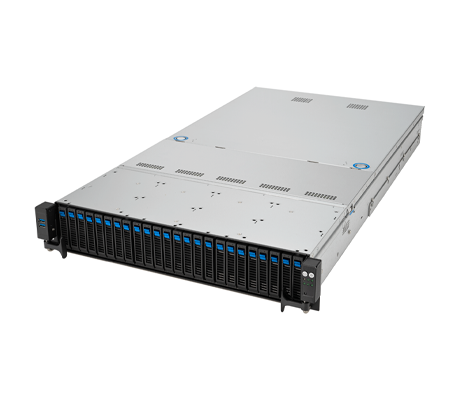

The ASUS RS520A-E12-RS24U Server is a 2U platform with up to 6TB of DDR5 memory when all 24x memory module slots are populated. It can accommodate a single 4th Generation AMD EPYC 9004 series processor with a maximum TDP of up to 400W, including those with AMD 3D V-Cache technology. In addition, this system supports up to 4x single-slot or 2x double-slot GPU cards, including the NVIDIA A100 and A40, plus AMD Instinct, and Xilinx options.
ASUS RS520A-E12-RS24U Server - System Overview
The RS520A-E12-RS24U offers up to 5x PCIe 5.0 slots with a 32GT/s bandwidth, which is twice the speed of PCIe 4.0. It also supports a lower power consumption, system upgrade, and backwards compatibility. The system features 1x OCP3.0 PCIe Gen5 x16 slot, 2x M.2 slots with a PCIe Gen5 x4 link for 22110 modules. Up to 24x drive bays are available on the front panel, which can be configured with SAS, SATA and U.2 or U.3 NVMe storage devices. The rear of the chassis also supports 2x 2.5” SAS3 hot-swap drive bays.
Supported Storage Configurations
24x 2.5” hot-swap drive bays (optional)
24x U.2/U.3 NVMe
16x U.2/U.3 NVMe + 8x SAS/SATA (must use RAID card)
12x U.2/U.3 NVMe + 12x SAS/SATA
8x U.2/U.3 NVMe + 16x SAS/SATA
*Note: 24x NVMe SKU can’t support GPUs
Depending on the system configuration, it can be equipped with either 1+1 redundant 1600W 80 PLUS Titanium power supplies, or 1+1 redundant 1600W/1200W 80 PLUS Platinum power supplies. Remote management is facilitated through the ASUS ASMB11-iKVM, utilizing the integrated ASPEED AST2600 module on the motherboard. This enables users to manage software updates, hardware, and other system components via the web-based ASUS Control Center. A license is required for access, allowing administrators to efficiently monitor workstations, servers, and other equipment from a centralized location.
ASUS RS520A-E12-RS24U Server - Specifications
Processor- 1 Socket
AMD EPYC 9004 Series
AMD 3D V-Cache technology
1 x Socket SP5 (LGA 6096)
Air cool with STD HSK up to 400W
Memory
Memory Slots
24x DIMM slots
Maximum 6144GB
RDIMM/3DS RDIMM supported
1DPC up to 4800
2DPC up to 4000(1R+1R)
2DPC up to 3600(1R+2R)/ (2R+2R)
Drive Bays
Front Bays
16 NVMe configuration SKU:
24 x 2.5” hot-swap drive bays
Support 16x NVMe + 8 SAS/SATA
RAID/PIKE cable is needed for 8 SAS/SATA
12 NVMe configuration SKU:
24 x 2.5” hot-swap drive bays
Support 12x NVMe + 12 SAS/SATA
SAS support only from optional SAS HBA/RAID card
24 NVMe configuration SKU:
24 x 2.5” hot-swap drive bays
Support 24x NVMe
Rear Bays
2x 2.5” SATA hot-swap drive bays
2 x M.2 connectors
LAN
1 x Dual Port Intel I350-AM2 Gigabit LAN controller
1 x management port
Expansion Slots
12 & 16 NVMe Configuration SKU
Up to 5 PCIe Gen5 slots + 1 OCP3.0
2 x PCIe Gen5 x16, FHFL or 4 x PCIe Gen5 x8, FHFL
1 x PCIe Gen5 x8, LP
1 x OCP 3.0 Slot ( (PCIe Gen5 x16)
24 NVMe Configuration SKU
Up to 1 PCIe Gen5 slots + 1 OCP3.0
1 x PCIe Gen5 x8, LP
1 x OCP 3.0 Slot ( (PCIe Gen5 x16)
Disk Controller
Storage Controller
CPU integrated
Optional Kits Controller
Broadcom Mega RAID 9560-16i
ASUS PIKE II 3008-8i 8-port SAS 12G HBA card
Front I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA port
Rear I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA port
1 x Management port (RJ45)
2 x 1GbE LAN ports
Switch/LED
Front Switch/LED:
1 x Power Button/LED, 1 x Reset Switch, 1x Location Button/LED, 1 x HDD Access LED, 1 x Message LED, LAN 1-2 LED
Rear Switch/LED:
1 x Port 80 LED (Q-Code), 1 x Power Button/LED, 1 x Location Button/LED, 1 x Message LED
Chassis
2U Enclosure
840mm x 449mm x 88.1mm / 33.07” x 17.68” x 3.47
Net Weight:
19.14 kg
Gross Weight:
26.63 kg
Power Supply
1+1 Redundant 1600W 80 PLUS Titanium Power Supply
1+1 Redundant 1600W/1200W 80 PLUS Platinum Power Supply
