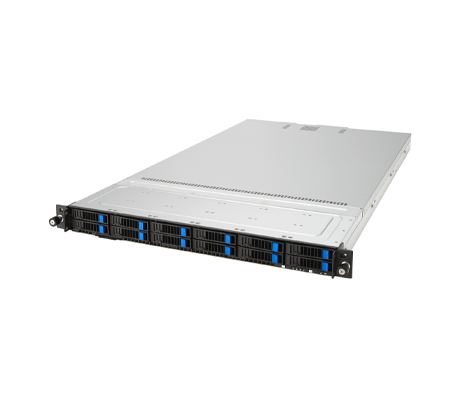

ASUS RS700A-E12-RS12U Server

Featuring up to 6TB of memory when all 24x memory module slots are filled, the ASUS RS700A-E12-RS12U supports dual 4th generation AMD EPYC 9004 processors with AMD 3D V-Cache technology at up to 400W per socket. The high TDP CPUs are available due to the help from an enhanced-volume air-cooling (EVAC) heatsink. These CPUs deliver up to 128 Zen 4c cores and a 12-channel memory architecture with speeds up to 4800 MHz. In addition to the 12x 2.5" hot-swap drive bays on the front panel for NVMe, SATA, or SAS configurations, the motherboard on this 1U system also offers 2x M.2 sockets, supporting cards with up to a 2280 form factor.

Overview

ASUS RS700A-E12-RS12U Server - System Overview

Up to 4x PCIe Gen5 slots are available on the RS700A-E12-RS12U server, including a space for one dual-slot GPU such as the NVIDIA A100 and A40, or AMD Instinct and Xilinx alternatives. The system accommodates 2x PCIe Gen5 x16 FHFL slots, 1x PCIe Gen5 x16 LP slot, 1x internal PCIe Gen5 x8 slot, and 1x OCP 3.0 Gen5 x16 slot. On the rear of the chassis there are 4x 1Gb RJ45 LAN ports or 2x 10Gb RJ45 LAN ports available. This system is powered by either 1+1 redundant 2000W/1600W 80 PLUS Platinum power supplies or 1+1 redundant 2600W/1600W 80 PLUS Titanium power supplies.

To manage the system, administrators can deploy the ASUS Control Center, a web-based program, to control hardware, software upgrades, and other aspects. All types of systems can be managed in one location, but a license is required. ASUS ASMB11-iKVM also offers remote control via the ASPEED AST2600 module on the motherboard.

Specifications

ASUS RS700A-E12-RS12U Server - Specifications

Processor- 2 Sockets

AMD EPYC 9004 Series
AMD 3D V-Cache technology
2 x Socket SP5 (LGA 6096)
TDP up to 400W

Memory

24 (12-channel per CPU, 1 DIMM per CPU)

Capacity:

Maximum up to 3072GB per socket

Memory Type:

DDR5 4800/4400 RDIMM/ 3DS RDIMM

Memory Size:

128GB, 64GB, 32GB RDIMM
128GB, 64GB, 32GB 3DS RDIMM

Drive Bays

12 x 2.5” hot-swap drive bays
Support 12x NVMe/SAS/SATA
RAID card is required to support SAS hard drives

LAN

1 x Dual Port Intel I350-AM2 Gigabit LAN controller
1 x management port

Expansion Slots

Up to 3x PCIe Gen5 slots + 1x internal RAID slot

1 x PCIe Gen5 x16 (FHFL)
1 x PCIe Gen5 x16 or OCP3.0 (FHFL)
1 x PCIe Gen5 x16 (LP)
1 x PCIe Gen4 x8 (LP, internal)

Disk Controller

SATA Controller

12 x SATA 6Gb/s ports
2 x M.2 connectors (SATA 6Gb/s & PCI-E Gen4 x4 link)

SAS Controller

Broadcom HBA CARD 9500-16i (Optional)
Broadcom MegaRAID 9540-8i (Optional)
Broadcom MegaRAID 9560-16i (Optional)

NVMe Controller

SupremeRAID from Graid SR1001 (support up to 4 NVMe) (Optional)
SupremeRAID from Graid SR1000 (support up to 12 NVMe) (Optional)
SupremeRAID from Graid SR1010 (support up to 12 NVMe) (Optional)

Front I/O Ports

None

Rear I/O Ports

2 x USB 3.2 Gen1 ports
1 x VGA port
1 x Management port (RJ45)
2 x 10G or 4 x 1G RJ-45 GbE LAN port (Optional)
1 x OCP3.0 port (optional)

Switch/LED

Front Switch/LED:

1 x Power Button/LED, 1 x Reset Switch, 1x Location Button/LED, 1 x HDD Access LED, 1 x Message LED, LAN 1-4 LED (on NIC module)

Rear Switch/LED:

1 x Port 80 LED (Q-Code), 1 x Power Button/LED, 1 x Location Button/LED, 1 x Message LED

Chassis

842.5mm x 449mm x 43.85mm / 33.17" x 17.68" x 1.73"

Net Weight:

14.94 kg

Gross Weight:

19.94 kg

Power Supply

1+1 Redundant 2000W/1600W 80 PLUS Platinum Power Supply
1+1 Redundant 2600W/1600W 80 PLUS Titanium Power Supply

System Management

ASUS Control Center
ASUS ASMB11-iKVM (onboard)

Documentation

ASUS RS700A-E12-RS12U Server - Documentation

ASUS RS700A-E12-RS12U Server User Manual ASUS RS700A-E12-RS12U Server Data Sheet ASUS ASMB11-iKVM Server Management Board User Guide ASUS Control Center User Guide ASUS Control Center Express User Manual
