ASUS RS700A-E12-RS4U Server

Offering 128 Zen 4c cores, a 12-channel memory architecture, the 1U ASUS RS700A-E12-RS4U Server is powered by dual 4th generation AMD EPYC 9004 processors. Each CPU supports memory speeds of up to 4800 MHz, with a maximum TDP of 400W. This server supports a single dual-slot GPU, including options such as the NVIDIA A100, NVIDIA A40, AMD Instinct, and Xilinx. The system includes 4x hot-swappable 3.5" drive bays that support NVMe, SATA, or SAS configurations. 2x M.2 slots on the motherboard can be used for additional storage expansion or to boot the system.

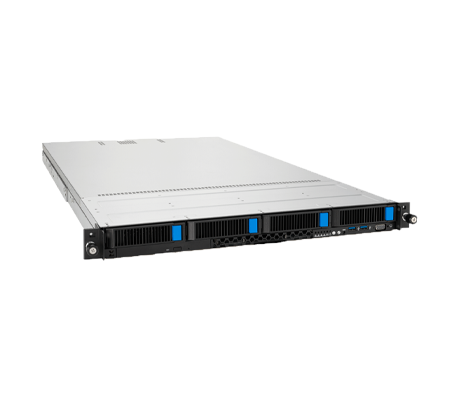

ASUS RS700A-E12-RS4U Server side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

ASUS RS700A-E12-RS4U Server - System Overview

ASUS RS700A-E12-RS4U server front

The RS700A-E12-RS4U server AMD CPUs processors are equipped with an Enhanced Volume Air Cooling (EVAC) heatsink ensuring efficient thermal management for high TDP operation. It supports up to 6TB of memory when all 24x memory slots are populated with 3DS RDIMMs. The server includes 1x OCP 3.0 module and up to 3x PCIe Gen5 slots offering 32 GT/s bandwidth, which is twice the speed of PCIe 4.0. For faster connectivity, the rear panel provides options for 2x 10Gbps or 4x 1Gbps on-board LAN modules. Additional network controllers can be installed using the OCP card slot or PCIe slots. To power the system, you can choose between 1+1 redundant 2000W/1600W 80 PLUS Platinum power supplies or 1+1 redundant 2600W/1600W 80 PLUS Titanium power supplies, based on your configuration.

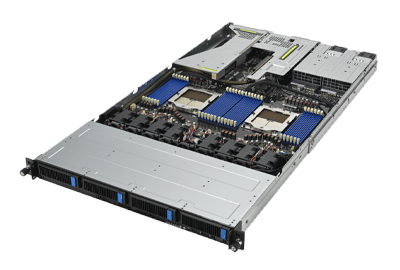

ASUS RS700A-E12-RS4U server top angle

The web-based ASUS Control Center allows users to manage hardware, software upgrades, and other system components. With the integrated ASPEED AST2600 module built into the motherboard, the ASUS ASMB11-iKVM also offers remote control of the system. Administrators can manage workstations, servers, and other equipment in one location, remotely, but a license is required.

ASUS RS700A-E12-RS4U Server - Specifications

Processor- 2 Sockets

  • AMD EPYC 9004 Series
  • AMD 3D V-Cache technology
  • 2 x Socket SP5 (LGA 6096)
  • TDP up to 400W

Memory

    Memory Slots

  • 24x DIMM slots
  • Maximum 3,072GB
  • 12-channel per CPU, 2 DIMM per CPU
  • RDIMM/3DS RDIMM supported
  • DDR5 4800/4400 RDIMM/ 3DS RDIMM

    • Memory Size:

  • 128GB, 64GB, 32GB RDIMM
  • 128GB, 64GB, 32GB 3DS RDIMM

Drive Bays

    Front Bays:

  • 4 x 3.5” Hot-swap Storage Bays
  • 4 x SATA/SAS/NVME*

    • *RAID card is required to support SAS hard drives

Storage

    SATA Controller:

  • 4 x SATA 6Gb/s ports
  • 2 x M.2 connectors (SATA 6Gb/s & PCI-E Gen4 x4 link)

    • SAS Controller:

  • Broadcom HBA CARD 9500-16i (Optional)
  • Broadcom MegaRAID 9540-8i (Optional)
  • Broadcom MegaRAID 9560-16i (Optional)

    • NVME Controller:

  • SupremeRAID from Graid SR1001 (support up to 4 NVMe) (Optional)
  • SupremeRAID from Graid SR1000 (support up to 4 NVMe) (Optional)
  • SupremeRAID from Graid SR1010 (support up to 4 NVMe) (Optional)

Graphic

  • Aspeed AST2600 64MB

LAN

  • Option 1: 1 x Quad Port Intel I350-AM4 1G LAN Controller + 1 x Mgmt LAN
  • Option 2: 1 x Dual Port Intel X710-AT2 10G LAN Controller + 1 x Mgmt LAN
  • Option 3: None x + 1 x Mgmt LAN

Expansion Slots

    Up to 3 PCIe Gen5 slots + 1 x internal RAID slot

  • 1 x PCIe Gen5 x16 (FHFL)
  • 1 x PCIe Gen5 x16 or OCP3.0 (FHFL)
  • 1 x PCIe Gen5 x16 (LP)
  • 1 x PCIe Gen4 x8 (LP, internal)

    • *Installing GPU cards will occupy expansion slots.
    *GPU SKU do not support OCP3.0
    *RAID/PIKE cable kit required for internal slot support

Front I/O Ports

  • 2 x USB 3.2 Gen1 ports
  • 1 x VGA port

Rear I/O Ports

  • 2 x USB 3.2 Gen1 ports
  • 1 x VGA port
  • 1 x RJ-45 Management LAN Port
  • 2 x 10G or 4 x 1G RJ-45 GbE LAN port (Optional)
  • 1 x OCP3.0 port (Optional)

    • *GPU SKU do not support OCP3.0

Switch/LED

    Front:

  • 1 x Power Switch (w/LED)
  • 1 x Reset Button
  • 1 x Location Switch (w/LED)
  • 1 x HDD Access LED
  • 1 x Message LED
  • LAN 1-4 LED (on NIC module)

    • Rear:

  • 1 x Port 80 LED (Q-Code)
  • 1 x Power Switch w/LED
  • 1 x Location Switch w/LED
  • 1 x Message LED

Power Supply

  • 1+1 Redundant 2000W/1600W 80 PLUS Platinum Power Supply
  • 1+1 Redundant 2600W/1600W 80 PLUS Titanium Power Supply

System Management

  • ASUS Control Center Enterprise(Optional)
  • On-Board ASMB11-iKVM for KVM-over-IP

Chassis

    1U Enclosure

  • 842.5mm x 449mm x 43.85mm/ 33.17" x 17.68" x 1.73"

    • Net Weight:

  • 13.93 kg/30.71 lbs

    • Gross Weight:

  • 18.93 kg/41.73 lbs
