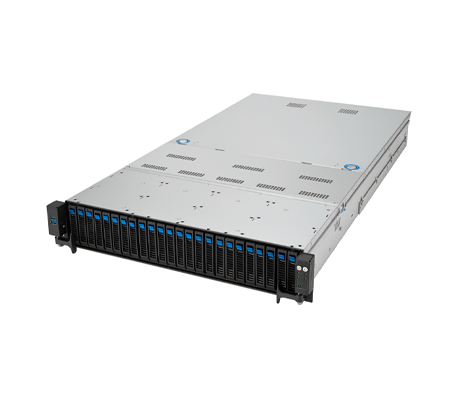

With 24x drive bays up front, the ASUS RS720A-E12-RS24U Server is compatible with NVMe, SATA and SAS drive formats. It supports dual AMD EPYC 9004 series and AMD EPYC with v-Cache Technology processors. CPUs feature 12-channel memory architecture and support 24x DDR5 4800/4400 RDIMM or 3DS RDIMM slots for 1 DIMM per channel. This system can be configured to support up to 3x dual-slot GPUs.
ASUS RS720A-E12-RS24U Server - System Overview
CPUs with a Thermal Design Power (TDP) rating of up to 400W per socket are supported. Of the 24x storage bays in front, up to 16x bays support hot-swap NVMe drives with the remaining 8x drive bays compatible with NVMe, SAS, and SATA drive types. Supported configurations also include all NVMe, all SAS, or all SATA. The ASUS RS720A-E12-RS24U Server does require a RAID card for SAS drive support. There are several different options for PCIe slots with up to 9x PCIe Gen5 slots possible plus an internal RAID slot. If installing GPUs then the OCP 3.0 card slot is not supported. A RAID/PIKE cable kit is required for internal slot support.
PCIe Slot Options:
6 x PCIe Gen5 x8 or 3 x PCIe Gen5 x16 (FHFL)
2 x PCIe Gen5 x8 or 1 x PCIe Gen5 x16 or 1 x OCP3.0 (FHFL)
1 x PCIe Gen5 x16 (LPHL)
1 x PCIe Gen4 x8 (LP, Internal)
This is an adaptable platform that can be configured to support a number of different workloads including AI and high-performance (HPC) workloads with the addition of up to 3x dual-slot GPUs. GPUs supported include the NVIDIA A100 and A40, plus AMD Instinct and Xilinx options. For network connectivity, the RS720A-E12-RS24U can be outfitted with 2x 10GbE or 4x 1GbE LAN modules. An adjacent PCIe 5.0 OCP 3.0 mezzanine card slot can also be installed offering an additional network connectivity port and bandwidth options for greater flexibility.
Infrastructure management is provided by the ASUS ASMB11-iKVM remote control with integrated ASPEED AST2600 module on the motherboard. ASUS Control Center IT Management Software for enterprise systems provides an intuitive HTML-5 interface to manage your network assets from a number of different devices anywhere, at any time. It offers centralized management and automation for a number of common administrative tasks. Licensing is required but it can manage servers, workstations, commercial products, and other brand devices.
ASUS RS720A-E12-RS24U Server - Specifications
Processor- 2 Sockets
AMD EPYC 9004 Series (up to 400W)
4th Generation AMD EPYC Processors with AMD 3D V-Cache technology
2 x Socket SP5 (LGA 6096)
Integrated I/O- No Chipset
Memory
Memory Slots
24x DIMM slots
Maximum 6144GB
12-channel per CPU, 1 DIMM per CPU
RDIMM/3DS RDIMM supported
Memory Type
DDR5 4800/4400 RDIMM/ 3DS RDIMM
Memory Size
128GB, 64GB, 32GB RDIMM
128GB, 64GB, 32GB 3DS RDIMM
Drive Bays
24 x 2.5" Hot-Swap Drive Bays
Support up to 16 x NVMe + 8 x NVMe/SATA/SAS*
2 x M.2 (Up to 2280 from CPU1)
*RAID card is required to support SAS hard drives
LAN
1 x Quad Port Intel I350-AM4 1G LAN Controller or
1 x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller or None
1 x Management Port
Expansion Slots
Up to 9 PCIe Gen5 slots
6 x PCIe Gen5 x8 or 3 x PCIe Gen5 x16 (FHFL)
2 x PCIe Gen5 x8 or 1 x PCIe Gen5 x16 or 1 x OCP3.0 (FHFL)
