The Dell EMC PowerEdge R250 server is a 1U, single-socket machine powered by either an Intel Xeon E-2300 series processor with up to 8 cores or one Intel Pentium processor with up to 2 cores. When 32GB DDR4 UDIMMs are installed in all 4x DIMM slots, it is capable of providing up to 128GB and memory speeds of 3200MT/s. However, the Pentium CPU can only run memory at a maximum speed of 2666MT/s.
Dell EMC PowerEdge R250 Server - System Overview

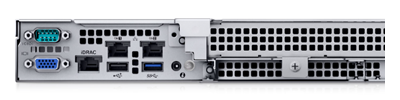

Designed for small to medium sized businesses, this platform is Ideal for file/print, mail/messaging, point of sale, web hosting and collaboration. The front panel of the PowerEdge R250 can hold up to 4x 3.5" SAS/SATA drives or 8x 2.5" SAS/SATA drives. It has 4x different power supply unit (PSU) options including 450W Bronze, 450W Platinum, 700W Titanium AC, or 700W Titanium DC. A total of 2x PCIe slots with 1x PCIe Gen4 x8 supporting a x16 connector and the other supporting a x8 connector are available on the server board. Dell’s iDRAC Direct and OpenManage suite of management tools are some of the programs that can monitor, control, and troubleshoot the components.
Dell EMC PowerEdge R250 Server - Specifications
Processor - 1 Socket
One Intel Xeon E-2300 series processor with up to 8 cores or;
One Intel Pentium processor with up to 2 cores
Memory
4x DDR4 DIMM slots
Supports UDIMM 128 GB max
Speed: Up to 3200MT/s
*NOTE: For Pentium processor, the maximum memory speed is 2666MT/s
Storage
Front Bays
Up to 4 x 3.5-inch hot swap SAS/SATA (HDD/SSD) max 30.72 TB
Up to 2 x 3.5-inch cabled SAS/SATA (HDD/SSD) max 15.36 TB
Up to 4 x 3.5-inch cabled SAS/SATA (HDD/SSD) max 30.72 TB
