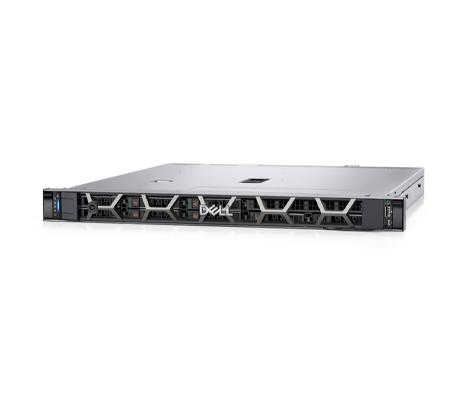

Dell EMC PowerEdge R350 Server

Commonly used for enterprise-level demands on data analysis and virtualization, as well as point-of-sale transactions, the Dell EMC PowerEdge R350 server offers a single Intel Xeon E-2300 processor with up to 8 cores or one Intel Pentium processor with up to 2 cores. This is an entry-level platform that delivers a maximum of 128GB when all 4x DIMM slots are populated by 32GB DDR4 UDIMMs, providing memory speeds of up to 3200MT/s. The maximum memory speed enabled by the Pentium CPU is 2666MT/s. Up to 4x 3.5” SAS/SATA drives or 8x 2.5” SAS/SATA drives can be loaded onto the front panel.

Dell EMC PowerEdge R350 Server - System Overview

With its 1U design, the PowerEdge R350 server has built-in telemetry streaming, thermal management, and RESTful API with Redfish offering streamlined visibility and control for better server management. The system’s motherboard supports a total of 3x PCIe Gen 4 slots with 1x PCIe Gen4 x16 and 1x PCIe Gen4 x8 low-profile, half-length cards. The remaining slot is a x4 PCIe Gen4 x8 connector for a dedicated PowerEdge RAID Controller (PERC) card. This server is designed with a cyber-resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement. With System Erase, administrators can securely and quickly wipe all data including from hard drives, SSDs, and system memory.

Dell EMC PowerEdge R350 server front drive bays

Dell EMC PowerEdge R350 server rear ports

Dell EMC PowerEdge R350 Server - Specifications

Processor - 1 Socket

One Intel Xeon E-2300 series processor with up to 8 cores or;
One Intel Pentium processor with up to 2 cores

Memory

4x DDR4 DIMM slots
Supports UDIMM 128 GB max
Speed: Up to 3200MT/s

Storage

Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB
Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 128 TB

GPU Options

Not Supported

Expansion Slots

1 x8 Gen4 (x16 connector) low profile, half length
1 x8 Gen4 (x8 connector) low profile, half length
1 x4 Gen4 (x8 connector) for dedicated PERC only

Controllers

Internal Controllers: PERC H355, PERC H355f, PERC H345, PERC H345f, H755, H755f, HBA355i, HBA355f, S150
Internal Boot: Internal Dual SD Module or USB or Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs
External PERC (RAID): HBA355e

Ports

1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0

Internal Ports

1 x USB 3.0 (optional)

Rear Ports

1 x USB 2.0
1 x USB 3.0
1 x Serial Port
1 x iDRAC Ethernet Port
1 x VGA

OS Compatibility

Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
VMware ESXi
Citrix Hypervisor
SUSE Linux Enterprise Server

Power Supply

600W Platinum 100-240 VAC or 240 VDC redundant, hot swap

Cooling Options

Up to 4x fans with full redundancy
Air cooling

Management

iDRAC9
iDRAC Service Module
iDRAC Direct
iDRAC RESTful API with Redfish

OpenManage

OpenManage Enterprise
OpenManage Power Manager
OpenManage Support Assist
OpenManage Update Manager

Security

Cryptographically signed firmware
Secure Boot Secure Erase
System Lockdown
Silicon Root of Trust (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Chassis

Height – 42.8 mm (1.68 inches)
Width – 482 mm (18.97 inches)
Depth – 598.94 mm (23.58 inches) with bezel
Depth – 585.3 mm (23.04 inches) without bezel
