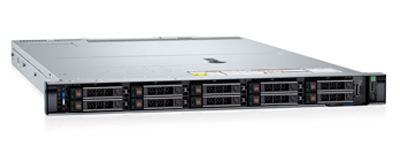

The dual socket, 1U Dell PowerEdge R660xs server offers several storage options including up to 4x 3.5” SAS/SATA HDD/SSD bays or up to 10x 2.5” SAS/SATA/NVMe HDD/SSD bays. On the rear, there are 2x 2.5” SAS/SATA/NVMe HDD/SSD drive bays for more storage or to boot the operating system. All of these components are supported by dual 5th generation Intel Xeon Scalable processors with up to 64 cores per socket. The system is powered by dual hot-swappable, redundant power supplies.
Dell EMC PowerEdge R660xs Server - System Overview
The Dell PowerEdge R660xs server was built to provide the most recent technologies for virtualization, scale-out database, and high-performance compute. With a 2x processor configuration, the PowerEdge R660xs server can support up to 3x PCIe Gen4 slots and up to 2x PCIe Gen5 slots, with dual embedded 1GbE ports in back. It also offers 1x OCP 3.0 networking slot and 1x dedicated PERC slot. A maximum of 1TB of RAM can be loaded into the 16x DDR5 DIMM slots, supporting speeds of up to 4800MT/s and powering the most widely used applications and workloads utilized by enterprises today. The embedded management software, iDRAC 9.0 Direct is embedded and can be utilized to monitor and control the Dell system. Power Supply options include 1800W Titanium, 1400W Platinum, 1100W Titanium, 1100W LVDC, 800W Platinum, 700W Titanium, or 600W Platinum PSUs.
Dell EMC PowerEdge R660xs Server - Specifications
Processor - 2 Socket
Up to 2x 5th Generation Intel Xeon Scalable processors
Up to 2x 4th Generation Intel Xeon Scalable processors
Up to 64 cores per CPU
Memory
16x DDR5 DIMM slots
Supports RDIMM 1TB max
Speed: Up to 4800MT/s
Storage
Front Bays
0 drive bay
Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 80 TB
Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB
Rear Bays
Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.2 TB
GPU Options
Not Supported
Expansion Slots
1 CPU Configuration: Up to 2 PCIe slots (1 x16 Gen4 + 1 x8 Gen5)
2 CPU configuration: Up to 3 PCIe Gen4 slots (1 x16 Gen4 + 2 x8 Gen4) or up to 2 PCIe Gen5 slots (1 x16 Gen5 + 1 x8 Gen5)
Controllers
Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs (cold swap) or USB
External HBA (non-RAID): HBA355e
Software RAID: S160
Ports
Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
1 x VGA
Internal Ports
1 x USB 3.0 (optional)

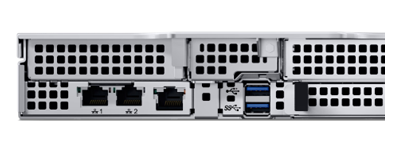

Rear Ports
1 x USB 2.0
1 x USB 3.0
1 x Serial (optional)
1 x dedicated iDRAC Ethernet Port
1 x VGA
OS Compatibility
Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
VMware ESXi
SUSE Linux Enterprise Server
Power Supply
1800 W Titanium 200—240 VAC or 240 HVDC
1400 W Platinum 100—240 VAC or 240 HVDC
1100 W Titanium 100—240 VAC or 240 HVDC
1100 W LVDC -48 — (-60) VDC
800 W Platinum 100—240 VAC or 240 HVDC
700 W Titanium 200—240 VAC or 240 HVDC
600 W Platinum 100—240 VAC or 240 HVDC
Cooling Options
Standard (STD) fans/ high performance Gold (VHP) fans, Up to 7 hot-swappable fans
Air cooling
Management
Embedded/At-the-server
iDRAC9
iDRAC Service Module
iDRAC Direct
iDRAC RESTful API with Redfish
Quick Sync 2 wireless module
OpenManage
CloudIQ for PowerEdge plug in
OpenManage Enterprise
OpenManage Enterprise Integration for VMware vCenter
OpenManage Integration for Microsoft System Center
OpenManage Integration with Windows Admin Center
OpenManage Power Manager Plugin
OpenManage Service Plugin
OpenManage Update Manager Plugin
Security
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
