Dell EMC PowerEdge R750xs Server

Whether you run a small or large business, the Dell PowerEdge R750xs server is built to handle demanding computing workloads with unmatched performance and scalability. Powered by dual 3rd generation Intel Xeon Scalable processors with up to 32 cores each, the system features 16x DIMM slots and can deliver a maximum of up to 1TB of RDIMM RAM at speeds of up to 3200MT/s. This system has a number for storage options supporting SAS, SATA and NVMe. It is designed to deliver enterprise performance for scale-out environments.
Dell EMC PowerEdge R750xs side view
Dell Technologies Authorized Partner Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

Dell EMC PowerEdge R750xs Server - System Overview

Up to 2x double wide 300W NVIDIA A40 or 5x single wide 70W NVIDIA T4 accelerators can be installed on the air-cooled R750xs server. It features PCIe Gen4 and Gen3 compatibility with a maximum of 5x PCIe Gen4 slots and 1x PCIe Gen3 slot. It also supports a single OCP 3.0 slot for additional network options.

The front panel can be configured to support up to 16x 2.5” SAS/SATA drives and a maximum of 8x SFF NVMe HDD or SSD drive bays. On the rear, the 2U chassis supports dual 2.5-inch drive bays that can be configured with SAS, SATA, or NVMe interfaces. This platform is ideal for virtualization, medium VM density or VDI, and software-defined storage node workloads. Power is provided by 600W Platinum Mixed Mode, 800W Platinum Mixed Mode, 1100W Titanium Mixed Mode, or 1400W Platinum Mixed Mode hot-swappable power supply units.

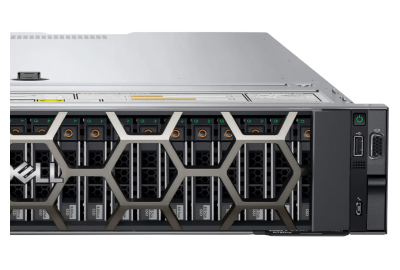

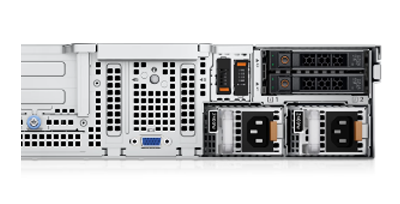

Dell EMC PowerEdge R750xs server front drive bays Dell EMC PowerEdge R750xs server rear ports

Dell EMC PowerEdge R750xs Server - Specifications

Processor - 2 Socket

  • Up to two 3rd Generation Intel Scalable processors
  • Up to 32 Cores per CPU

Memory

  • 16x DDR4 DIMM slots
  • Supports RDIMM 1 TB max
  • Speed: Up to 3200MT/s

Storage

    Front Bays

  • 0 drive bay
  • Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB
  • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB
  • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
  • Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB
  • Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/SSD) max 184.32 TB

    • Rear Bays

  • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB

GPU Options

  • Not Supported

Expansion Slots

    Up to 5 x PCIe Gen4 slots + 1 x PCIe Gen3 slots
  • 3 x16 Gen4 low profile
  • 2 x16 Gen4 low profile (optional)
  • 1 x8 Gen3 (x4 lane) low profile

Controllers

  • Internal Controllers: PERC H345, PERC H355, PERC H745, PERC H755, PERC H755N, HBA355i, S150
  • Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs, USB
  • External PERC (RAID): PERC H840, HBA355e

Network Options

  • 1x OCP x16 mezz 3.0

Ports

    Front Ports

  • 1 x iDRAC Direct (Micro-AB USB) port
  • 1 x USB 2.0
  • 1 x VGA

    • Rear Ports

  • 1 x USB 2.0
  • 1 x USB 3.0
  • 1 x Serial (optional)
  • 2 x Ethernet
  • 1 x VGA

OS Compatibility

  • Canonical Ubuntu Server LTS
  • Microsoft Windows Server with Hyper-V
  • Red Hat Enterprise Linux
  • VMware ESXi
  • Citrix Hypervisor
  • SUSE Linux Enterprise Server

Power Supply

  • 600W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
  • 800W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
  • 1100W Titanium Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
  • 1400W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
  • 1100W -48Vdc hot swap redundant (CAUTION: only works with -48Vdc to -60Vdc power input)

Cooling Options

  • Standard fans/High performance Silver fans/High performance Gold fans
  • Up to six hot swap fans
  • Air cooling

Management

    Embedded/At-the-server

  • iDRAC9
  • iDRAC Service Module
  • iDRAC Direct
  • Quick Sync 2 wireless module

OpenManage

  • OpenManage Enterprise
  • OpenManage Power Manager
  • OpenManage Support Assist
  • OpenManage Update Manager

Security

  • Cryptographically signed firmware
  • Secure Boot Secure Erase
  • System Lockdown
  • Silicon Root of Trust (requires iDRAC9 Enterprise or Datacenter)
  • TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Chassis

  • Height – 86.8 mm (3.41 inches)
  • Width – 482 mm (18.97 inches)
  • Depth – 707.78 mm (27.85 inches)- without bezel
  • Depth – 721.62 mm (28.4 inches)- with bezel

Dell EMC PowerEdge R750xs Server - Documentation

Dell EMC PowerEdge R750xs Specifications Sheet Dell EMC PowerEdge R750xs Technical Guide The Integrated Dell Remote Access Controller 9 (iDRAC9) with Lifecycle Controller – DataSheet
