Dell EMC PowerEdge R760xs Server

The 16-bay Dell PowerEdge R760xs server supports PCIe Gen5 technology and a large storage capability. This dual-socket system is commonly used for popular applications including virtual desktop infrastructure (VDI), virtual machines, and software-defined storage. It can be configured with 2x 5th generation Intel Xeon Scalable processors with up to 64 cores per socket. These CPUs support 16x DDR5 memory module slots for a maximum capacity of 1TB RAM. Memory speeds of up to 4800MT/s are supported. Additionally, two 75W single-width, low-profile GPUs can be installed on the system board.

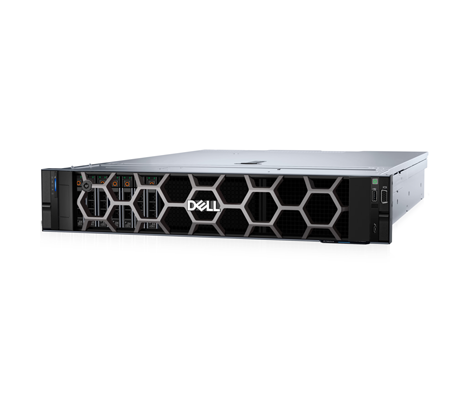

Dell EMC PowerEdge R760xs side view
Dell Technologies Authorized Partner Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

Dell EMC PowerEdge R760xs Server - System Overview

Dell EMC PowerEdge R760xs server front drive bays

The air-cooled 2U chassis has variable storage options and can provide up to 12x 3.5” SAS/SATA HDDs/SSDs or up to 16x 2.5” SAS/SATA HDD/SSDs plus up to 8x NVMe drives. It can also be loaded with an additional 2x 2.5” SAS, SATA or NVMe drives on the rear, depending on the drive configuration. It can improve data throughput and reduce latency with support for up to 8x I/O devices including 2x PCIe Gen5 x16 slots, 3x PCIe Gen4 x16 slots, and 1x PCIe Gen4 x8 slot. It also offers 1x OCP 3.0 networking slot and 1x dedicated PERC slot. The Dell OpenManage Enterprise console can be used with iDRAC to consolidate, automate, and simplify one-to-many management.

Dell EMC PowerEdge R760xs server rear ports

Dell EMC PowerEdge R760xs Server - Specifications

Processor - 2 Socket

  • Up to 2x 5th Generation Intel Xeon Scalable processors
  • Up to 2x 4th Generation Intel Xeon Scalable processors
  • Up to 64 cores per CPU

Memory

  • 16x DDR5 DIMM slots
  • Supports RDIMM 1TB max
  • Speed: Up to 4800MT/s

Storage

    Front Bays

  • 0 drive bay
  • Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB
  • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB
  • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
  • Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 121.6 TB
  • Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/ SSD) max 244.48 TB

    • Rear Bays

  • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
    • *Supported only with 12 x 3.5-inch SAS/SATA HDD/SSD configuration

GPU Options

  • 2 x 75 W SW, LP

Expansion Slots

  • 1 CPU Configuration: Up to 4 PCIe slots (2 x8 Gen5, 1 x16 Gen4, 1 x8 Gen4)
  • 22 CPU configuration: Up to 6 PCIe slots (2 x16 Gen5, 3 x16 Gen4, 1 x8 Gen4)

Controllers

  • Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
  • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs or USB
  • External HBA (non-RAID): HBA355e
  • Software RAID: S160

Ports

    Front Ports

  • 1 x iDRAC Direct (Micro-AB USB) port
  • 1 x USB 2.0
  • 1 x VGA

    • Internal Ports

  • 1 x USB 3.0 (optional)

    • Rear Ports

  • 1 x USB 2.0
  • 1 x USB 3.0
  • 1 x Serial (optional)
  • 1 x dedicated iDRAC Ethernet Port
  • 1 x VGA

OS Compatibility

  • Canonical Ubuntu Server LTS
  • Microsoft Windows Server with Hyper-V
  • Red Hat Enterprise Linux
  • VMware ESXi
  • SUSE Linux Enterprise Server

Power Supply

  • 1800 W Titanium 200—240 VAC or 240 HVDC
  • 1400 W Platinum 100—240 VAC or 240 HVDC
  • 1100 W Titanium 100—240 VAC or 240 HVDC
  • 1100 W LVDC -48 — (-60) VDC
  • 800 W Platinum 100—240 VAC or 240 HVDC
  • 700 W Titanium 200—240 VAC or 240 HVDC
  • 600 W Platinum 100—240 VAC or 240 HVDC

Cooling Options

  • Standard (STD) fans/High performance Silver (HPR) fans/ High performance Gold (VHP) fans
  • Up to 6 hot swappable fans
  • Air cooling

Management

  • iDRAC9
  • iDRAC Service Module
  • iDRAC Direct
  • iDRAC RESTful API with Redfish
  • Quick Sync 2 wireless module

OpenManage

  • CloudIQ for PowerEdge plug in
  • OpenManage Enterprise
  • OpenManage Enterprise Integration for VMware vCenter
  • OpenManage Integration for Microsoft System Center
  • OpenManage Integration with Windows Admin Center
  • OpenManage Power Manager Plugin
  • OpenManage Service Plugin
  • OpenManage Update Manager Plugin

Security

  • Cryptographically signed firmware
  • Data at Rest Encryption (SEDs with local or external key mgmt)
  • Secure Boot Secure Erase
  • Secured Component Verification (Hardware integrity check)
  • Silicon Root of Trust
  • System Lockdown(requires iDRAC9 Enterprise or Datacenter)
  • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Chassis

  • Height – 86.8 mm (3.41 inches)
  • Width – 482 mm (18.97 inches)
  • Depth – 721.62 mm (28.4 inches) with bezel
  • Depth – 707.78 mm (27.85 inches) without bezel

Dell EMC PowerEdge R760xs Server - Documentation

Dell EMC PowerEdge R760xs Specifications Sheet Dell EMC PowerEdge R760xs Technical Guide Dell EMC PowerEdge Rack Servers Quick Reference Guide Dell EMC PowerEdge R760xs Installation and Service Manual
