The 16-bay Dell PowerEdge R760xs server supports PCIe Gen5 technology and a large storage capability. This dual-socket system is commonly used for popular applications including virtual desktop infrastructure (VDI), virtual machines, and software-defined storage. It can be configured with 2x 5th generation Intel Xeon Scalable processors with up to 64 cores per socket. These CPUs support 16x DDR5 memory module slots for a maximum capacity of 1TB RAM. Memory speeds of up to 4800MT/s are supported. Additionally, two 75W single-width, low-profile GPUs can be installed on the system board.

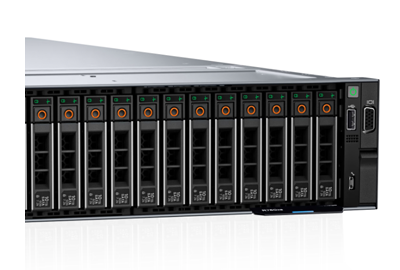

Dell EMC PowerEdge R760xs Server - System Overview
The air-cooled 2U chassis has variable storage options and can provide up to 12x 3.5” SAS/SATA HDDs/SSDs or up to 16x 2.5” SAS/SATA HDD/SSDs plus up to 8x NVMe drives. It can also be loaded with an additional 2x 2.5” SAS, SATA or NVMe drives on the rear, depending on the drive configuration. It can improve data throughput and reduce latency with support for up to 8x I/O devices including 2x PCIe Gen5 x16 slots, 3x PCIe Gen4 x16 slots, and 1x PCIe Gen4 x8 slot. It also offers 1x OCP 3.0 networking slot and 1x dedicated PERC slot. The Dell OpenManage Enterprise console can be used with iDRAC to consolidate, automate, and simplify one-to-many management.
Dell EMC PowerEdge R760xs Server - Specifications
Processor - 2 Socket
Up to 2x 5th Generation Intel Xeon Scalable processors
Up to 2x 4th Generation Intel Xeon Scalable processors
Up to 64 cores per CPU
Memory
16x DDR5 DIMM slots
Supports RDIMM 1TB max
Speed: Up to 4800MT/s
Storage
Front Bays
0 drive bay
Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB
Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB
Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 121.6 TB
Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/ SSD) max 244.48 TB
Rear Bays
Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
*Supported only with 12 x 3.5-inch SAS/SATA HDD/SSD configuration
GPU Options
2 x 75 W SW, LP
Expansion Slots
1 CPU Configuration: Up to 4 PCIe slots (2 x8 Gen5, 1 x16 Gen4, 1 x8 Gen4)
22 CPU configuration: Up to 6 PCIe slots (2 x16 Gen5, 3 x16 Gen4, 1 x8 Gen4)
Controllers
Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs or USB
External HBA (non-RAID): HBA355e
Software RAID: S160
Ports
Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
1 x VGA
Internal Ports
1 x USB 3.0 (optional)
Rear Ports
1 x USB 2.0
1 x USB 3.0
1 x Serial (optional)
1 x dedicated iDRAC Ethernet Port
1 x VGA
OS Compatibility
Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
VMware ESXi
SUSE Linux Enterprise Server
Power Supply
1800 W Titanium 200—240 VAC or 240 HVDC
1400 W Platinum 100—240 VAC or 240 HVDC
1100 W Titanium 100—240 VAC or 240 HVDC
1100 W LVDC -48 — (-60) VDC
800 W Platinum 100—240 VAC or 240 HVDC
700 W Titanium 200—240 VAC or 240 HVDC
600 W Platinum 100—240 VAC or 240 HVDC
Cooling Options
Standard (STD) fans/High performance Silver (HPR) fans/ High performance Gold (VHP) fans
Up to 6 hot swappable fans
Air cooling
Management
iDRAC9
iDRAC Service Module
iDRAC Direct
iDRAC RESTful API with Redfish
Quick Sync 2 wireless module
OpenManage
CloudIQ for PowerEdge plug in
OpenManage Enterprise
OpenManage Enterprise Integration for VMware vCenter
OpenManage Integration for Microsoft System Center
OpenManage Integration with Windows Admin Center
OpenManage Power Manager Plugin
OpenManage Service Plugin
OpenManage Update Manager Plugin
Security
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
