Dell EMC PowerEdge T150 Tower Server

Users can take advantage of the 4x internal 3.5-inch cabled SAS/SATA HDD/SSDs, as well as the slim 9.5-mm SATA DVD-ROM drive or DVD+/-RW drive located on the front panel. Powered by a single Intel Xeon E-2300 series processor with up to 8 cores or 1x Intel Pentium CPU with up to 2 cores, the Dell EMC PowerEdge T150 tower server delivers powerful computing for small business applications. The system streamlines productivity by supporting 4x DDR4 UDIMMs with up to 128GB max and speeds of up to 3200MT/s. Pentium processors are limited to 2666 MT/s. Through USB connections, external optical drives can be attached.
Dell PowerEdge T150 side view
Dell Technologies Authorized Partner Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

Dell EMC PowerEdge T150 Tower Server - System Overview

Ideal for small to mid-sized businesses, mail, messaging, file, and more, the PowerEdge T150 tower offers 4x PCIe Gen3 or Gen4 slots with full-height, half-length form factors. This 4U mini tower server is powered by either a cabled 300W Bronze PSU or 400W Platinum PSU. As an option, the system will supoprt a Boot Optimized Storage Subsystem with dual M.2 drives in a hardware RAID. It can be managed by Dell’s OpenManage software suite or iDRAC’s embedded management software to control the system’s hardware, both at-chassis and remotely.

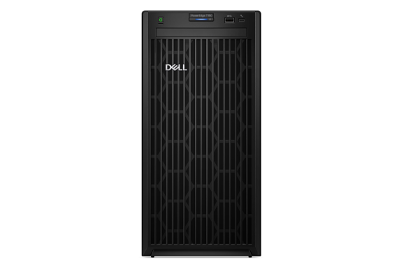

Dell PowerEdge T150 server frontDell PowerEdge T150 server rear

Dell EMC PowerEdge T150 Tower Server - Specifications

Processor - 1 Socket

  • One Intel Xeon E-2300 series processor with up to 8 cores or one Intel Pentium processor with up to 2 cores

Memory

  • 4x DDR4 DIMM slots
  • Supports UDIMM 128 GB max
  • Speed: Up to 3200MT/s
  • For Pentium processor, maximum memory speed supported is 2666 MT/s

Storage

  • 4 x 3.5-inch cabled SAS/SATA (HDD/SSDs)

GPU Options

  • NONE

Expansion Slots

    4 PCIe slots:
  • 1x16 Gen4 (x16 connector) full height, half length
  • 1x4 Gen4 (x8 connector) full height, half length
  • 1x4 Gen3 (x8 connector) full height, half length
  • 1x1 Gen3 (x1 connector) full height, half length

Controllers

  • Internal Controllers: PERC H755, PERC H345, HBA355i, S150
  • IInternal Boot: USB, Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs
  • External HBAs (non-RAID): HBA355e

Ports

    Front Ports

  • 1 x iDRAC Direct (Micro-AB USB) port
  • 1 x USB 3.0

    • Internal Ports

  • 1 x USB 3.0 (optional)

    • Rear Ports

  • 1 x iDRAC ethernet port
  • 5 x USB 2.0
  • 1 x USB 3.0
  • 1 x Serial port
  • 1 x VGA

OS Compatibility

  • Canonical Ubuntu Server LTS
  • Citrix Hypervisor
  • Microsoft Windows Server with Hyper-V
  • Red Hat Enterprise Linux
  • VMware ESXi (support only from Dec'21)
  • SUSE Linux Enterprise Server

Power Supply

  • 300W Bronze 100-240 VAC, cabled
  • 400W Platinum 100-240 VAC, cabled (available only from Dec’21)

Cooling Options

  • 1x cabled fan
  • Air cooling

Management

  • iDRAC9
  • iDRAC Service Module
  • iDRAC Direct
  • iDRAC RESTful API with Redfish

OpenManage

    Integrations
  • BMC Truesight
  • VMware vCenter and vRealize Operations Manager
  • Microsoft System Center
  • Red Hat Ansible Modules
    • Connections
  • IBM Tivoli Netcool/OMNIbus
  • IBM Tivoli Network Manager IP Edition
  • Micro Focus Operations Manager
  • Nagios Core
  • Nagios XI

Security

  • Cryptographically signed firmware
  • Secure Boot Secure Erase
  • Silicon Root of Trust
  • System Lockdown(requires iDRAC9 Enterprise or Datacenter)
  • TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Chassis

  • Height – 360 mm (14.17 inches)
  • Width – 175 mm (6.88 inches)
  • Depth – 453.75 mm (17.86 inches) with bezel

Dell EMC PowerEdge T150 Tower Server - Documentation

Dell PowerEdge T150 Specifications Sheet Dell PowerEdge T150 Technical Guide Dell PowerEdge Rack Servers Quick Reference Guide Dell PowerEdge T150 Installation and Service Manual
