Dell EMC PowerEdge T350 Tower Server

The 4.5U tower server supports up to 8x front 3.5-inch SAS/SATA HDD or SSD drives, but can also deliver 2.5-inch drive support. Powered by 1x Intel Xeon E-2300 Series processor with up to 8 cores, the single-socket Dell EMC PowerEdge T350 tower server can also be outfitted with a single Intel Pentium processor with up to 2 cores. It supports 4x 32 GB DDR4UDIMMs up to 128 GB for workloads requiring a lot of memory, and supports speeds of 3200 MT/s. For Pentium processors, the maximum memory speed supported is 2666 MT/s. The front panel also supports an optional optical drive.

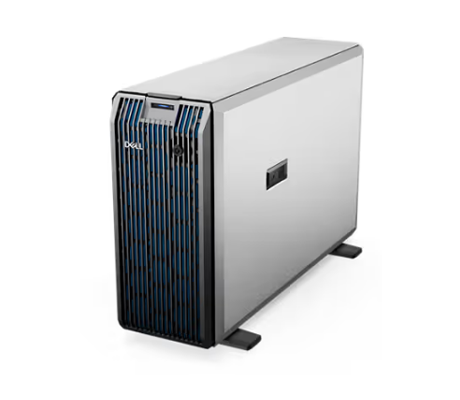

Dell PowerEdge T350 side view
Dell Technologies Authorized Partner Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

Dell EMC PowerEdge T350 Tower Server - System Overview

Dell PowerEdge T560 server front Dell PowerEdge T560 server rear

The PowerEdge T350 handles mission-critical business workloads, such as database administration, cloud infrastructure, and point-of-sale transactions. To administer the system's hardware both locally and remotely, users can deploy OpenManage or use the embedded management software iDRAC. GPUs are not supported but 2x Gen 4 PCIe slots and 2x Gen 3 PCIe slots can be populated for more network controller options aside from the 2x 1 GbE LOM ports. This system also supports an optional Boot Optimized Storage Subsystem (BOSS) or a dual SD module for support of the OS. The following power supplies are offered on this system:

  • 450 W Bronze (cabled) AC/100 - 240 V
  • 600 W Platinum AC/100 - 240 V
  • 600 W DC/240 V
  • 700 W Titanium AC/100 - 240 V
  • 700 W DC/240 V

Dell EMC PowerEdge T350 Tower Server - Specifications

Processor - 1 Socket

  • 1x Intel Xeon E-2300 Series processor with up to 8 cores, or Intel Pentium processors with up to 2 cores

Memory

  • 4x DDR4 DIMM slots
  • Supports UDIMM 128GB max
  • Speed: Up to 3200MT/s

*NOTE: For Pentium processor, maximum memory speed supported is 2666MT/s

Storage

    Front bays:
  • Up to 4 x 3.5-inch SAS/SATA HDD/SSD drives
  • Up to 8 x 3.5-inch SAS/SATA HDD/SSD drives

*NOTE: Supports 2.5-inch drive in 3.5-inch hybrid drive carrier

Expansion Slots

  • 2 x Gen 4 PCIe slots
  • 2 x Gen 3 PCIe slot

Controllers

  • Internal Controllers (RAID): PERC H755, PERC H355, PERC H345, HBA355i, S150
  • Internal Boot: Internal Dual SD Module or Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs or internal USB 3.0
  • External HBA (non-RAID): PERC HBA355e
  • External PERC (RAID): N/A

Ports

    Front Ports

  • 1 x USB 3.0
  • 1 x Dedicated iDRAC Direct (Micro-AB USB) port

    • Rear Ports

  • 1 x Dedicated iDRAC (RJ45) port
  • 1 x Serial
  • 1 x VGA
  • 5 x USB 2.0
  • 1 x USB 3.0

OS Compatibility

  • Canonical Ubuntu Server LTS
  • Microsoft Windows Server with Hyper-V
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise Server
  • VMware ESXi

Power Supply

  • 450 W Bronze (cabled) AC/100 - 240 V
  • 600 W Platinum AC/100 - 240 V
  • 600 W DC/240 V
  • 700 W Titanium AC/100 - 240 V
  • 700 W DC/240 V

Cooling Options

  • System fan
  • 1x Non hot-swap fan
  • Air cooling

Management

  • iDRAC9
  • iDRAC Direct
  • iDRAC RESTful API with Redfish
  • iDRAC Service Module

Security

  • Cryptographically signed firmware
  • Secure Boot
  • Secure Erase
  • Silicon Root of Trust
  • System Lockdown (requires iDRAC9 Enterprise or Datacenter)
  • TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Chassis

  • Height – 382.5 mm (15.06 inches)
  • Width – 175 mm (6.89 inches)
  • Depth – 581.12 mm (22.88 inches) with bezel

Dell EMC PowerEdge T350 Tower Server - Documentation

Dell PowerEdge T350 Specifications Sheet Dell PowerEdge T350 Technical Guide Dell PowerEdge Rack Servers Quick Reference Guide
