The Dell EMC PowerEdge T40 tower server is a dependable, entry-level system based on the Intel socket LGA1151. It features a single Intel Xeon E-2224G processor with up to 4x cores per CPU and a TDP of up to 71W. Compared to the previous generation, this CPU has 25% faster data transfer speed, a faster CPU speed, and a 27% faster turbo speed that will improve the IO performance and hardware-enhanced security, plus allow for premium 4K content. The system has 4x memory sockets with 2x memory channels supported by the CPU, for a total of 64GB when all slots are populated with UDIMMs. The minimum system population is one 8GB DIMM. Memory will run at speeds of up to 2666MT/s.
Dell EMC PowerEdge T40 Tower Server - System Overview

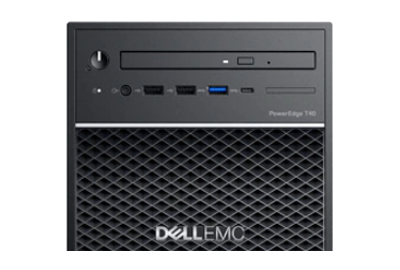

On the front panel, there is a slim 9.5-mm SATA DVD-ROM drive or DVD+/-RW drive. External optical drives can be connected through USB ports. Under the hood, the tower supports up to 3x PCIe Gen3 full-height, half-length slots. The one-socket PowerEdge T40 tower server is powered by a single, cabled 300W Bronze power supply with auto sensing. This PSU unit will provide power to the system board and up to 3x internal 3.5-inch cabled SATA drives. The chassis also includes an Intel Xeon E processor-compatible Intel UHD Graphics P630 video card.
Dell EMC PowerEdge T40 Tower Server - Specifications
Processor - 1 Socket
Up to 1x Intel Xeon E-2224G with up to 4 cores per processor
Memory
4x DDR4 DIMM slots
Supports UDIMM 64 GB max
Speed: Up to 2666MT/s
Storage
3x 3.5-inch cabled SATA (HDD)
Expansion Slots
Slot 1 : PCIe Gen3 x16 (x16 Connector) - FH/HL
Slot 2 : PCI - FH/HL from PCH
Slot 3 : PCIe Gen3 x4 (x4 Connector) - FH/HL( Open ended) , from PCH
Slot 4 : PCIe Gen3 x4 (x4 Connector) - FH/HL( Open ended) , from PCH
Controllers
Software RAID: Intel RSTe 4.7
Ports
Front Ports
2 x USB 2.0
2 x USB 3.1
Rear Ports
2 x PS2
2 x DisplayPorts
1 x Serial
1 x Audio
2 x USB 2.0
4 x USB 3.1
OS Compatibility
Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
Windows Server 2019
Windows Server 2016
Ubuntu Server 18.04 LTS
Power Supply
300W Bronze
Cooling Options
1x cabled fan
Air cooling
Management
Intel Active Management Technology 12.0
Security
Cryptographically signed firmware
Intel® SGX (Software Guard Extensions)
Secure Boot
TPM 2.0
Chassis
Height: 335.0mm (13.2”)
Width: 176.53mm (7.0”)
Depth: 359.50mm (14.2”)
Weight: 8.0Kg (17.6lbs)
Dell EMC PowerEdge T40 Tower Server - Documentation
