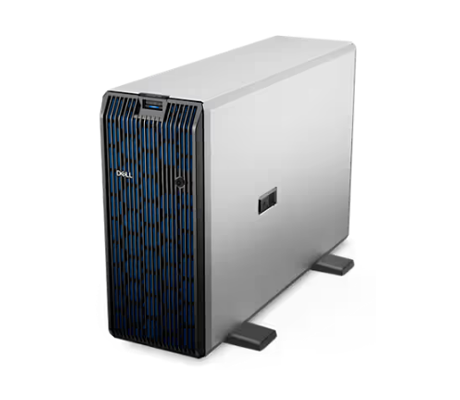

Dell EMC PowerEdge T550 Tower Server

This 5U system is designed to take on data-intensive workloads such as virtualization, databases and analytics, AI, and inferencing. There are various storage configurations that line the front of the Dell EMC PowerEdge T550 tower server chassis with drive bay options including SAS, SATA, and NVMe. This is a 2-socket system powered by 3rd generation Intel Xeon Scalable processors, with up to 36 cores per socket. With support for 16x DDR4 memory module slots, it can be outfitted with a maximum memory capacity of up to 1TB offering memory speeds of up to 3200MT/s.

Dell EMC PowerEdge T550 Tower Server - System Overview

The air-cooled PowerEdge T550 tower server offers up to 6x PCIe x16 Gen4 slots, 1x OCP 3.0 slot, and 2x 1GbE LOM ports. It balances expandability and performance and offers advanced technologies such as accelerators to address enterprise-class workloads. In order to handle enterprise-class workloads, it provides cutting-edge technology like accelerators and establishes a balance between expandability and performance. Up to 2x double-wide 300W NVIDIA A40, or 5x single-wide 70W NVIDIA T4 accelerators can be loaded onto the system board. The T550 tower features the following drive bay configurations.

Up to 8 x 2.5-inch SAS/SATA (HDD) max 120 TB
Up to 16 x 2.5-inch SAS/SATA (HDD) max 240 TB
Up to 24 x 2.5-inch SAS/SATA (HDD) max 360 TB
Up to 8 x 3.5-inch SAS/SATA (HDD/SAS) max 120 TB
Up to 8 x 3.5-inch SAS/SATA (HDD) + 8 x 2.5-inch NVMe (SSD) max 240 TB

Dell EMC PowerEdge T550 Tower Server - Specifications

Processor - 2 Sockets

Up to 2x 3rd Generation Intel Xeon Scalable processors with up to 36 cores per processor

Memory

16x DDR4 DIMM slots
Supports RDIMM 1TB max
Speed: Up to 3200MT/s

Storage

Up to 8 x 2.5-inch SAS/SATA (HDD)
Up to 16 x 2.5-inch SAS/SATA (HDD)
Up to 24 x 2.5-inch SAS/SATA (HDD) max 360 TB
Up to 8 x 3.5-inch SAS/SATA (HDD/SAS)
Up to 8 x 3.5-inch SAS/SATA (HDD) + 8 x 2.5-inch NVMe (SSD)

Expansion Slots

Up to 6x PCIe Gen4 slots

Controllers

Internal controllers: HBA345, PERC H345, PERC H355, PERC H745, PERC H755, S150, H755N, HBA355i
Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs, USB
External HBA (non-RAID): PERC HBA355e
External PERC (RAID): PERC H840

Ports

1 x USB 2.0
1 x USB 3.0
1 x Dedicated iDRAC Direct (Micro-AB USB) port

Rear Ports

1 x Dedicated iDRAC (RJ45) port
1 x Serial (optional)
1 x VGA
2 x Ethernet
1 x USB 2.0
1 x USB 3.0

OS Compatibility

Canonical Ubuntu Server LTS
Citrix Hypervisor
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi

Power Supply

600 W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
700 W Titanium Mixed Mode (200-240Vac or 240Vdc) hot swap redundant
800 W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
1100 W -48Vdc hot swap redundant (CAUTION: only works with -48Vdc to -60Vdc power input)
1100 W Titanium Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
1400 W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
1800 W Titanium Mixed Mode (200-240Vac or 240Vdc) hot swap redundant
2400 W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant

Cooling Options

Standard (STD) fans/High performance (HPR) silver fans
Up to 8x hot swap fans
Air cooling

Management

iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module
Quick Sync 2 Wireless Module

Security

Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Chassis

Height – 459.0 mm (18.07 inches)
Width – 200.0 mm (7.87 inches)
Depth – 663.5 mm (26.12 inches) – without bezel
Depth – 680.5 mm (26.79 inches) – with bezel
