Built for conditions at the edge, the 1U, 4-bay Dell EMC PowerEdge XR11 server is built to withstand extreme environments and industrial applications. The ruggedized system is MIL-STD, NEBS, and Marine compliant at only 16 inches deep. It features 4x 2.5-inch SATA/SAS/NVMe SSD front storage bays and can accommodate a single 3rd generation Intel Xeon Scalable processor with up to 36 cores. This system can be outfitted with 8x DDR4 memory modules for up to 512GB when using RDIMMs or up to 1TB of RAM when using LRDIMMs. Mmeory speeds of up to 3200MT/s can be achieved. Up to 4x Intel Optane PMem 200 series modules can also be utilized for a maximum of 512GB.

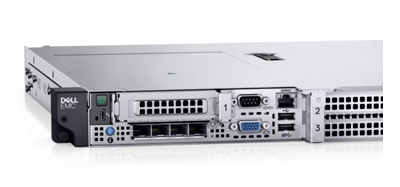

Dell EMC PowerEdge XR11 Server - System Overview
Ideal for telecommunications, military, retail, and restaurants, the PowerEdge XR11 server offers 2x 70W single-width GPUs. Conditions like extreme temperatures, shock, vibration, and dust are no match for this system. The air-cooled chassis has 6x cold-swap fans that keep all of the components at operational temaperatures. It has 4x 25GbE SFP+ LOM and 3x PCIe Gen4 slots. A number of power supply options include 1400W Platinum, 1100W DC, or 800W Platinum PSUs.
Dell EMC PowerEdge XR11 Server - Specifications
Processor - 1 Socket
1x 3rd Generation Intel Xeon Scalable processor
Up to 36 cores per CPU
Memory
8x DDR4 DIMM slots
Supports RDIMM 512GB max
Supports LRDIMM 1TB max
Speed: Up to 3200MT/s
Up to 4x Intel Optane PMem 200 Series slots, 512 GB max
Storage
4 x 2.5-inch SATA/SAS/NVMe (SSDs) max 61.44 TB
GPU Options
2 x 70 W SW
Expansion Slots
3 x PCIe Gen4 slots
Controllers
Internal Controllers: PERC H755, S150
Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 SSDs or USB
External PERC (RAID): PERC H840
12 Gbps SAS HBAs (non-RAID): internal- HBA355i, external-HBA355e
Ports
Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
Internal Ports
1 x USB 3.0
Rear Ports
1 x USB 2.0
1 x USB 3.0
1 x Serial (optional)
1 x dedicated iDRAC Ethernet Port
1 x VGA
OS Compatibility
Canonical Ubuntu Server LTS
Citrix Hypervisor
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
VMware ESXi
SUSE Linux Enterprise Server
RHEL Realtime
Power Supply
1400 W Platinum AC/240 HVDC
1100 W LVDC -48 — (-60) VDC
800 W Platinum AC/240 HVDC
Cooling Options
Very high performance up to 6x cold swap fans
Air cooling
Management
iDRAC9
iDRAC Service Module
iDRAC Direct
OpenManage
OpenManage Enterprise
OpenManage Power Manager Plugin
OpenManage SupportAssist Plugin
OpenManage Update Manager Plugin
Security
Cryptographically signed firmware
Secure Boot Secure Erase
Silicon Root of Trust
System Lockdown(requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
If you know what you want but can't find the exact configuration you're looking for, have one of our knowledgeable sales staff contact you. Give us a list of the components you would like to incorporate into the system, and the quantities, if more than one. We will get back to you immediately with an official quote.
