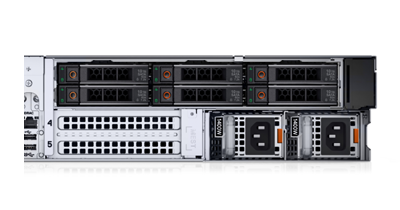

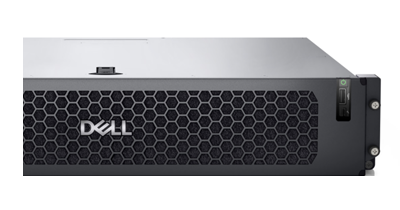

Built for challenging environments, Dell’s ruggedized line of servers like the 2U Dell EMC PowerEdge XR12 system offers no-compromise capabilities for space-constrained, rugged conditions. The 6-bay chassis supports 2.5” SATA/SAS/NVMe SSD drive bays on the front panel. It features a single third-generation Intel Xeon Scalable processor that can support up to 36 cores. At only 16 inches deep, the platform complies with MIL-STD, NEBS, and Marine standards. Up to 2x 75W or 150W single-width GPUs or 2x 300W double-width, full-height, full-length GPUs can be mounted on the server board.
Dell EMC PowerEdge XR12 Server - System Overview
Either Registered (RDIMM) or Load-Reduced (LRDIMM) memory modules are supported in the 8x DDR4 DIMM slots. RDIMMs provide a maximum of 512GB, meanwhile LRDIMMs support up to 1TB of RAM. Up to 4x Intel Optane PMem 200 series modules can also be utilized for a maximum capacity of 512GB. The system is powered by a variety of power supply options, including 1400W Platinum, 1100W DC, 1100W Titanium, 800W Platinum, or 800W DC PSUs. The PowerEdge XR12 also supports 4x 25GbE SFP+ LOM and 5 x PCIe Gen4 slots. Improved control over this server is made possible by built-in temperature management, telemetry streaming, and RESTful API with Redfish. This machine can be utilized for telecommunications, military, retail, and restaurants with extreme temperatures, vibration, dust, and more.
Dell EMC PowerEdge XR12 Server - Specifications
Processor - 1 Socket
1x 3rd Generation Intel Xeon Scalable processor
Up to 36 cores per CPU
Memory
8x DDR4 DIMM slots
Supports RDIMM 512GB max
Supports LRDIMM 1TB max
Speed: Up to 3200MT/s
Up to 4x Intel Optane PMem 200 Series slots, 512 GB max
Storage
6 x 2.5-inch SATA/SAS/NVMe (SSDs) max 92 TB
GPU Options
2 x 75 W/150 W (SW)
2 x 300 W (DW/FH/FL)
Expansion Slots
5 x PCIe Gen4 slots
Controllers
Internal Controllers: PERC H755, PERC H345, S150
Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 SSDs or USB
External PERC (RAID): PERC H840
12 Gbps SAS HBAs (non-RAID): internal- HBA355i, external-HBA355e
Ports
Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
Internal Ports
1 x USB 3.0
Rear Ports
1 x USB 2.0
1 x USB 3.0
1 x Serial (optional)
1 x dedicated iDRAC Ethernet Port
1 x VGA
OS Compatibility
Canonical Ubuntu Server LTS
Citrix Hypervisor
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
VMware ESXi
SUSE Linux Enterprise Server
RHEL Realtime
Power Supply
1400 W Platinum AC/240 HVDC
1100 W LVDC -48 — (-60) VDC
1100 W. Titanium Mixed Mode AC/100-240 V DC/240 V
800 W Platinum AC/240 HVDC
800 W DC/-48 (-40 - (-72) )V
Cooling Options
High performance GOLD- up to 6x cold swap fans
Air cooling
Management
iDRAC9
iDRAC Service Module
iDRAC Direct
OpenManage
OpenManage Enterprise
OpenManage Power Manager Plugin
OpenManage SupportAssist Plugin
OpenManage Update Manager Plugin
Security
Cryptographically signed firmware
Secure Boot Secure Erase
Silicon Root of Trust
System Lockdown(requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
