Dell PowerEdge C6520 Server Node

Up to 4x of these dual-socket, 15th generation, Dell PowerEdge C6520 Server nodes can be installed into the 2U Dell PowerEdge C6400 chassis. Each node supports 2x 3rd generation Intel Xeon Scalable CPUs with up to 40 cores, each. With 16x DDR4 DIMM slots on the system board it can be outfitted with up to 1TB of Registered DIMMs, or up to 2TB using Load-Reduced DIMMs. It supports several different PERC controllers providing access to either 3x or 6x up-front drive bays depending on if the C6400 chassis is configured with 12x 3.5-inch or 24x 2.5-inch drive bays.
Shop Now
Dell PowerEdge C6520 Server Node front view
Dell Technologies Authorized Partner Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Shop Now

Dell PowerEdge C6520 Server Node - System Overview

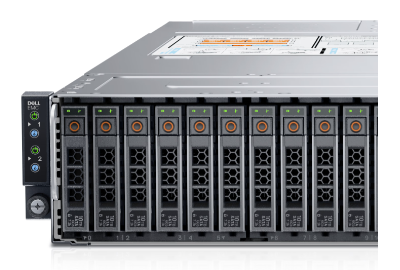

dell c6400 chassis front

Designed for applications in the cloud or data center, the Dell PowerEdge C6520 server offers a compute-dense platform that can provide up to 4x separate server nodes and up to 8x CPUs in a 2U C6400 chassis. It can also support High-performance computing (HPC) applications, plus web tech, and Everything as a Service, also known as XaaS a service provider. With 3rd generation Intel Xeon Scalable processors memory speed will run at up to 3200MT/s. CPUs with a TDP of up to 270W are supported and can provide up to 40 physical cores and 80 virtual threads using Platinum processors. 2x 24x bay backplane configurations. One configuration provides for all NVMe storage devices with no SAS or SATA support with 6x drives assigned to each sled. An alternate backplane configuration offers 16x – 20x SAS/SATA drives or one with 8x NVMs drives with each sled assigned 4x SAS/SATA and 2x NVMe drives. Lastly a 3.5-inch backplane supporting SAS, SATA, and NVMe drive formats with 3x drives assigned per node or a diskless no backplane model. The C620 chipset provides support to the PCIe single x8 slot that can be used for an M.2 SATA boot device to support the OS with 2x M.2 drives in mirror mode for redundancy, preserving the up-front drive bays.

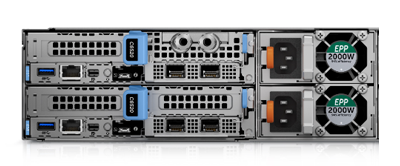

dell C6520 server rear

4x PCIe 4.0 slots provide expansion options with three x16 slots, including an OCP 3.0 slot, and a single x8 slot for the M.2 boot device. The front of the C6400 chassis has an on/off button, which doubles as a status LED indicator. An information LED for each of the 4x nodes is located just below the power on/off button. Managing each Dell C6520 server sled is the integrated Dell Remote Access Controller or iDRAC 9.0 with LifeCycle Controller. iDRAC can be used to manage each sled individually through a standard browser window using the dedicated iDRAC RJ45 port on the back of the system. This system can also be managed in the data center using Dell’s OpenManage system management portfolio, which can manage groups of servers. Power is provided at the chassis level with support for dual PSUs up to 2600W. Direct contact liquid cooling (DCLC) is available.

Dell PowerEdge C6520 Server Node - Specifications

Processor

  • Up to 2x 3rd Generation Intel Xeon Scalable processors per node, with up to 40 cores per processor
  • 4 hot-swappable dual-socket compute nodes in a 2U C6400 chassis

Memory

  • 16x DDR4 DIMM slots, supports RDIMM of 1 TB max or LRDIMM of 2 TB max, speeds up to 3200 MT/s

Storage

    Front Bays

  • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) drives max 92.16 TB
  • Up to 24 x 2.5-inch SAS/SATA (HDD/SSD)/NVMe drives max 368.64 TB
  • System with no backplane

GPU Options

  • Low-profile (Half-height) 70 W GPU

Expansion Slots

  • 2 x PCIe x16 Gen4 Risers with support for SNAP I/O modules (Low-profile, Half-height, and Half-length)
  • 1 x OCP 3.0 x16 Gen4 (for network controller)
  • 1 x PCIe x8 Gen4 M.2 Riser (for M.2 Boot Device)

Controllers

  • Internal Controllers (RAID): PERC H745, HBA345, S150, H345
  • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 SSDs, uSD card

Ports

    Rear Ports

  • 1 x iDRAC Direct (Micro-AB USB) port
  • 1 x USB 3.0
  • 1 x iDRAC or NIC port or RJ45
  • 1 x Mini-DisplayPort

OS Compatibility

  • Canonical Ubuntu Server LTS
  • CentOS
  • Microsoft Windows Server with Hyper-V
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise Server
  • VMware ESXi/vSAN
  • Windows Preinstallation Environment (WinPE) 64-bit drivers

System Fans

  • Non-Hot plug fans

Power Supply

  • Dual hot-plug redundant
  • 100 - 240 V AC Platinum (2600 W, 2400 W, 2000 W, 1600 W)
  • 200 - 240 V AC Titanium (2600 W, 1600 W)

Management

    Embedded/At-the-Server

  • iDRAC9
  • iDRAC Direct
  • iDRAC Service Module

    • Consoles

  • OpenManage Enterprise
  • OpenManage Power Manager plugin
  • OpenManage SupportAssist plugin
  • OpenManage Update Manager plugin

    • Mobility

  • OpenManage Mobile

    • Tools

  • RACADM CLI
  • iDRAC RESTful API with Redfish IPMI
  • System Update Utility Update Catalogs

    • OpenManage Integrations

  • VMware vCenter and vRealize Operations Manager
  • Microsoft System Center
  • Red Hat Ansible Modules
  • BMC Truesight

    • OpenManage Connections

  • IBM Tivoli Netcool/OMNIbus
  • IBM Tivoli Network Manager IP Edition
  • Micro Focus Operations Manager
  • Nagios Core
  • Nagios XI

Chassis

    Enclosure
    Height: 40.1 mm (1.58 inches)
    Width: 174.4 mm (6.86 inches)
    Depth: 570.34 mm (22.45 inches)
    Weight: Max 45.6 kg (100.53 lbs.) for 12 x 3.5-inch drive

Dell PowerEdge C6520 Server Node - Documentation

Dell PowerEdge C6520 Server Node Spec Sheet Dell PowerEdge C6520 Server Node Installation and Service Manual Dell PowerEdge C6520 Server Node Technical Guide PowerEdge C Series Quick Reference Guide Dell EMC PowerEdge Server Using Lifecycle Controller Dell PowerEdge C6400 Chassis and C6420 Chassis Technical Guide Dell PowerEdge C6400 Chassis Installation and Service Manual
