Dell PowerEdge C6525 Server With Dell C6400 Chassis

The 2U Dell PowerEdge C6400 chassis can accommodate up to 4x dual-processor Dell PowerEdge C6525 server nodes. Each hot-swappable, half-width node supports dual AMD EPYC processors from the 7002 or 7003 series with up to 64 cores, 128 threads, and a maximum cTDP of up to 280W. A single-width GPU is also supported in each node. This system is ideal for high-performance computing (HPC), digital manufacturing, research, and hyper-converged infrastructure.
Dell PowerEdge C6525
Dell Technologies Authorized Partner Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

Dell PowerEdge C6525 Server With Dell C6400 Chassis - System Overview

Additional Information

Dell PowerEdge C6525 front detail

Capable of delivering up to 2TB of memory per server node, system wide, it can provide a total of 8TB of DDR4 memory. Each PowerEdge C6525 server node offers 16x DDR4 memory module slots that can be outfitted with Registered (RDIMM) or Load Reduced (LRDIMM) memory modules offering speeds of up to 3200MT/s. On the front of the chassis, flexible drive configurations include 12x 3.5” SAS/SATA HDDs or 24x 2.5” SAS/SATA/NVMe drive bays. Under the hood, administrators can deploy an uSD card for firmware updates and optional M.2 SATA BOSS 1.0 to boot the system.

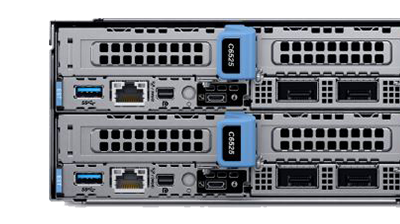

Dell PowerEdge C6525 server node detail rear

Meanwhile, the rear of the chassis supports 2x PCIe expansion risers, each with a x16 PCIe 4.0 interface, OCP 3.0 SFF card slot, iDRAC Direct Micro USB port, and a mini display port. Optionally, instead of the M.2 BOSS 1.0, users can install a x8 PCIe SATA M.2 riser. In the middle of the 2U chassis between the server nodes are dual redundant hot-plug power supply units offering either 2000W or 2400W. Air cooling is by default with optional direct liquid cooling available.

Dell’s iDRAC with LifeCycle Controller with Redfish, and Dell’s OpenManage software suite, enables inventory discovery, monitoring, management, software upgrades, and easy deployment. Both can also be used to remotely or locally manage the system using an intuitive browser-based interface.

Dell PowerEdge C6525 Server With Dell C6400 Chassis - Specifications

Form Factor

  • Up to 4x independent hot-swappable
  • 2-socket C6525 sleds in a 2U C6400 chassis

Processor - 2 Sockets

  • 2nd Generation AMD EPYC Series Processor
  • 3rd Generation AMD EPYC Series Processo
  • Up to 64x cores
  • Up to 128x threads
  • TDP up to 280W

    • Socket:

  • 2 x LGA SP3

Memory

    Memory Slots:

  • 16 x DDR4 DIMM slots

    • Memory Speed:

  • Up to 3200 MT/S

    • Maximum Memory Configuration:

  • RDIMM 2TB Max
  • LRDIMM 2TB Max

Drive Bays

  • 2.5” Direct Backplane configuration with up to 6 SAS/SATA drives per node, up to 24 per chassis
  • 2.5” NVMe Backplane configuration with up to 2 NVMe drives and 4 SAS/SATA drives per node.
  • Up to 24 drives total per chassis
  • 3.5” Direct Backplane configuration with up to 3 SAS/SATA drives per node, up to 12 per chassis
  • Internal: uSD card | M.2 SATA BOSS 1.0

External Ports

    Embedded NIC:

  • 1 x port 1GbE LOM

    • Networking Options (NDC):

  • 1 x OCP 3.0

    • Rear Ports:

  • 1 x iDRAC Direct micro-USB port
  • 1 x Mini-display port
  • 1 x iDRAC or NIC port
  • 1 x USB 3.0 port

Expansion Slots

    PCIe:

  • 2 x PCIe x16 Gen4 Risers
  • 1 x OCP 3.0 x16 Gen4
  • 1 x PCIe x8 Gen3 M.2 Riser

    • GPU Options:

  • 1x Single-Wide GPU

Chassis

    Enclosure

    Height: 86.8mm (3.4 inches)

    Width: 448mm (17.6 inches)

    Depth: 790mm (31.1 inches)

Power Supply

  • Dual Hot-plug redundant 1600W and 2400W AC Power Supply
  • Dual Hot-plug redundant 2000W AC/DC Mixmode Power Supply
  • Cooling Options: Air Cooling, Direct Liquid Cooling (DLC)

Management

    Embedded:

  • iDRAC9
  • iDRAC RESTful API with Redfish
  • iDRAC Direct

    • OpenManage SW:

  • OpenManage Enterprise
  • OpenManage Enterprise Power Manager
  • OpenManage Mobile

    • Integrations & Connections:

  • OpenManage Integrations
  • BMC Truesight
  • Microsoft System Center
  • Redhat Andible Modules
  • VMware vCenter
  • OpenManage Connections
  • IBM Tivoli Netcool/OMNIbus
  • IBM Tivoli Network Manager IP Edition
  • Micro Focus Operations Manager I
  • Nagios Core
  • Nagios XI

    • Security:

  • Cryptographically signed firmware
  • Secure Boot
  • Secure Erase
  • Silicon Root of Trust
  • System Lockdown
  • TPM 1.2/2.0, TCM 2.0 optional
  • AMD Secure Memory Encryption (SME)
  • AMD Secure Encrypted Virtualization (SEV)

Dell PowerEdge C6525 Server With Dell C6400 Chassis - Documentation

Dell PowerEdge C6525 Spec Sheet Dell PowerEdge C6525 Technical Guide Dell PowerEdge C6525 Installation and Service Manual Dell PowerEdge C-Series Quick Reference Guide Dell PowerEdge RAID Controller S150 User's Guide Integrated Dell Remote Access Controller (iDRAC) 9 User's Guide Lifecycle Controller User's Guide
