Dell PowerEdge HS5610 Cloud Server - System Overview

Additional Information

Dell PowerEdge HS5620 front detail

The Dell PowerEdge HS5610 Server can be outfitted with up to 10x 2.5-inch SAS, SATA or NVMe storage devices. A 3.5-inch chassis option supports 4x SAS, SATA HDDs or SSDs up front. There is the option to install 2x more 2.5-inch SAS, SATA, NVMe drives in the rear drive cage. To support the OS, Dell offers their Boot Optimized Storage Subsystem, or BOSS, that supports 1x or 2x NVMe M.2 drives. 2x Drives can be configured in mirror mode, RAID 1, for redundancy. Depending on configuration there are several PSUs to choose from ranging from 700W to 1100W Titanium.

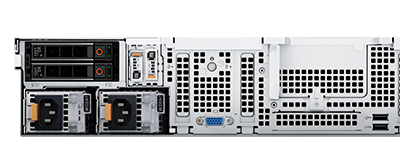

Dell PowerEdge HS5620 detail rear

On the back of the server, a LOM card offers 1GbE with dual RJ45 ports. In addition, an optional OCP 3.0 mezzanine card can be installed and offers a variety of link speed and port options. If installing the 6x 2.5-inch drives option, there are 2x additional OCP 3.0 card slots available on the front of the chassis, plus a BOSS-N1 slot for support of the OS. The 6x bay version is not compatible with a front bezel but does make it easier for data center serviceability on the cold aisle. For managing the system, Dell provides their integrated Dell Remote Access Controller or iDRAC with LifeCycle Controller. There is also the option of installing Quick Sync 2 on the front of the system for use with Dell’s OpenManage Mobile App for Smart phones or tables and is compatible with both Android and iOS operating systems.

Dell PowerEdge HS5610 Cloud Server - Specifications

Processor - 2 Sockets

  • 5th Generation Intel Xeon Scalable processors
  • 4th Generation Intel Xeon Scalable processors
  • Up to 32x cores
  • Up to 64x threads
  • TDP up to 250W
  • Socket:

  • 2 x LGA 4677

Memory

    Memory Slots:

  • 16 x DDR5 DIMM slots
  • Memory Speed:

  • Up to 5600MHz
  • Maximum Memory Configuration:

  • 2TB RDIMM

Drive Bays

    Front:

  • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 80 TB
  • Up to 12 x 3.5-inch SASUp to 6 x 2.5-inch NVMe SSD max 92.16 TB
  • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
  • Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB
  • Rear:

  • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.2 TB
  • M.2:

  • 2 x M.2 NVMe SSDs or USB

External Ports

    Network Options:

  • 2 x 1GbE LOM card (optional)
  • 1 x OCP card 3.0 (optional)
  • Front Ports:

  • 1 x iDRAC Direct (Micro-AB USB) port
  • 1 x USB 2.0
  • 1 x VGA Internal Ports: 1 x USB 3.0 (optional)
  • Rear Ports:

  • 1 x Dedicated iDRAC Ethernet port
  • 1 x USB 2.0
  • 1 x USB 3.0
  • 1 x Serial (optional)
  • 1 x VGA

Expansion Slots

    1 CPU Configuration:

  • Up to 2 PCIe slots (1 x16 Gen4 + 1 x8 Gen5)
  • 2 CPU Configuration:

  • Up to 3 PCIe Gen4 slots (1 x16 Gen4 + 2 x8 Gen4) or up to 2 PCIe Gen5 slots (1 x16 Gen5 + 1 x8 Gen5)

Chassis

    Enclosure

    Height: 42.8mm

    Width: 482mm

    Depth: 748.79mm

Power Supply

  • 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
  • 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
  • 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant
  • 1100 W LVDC -48 — (-60) VDC, hot swap redundant
  • 800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
  • 700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant

Management

    Embedded / At-the-Server:

  • iDRAC9
  • iDRAC Direct
  • iDRAC RESTful API with Redfish
  • iDRAC Service Module
  • Open Server Manager built on OpenBMC
  • Quick Sync 2 wireless module
  • Consoles:

  • Open Server Manager built on OpenBMC
  • CloudIQ for PowerEdge plug in
  • OpenManage Enterprise
  • OpenManage Enterprise Integration for VMware vCenter
  • OpenManage Integration for Microsoft System Center
  • OpenManage Integration for Windows Admin Center
  • OpenManage Integration for ServiceNow
  • OpenManage Power Manager plugin
  • OpenManage Service plugin
  • OpenManage Update Manager plugin
  • Mobility:

  • OpenManage Mobile
  • Tools:

  • Dell Repository Manager
  • Dell System Update
  • Enterprise Catalogs
  • iDRAC RESTful API with Redfish
  • IPMI
  • RACADM CLI
  • OpenManage Integrations:

  • BMC Truesight
  • Microsoft System Center
  • OpenManage Integration with ServiceNow
  • RedHat Ansible Modules
  • Terraform Providers
  • VMware vCenter and vRealize Operations Manager

Operating System and Hypervisors

  • Microsoft Windows Server with Hyper-V
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise Server
  • VMware ESXi
  • Canonical Ubuntu Server LTS
