Dell EMC PowerEdge MX760c Server Blade

The Dell PowerEdge MX760c compute sled is built for the PowerEdge MX7000 chassis, which holds 8x hot-swappable 1U sleds. The MX760c supports up to 2x 4th Generation Intel Xeon Scalable processors, each with up to 56 cores per CPU. This sled supports various storage options including up to 6x 2.5-inch NVMe/SAS/SATA drive bays or up to 8x E3.s NVMe PCIe Gen5 SSD drives, plus optional liquid cooling. With all sleds installed into the MX7000 chassis, up to 64x drive bays can be deployed. Similarly, up to 32x DDR5 DIMMs with speeds up to 4800 MT/s can be deployed with a maximum memory capacity of up to 8TB, for up to 64TB of DDR5 memory!

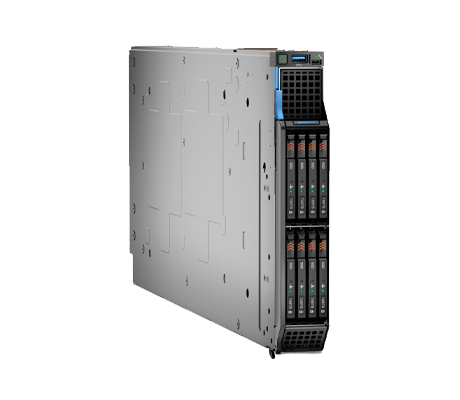

Dell EMC PowerEdge MX760c Compute Sled side view
Dell Technologies Authorized Partner Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

Dell EMC PowerEdge MX760c Server Blade - System Overview

Description

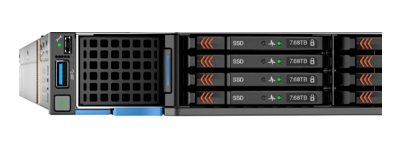

Dell PowerEdge MX760c server front of system

Dell’s PowerEdge MX7000 chassis is designed to support several generations ofPowerEdge Blade servers in the same chassis. The Dell MX760c is the next generation for the enclosure and features the Intel C741 chipset with optional Intel QuickAssist Technology. This compute sled features up to 25 Gb CNA/NIC or 100 Gb NIC per port for Mezz A/B, 32 Gb Fibre Channel. For at-chassis and remote management of the system, each server sled includes Dell's integrated remote access controller with Lifecycle Controller, or iDRAC. For embedded and modular systems, iDRAC integrates with OpenManage Enterprise and offers extra capabilities for inventory, alerting and managing multiple servers. There are rear-accessible PCIe slots supporting Mezzanine slots including the following form factors.

Dell PowerEdge MX760c server rear of system
  • 1 x16 PCIe Gen4 slot for Mezz A
  • 1 x16 PCIe Gen5 slot for Mezz B
  • 1 x16 PCIe Gen4 slot for mini-Mezz card
  • 1 x16 PCIe Gen4 slot for PERC

Dell EMC PowerEdge MX760c Server Blade - Specifications

Processor - 2 Sockets

  • Up to 2x 4th Generation Intel Xeon Scalable processors
  • Up to 56 cores per CPU

Chipset

    Intel® C741 chipset with optional Intel® QuickAssist Technology

Memory

    Memory Capacity

  • 32x DDR5 DIMM slots
  • RDIMM Max: 8TB
  • Up to 4800MT/s

Storage Controllers

  • Internal controllers: PERC H755 MX, PERC H965i MX, HBA350i MX
  • Internal boot: USB or Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 SSDs 480 GB or 960 GB
  • Software RAID: S160

Drive Bays

    Front Bays:

  • Up to 4 x 2.5-inch SAS/SATA (HDD/SSD) max 61 TB
  • Up to 6 x 2.5-inch SAS /SATA (HDD/SSD) max 46.08 TB
  • Up to 6 x 2.5-inch NVMe/SAS/SATA (HDD/SSD) max 92 TB
  • Up to 8 x E3.s NVMe PCIe Gen 5 SSD max 61 TB

Fans

  • MX7000 chassis: 5 rear and 4 front-accessible hot-swap fans with full redundancy (Gen 2 fan required)

Form Factor

  • Up to 8 independent hot-swappable, 1U single-width compute sled in a MX7000 chassis

Embedded Management

    MX7000 chassis: OpenManage Enterprise Modular Edition (OME-Modular):

  • Up to 2 redundant MX9002m management modules
  • Unified control: single management point for server, storage and networking
  • Intelligent automation: Operational template methodology and comprehensive RESTful API
  • Quick Sync 2 Bluetooth Low Energy (BLE) / wireless module option

    • On Compute Sled:

  • iDRAC9
  • iDRAC Direct
  • iDRAC RESTful API with Redfish
  • iDRAC Service Module

OpenManage Software

  • CloudIQ for PowerEdge plug in
  • OpenManage Enterprise
  • OpenManage Enterprise Integration for VMware vCenter
  • OpenManage Integration for Microsoft System Center
  • OpenManage Integration with Windows Admin Center
  • OpenManage Power Manager plugin
  • OpenManage Service plugin
  • OpenManage Update Manager plugin

OpenManage Integrations

  • BMC Truesight
  • Microsoft System Center
  • OpenManage Integration with ServiceNow
  • Red Hat Ansible Modules
  • Terraform Providers
  • VMware vCenter and vRealize Operations Manager

Ports

    Front Ports:

  • 1 x iDRAC Direct port (Micro-AB USB)
  • 1 x USB 3.0

    • Internal Port:

  • 1 x USB 3.0

PCIe

  • One x16 PCIe Gen4 slot for PERC - connected to processor 1
  • One x16 PCIe Gen4 slot for Mezz A - connected to processor 1
  • One x16 PCIe Gen5 slot for Mezz B - connected to processor 2
  • One x16 PCIe Gen4 slot for Mini Mezz - connected to processor 1
  • Two x8 PCIe Gen5 (SL1, SL2) connectors for NVMe drive – connected to processor 1
  • Two x8 PCIe Gen5 (SL4, SL5) connectors for NVMe drive – connected to processor 2
  • One x4 PCIe Gen4 for BOSS-N1 HWRAID card

Operating System and Hypervisors

  • Canonical Ubuntu Server LTS
  • Microsoft Windows Server with Hyper-V
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise Server
  • VMware vSAN/ESXi

Chassis

    Enclosure
    Height: 51.0 mm (2 inches)
    Width: 257.0 mm (10 inches)
    Depth: 631.77 mm (24.8 inches)
    Max Weight: 8.59 kg (18.93 pound)
