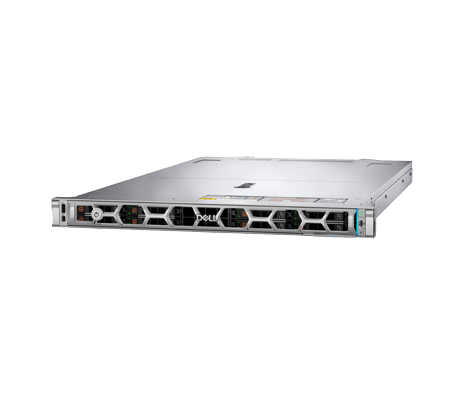

The 1U single-socket Dell R4715 features 1x AMD EPYC 9005 series CPU with a TDP of less than or equal to 240W. That includes options with up to 32x Zen 5 cores. It offers 24x DDR5 DIMM slots for a maximum of 1.5TB of memory running at up to 5200 MT/s. On the front of the chassis, administrators have the option of installing 4x 3.5-inch SAS/SATA, 8x 2.5-inch universal smart flow, or 8x U.2 Gen4 NVMe smart flow drives. Networking includes two optional OCP 3.0 cards for 1GbE, 10GbE, and 25GbE. PCIe expansion provides up to 3x Gen5 x16 slots: Slot 1 full-height or low-profile, Slot 2 low-profile or OCP 3.0, and Slot 4 full-height or low-profile. Slot 3 is a x4 Boot Optimized Storage Subsystem (BOSS) interface. Higher-speed PCIe AIC NICs (100GbE/400GbE) are supported in compatible setups.
Supported operating systems include Canonical Ubuntu Server LTS, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, and VMware ESXi. Embedded management uses iDRAC10, including iDRAC Direct, iDRAC RESTful API with Redfish, and RACADM CLI. OpenManage options include OpenManage Enterprise (OME), OME Power Manager, OME Services, and more. IPMI is also available.
- 1x 5th Generation AMD EPYC 9005 Series CPUs
- Up to 32x cores per processor
- 24x DDR5 DIMM slots, supporting RDIMM, up to 64 GB per DIMM, maximum memory capacity of 1.5 TB, with speeds up to 5200 MT/s
- Supports registered ECC DDR5 DIMMs only
- Internal Controllers (RAID): PERC H365i, H965i
- Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS)
- External HBAs (non-RAID): N/A
Front bays:
- 4x 3.5-inch SAS
- 8x 2.5-inch SAS/SATA
- 8x U.2 NVMe G4
Up to three PCIe slots (x16 connector)
- Slot 1 1 x16 Gen5 Full Height or Low Profile
- Slot 2: 1 x16 Gen5 Low Profile or 1 x16 OCP3.0
- Slot 4: 1 x16 Gen5 Full Height or Low profile
- 2x OCP NIC 3.0 card (optional) and 1GbE, 10GbE and 25GbE
- Slot 2: 1 x16 Gen5 OCP 3.0
- Slot 5: 1 x16 Gen5 OCP 3.0
- Platinum 800 W, 1100W
- Titanium: 800W, 1100W
- FTR supported
- Air Cooling
- Up to 6x hot-plug fans
Form Factor
- 2U rack server
Height:
- 42.8 mm (1.68 inches)
Width:
- 482.0 mm (18.97 inches)
Depth:
- 816.921 mm (32.16 inches) with bezel - 815.141 mm (32.09 inches) without bezel
- iDRAC 10
- iDRAC Direct
- iDRAC RESTful API with Redfish
- Racadm CLI
- Optional metal bezel
- OpenManage Enterprise (OME)
- OME Power Manager
- OME Services
- OME Update Manager
- OME APEX AIOps Observability
- OME Integration for VMware vCenter (with VMware Aria Operations)
- OME Integration for Microsoft System Center
- OpenManage Integration for Windows Admin Center
- OpenManage Integrations
- Redhat Ansible Collections
- Terraform Providers
- Dell Repository Manager
- Dell System Update
- Enterprise Catalogs
- Server Update Utility (SUU)*
Front Ports
- 1x USB 2.0 Type-A (optional LCP KVM)
- 1x USB 2.0 Type-C (HOST/BMC Direct)
- 1x MiniDisplay port (optional LCP KVM)
Rear Ports
- 2x USB 3.1 Type-A
- 1x VGA
- 1 Gb dedicated BMC Ethernet port
Internal Port
- 1x USB 3.1 Type-A
- Slot 3: 1 x4 BOSS
- Canonical Ubuntu Server LTS
- Microsoft Windows Server with Hyper-V
- Red Hat Enterprise Linuxr
- SUSE Linux Enterprise Server
- VMware ESXi
