Additional InformationFront-drive configurations on the Dell R5715 server allow up to 12x 3.5-inch SAS/SATA or 16x 2.5-inch SAS/SATA drives. Memory consists of 24x DDR5 RDIMM slots supporting a maximum of 1.5TB at speeds of up to 5200 MT/s. The processor is limited to 1x AMD EPYC 9005 series CPU with 32x Zen 5 cores and a maximum TDP of 240W. Expansion is handled by up to 4x full-height Gen5 x16 PCIe slots together with 2x optional OCP 3.0 network cards that can provide 1GbE, 10GbE, or 25GbE connectivity. Compatible PCIe AIC adapters can add 100GbE or 400GbE networking when required. An optional bezel can be added.
The server runs Canonical Ubuntu Server LTS, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, VMware ESXi, or SUSE Linux Enterprise Server. Remote management centers on iDRAC10 (including iDRAC Direct, Redfish RESTful API, and RACADM CLI), with OpenManage Enterprise, OME Power Manager, OME Services, and related tools available; IPMI support is included as well.
- 1x 5th Generation AMD EPYC 9005 Series CPUs
- Up to 32x cores per processor
- 24x DDR5 DIMM slots, supporting RDIMM, up to 64 GB per DIMM, maximum memory capacity of 1.5 TB, with speeds up to 5200 MT/s
- Supports registered ECC DDR5 DIMMs only
- Internal Controllers (RAID): PERC H365i, H965i
- Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS)
- External HBAs (non-RAID): N/A
Front bays:
- 12 x 3.5-inch SAS/SATA
- 16 x 2.5-inch SAS/SATA
Up to three PCIe slots (x16 connector)
- Slot 2: 1 x16 Gen5 Full Height
- Slot 3: 1 x16 Gen5 Full Height
- Slot 7: 1 x16 Gen5 Full Height
- Slot 9: 1 x16 Gen5 Full Height
- 2x OCP NIC 3.0 card (optional) and 1GbE, 10GbE and 25GbE
- Slot 4: 1 x16 Gen5 OCP3.0
- Slot 10: 1 x16 Gen5 OCP3.0
- Platinum 800 W, 1100W
- Titanium: 800W, 1100W
- FTR supported
- Air Cooling
- Up to 6x hot-plug fans
Form Factor
- 2U rack server
Height:
- 86.8 mm (3.41 inches)
Width:
- 482.0 mm (18.97 inches)
Depth:
- 802.4 mm (31.59 inches) with bezel - 801.51 mm (31.55 inches) without bezel
- iDRAC 10
- iDRAC Direct
- iDRAC RESTful API with Redfish
- Racadm CLI
- Quick Sync 2 wireless module
- Optional metal bezel
- OpenManage Enterprise (OME)
- OME Power Manager
- OME Services
- OME Update Manager
- OME APEX AIOps Observability
- OME Integration for VMware vCenter (with VMware Aria Operations)
- OME Integration for Microsoft System Center
- OpenManage Integration for Windows Admin Center
- OpenManage Integrations
- Redhat Ansible Collections
- Terraform Providers
- Dell Repository Manager
- Dell System Update
- Enterprise Catalogs
- Server Update Utility (SUU)*

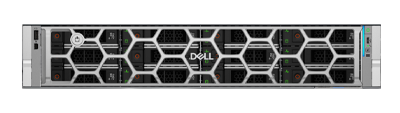

Front Ports
- 1x USB 2.0 Type-A (optional LCP KVM)
- 1x USB 2.0 Type-C (HOST/BMC Direct)
- 1x MiniDisplay port (optional LCP KVM)
Rear Ports
- 2x USB 3.1 Type-A
- 1x VGA
- 1 Gb dedicated BMC Ethernet port
Internal Port
- 1x USB 3.1 Type-A
- Slot 6: 1 x4 BOSS
- Canonical Ubuntu Server LTS
- Microsoft Windows Server with Hyper-V
- Red Hat Enterprise Linuxr
- SUSE Linux Enterprise Server
- VMware ESXi
