The Dell EMC PowerEdge R6415 server features AMD's EPYC processors to deliver surprising performance with a single processor. This server is a low-cost alternative perfect for high-density computing and virtualization. This system offers great performance for database management and analytics workloads.
AMD's EPYC processors provide the Dell EMC PowerEdge R6415 server with more cores and memory to support rigorous virtual desktop implementations. This system offers excellent storage options, including support for super-fast NVMe storage devices. Dell provides its full suite of management software that ensure efficiency through intelligent server maintenance task automation.
One AMD EPYC 7000 series processor can be installed providing up to 32 cores, and 64 threads. AMD's EPYC processors deliver up to 128 PCIe 3.0 lanes, with eight memory channels, and up to 2TB of memory. The EPYC processors also feature the industry’s first hardware-embedded x86 server security solution with its system on a chip architecture.
In total there are 16 DDR4 DIMM slots on the system board. This single processor system supports eight memory channels with two memory slots per channel for a total of 16 DIMM slots. Registered and Load Reduced DIMM modules are supported—NVDIMMs are not supported. The single processor, with a full complement of 128GB memory modules, supports up to 2TB of memory.

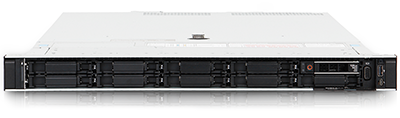

The Dell EMC R6415 server comes with many storage options. The front bay can be loaded up with 8x 2.5-inch drives. The supported drives include SAS/SATA/NVMe. The previously mentioned 8x configuration can also include two optional 2.5-inch NVMe drives for a total of ten storage devices. However, another configuration supports up to 4x 3.5-inch SAS/SATA HDDs.

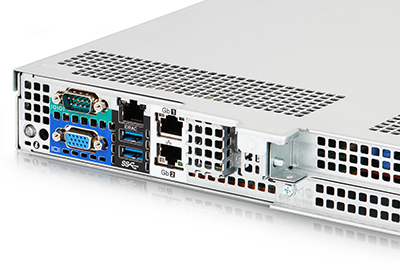

Two x16 Gen3 slots are available for additional NICs or HD controllers. The system can be installed with an optional network daughter card (NDC), providing transfer speeds between 1GbE and 10GbE depending on your workload. The front of the system has one USB 2.0 port with a dedicated iDRAC Direct USB. The rear of the system features two USB 3.0 ports with a dedicated iDRAC network port.
Dell's integrated Dell Remote Access Controller is the perfect companion for managing the Dell R6415. It incorporates out-of-band tools with Dell's OpenManage systems portfolio to give you the ability to manage the system both on-site and remotely. The OpenManage mobile app and PowerEdge Quick Sync 2.0 allows System Administrators to easily manage the system on site. Quick Sync 2.0 is compatible with both iOS and Android OS operating systems, providing you with easy server access.
The Dell EMC PowerEdge R6415, outfitted with the new AMD EPYC 7000 series processors is an excellent choice for data centers where high-density computation and virtualization is required. The AMD processor provide security with built in Secure Run Technology that encrypts all data. Dell management software automates typical server maintenance tasks enabling you IT Staff to concentrate on growing your business. With multiple storage options available, this system can easily accommodate your infrastructure needs.
Boot Optimized Storage System:
External PERC (RAID):
External HBAs (non-RAID):
Form factor
Chassis
Connections:
Optional LAN on motherboard (LOM)
Front ports:
Rear ports:
If you know what you want but can't find the exact configuration you're looking for, have one of our knowledgeable sales staff contact you. Give us a list of the components you would like to incorporate into the system, and the quantities, if more than one. We will get back to you immediately with an official quote.
