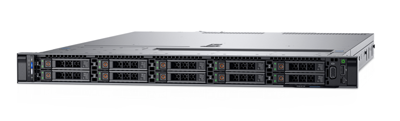

The 1U Dell PowerEdge R6615 server supports 1x AMD EPYC 4th Gen 9004 series processor with up to 96 cores. Depending on the configuration, the PowerEdge R6615 system offers up to 10x 2.5” SAS/SATA/NVMe HDDs or SSDs with a maximum storage capacity of up to 153.6TB. On the rear, there are 2x 2.5-inch SAS/SATA HDDs or SSDs with a maximum storage of 30.72TB. Under the hood, the chassis holds up to 768GB of DDR5 RDIMMs. This machine can be air cooled or liquid cooled and can be outfitted with up to 3x 75W, single-width, full-length GPUs.
Dell PowerEdge R6615 Server - System Overview
Designed to meet the demands of businesses in any industry, the Dell PowerEdge R6615 server features a single-socket to provide the best investment per dollar. This flexible platform is idea for complex workloads such as dense virtualization, hyper converged infrastructure (HCI), and Network Function Virtualization (NFV) to name a few. The R6615 Server supports a variety of drive bay options on the front panel, plus several power supply options.
Front Bays
Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 80 TB
Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB
Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB
PSUs
1800 W Titanium 200–240 V AC or 240 HVDC, hot swap redundant
1400 W Platinum 100–240 V AC or 240 HVDC, hot swap redundant
1100 W Titanium 100–240 V AC or 240 HVDC, hot swap redundant
1100 W LVDC -48 – -60 VDC hot swap redundant
800 W Platinum 100–240 V AC or 240 HVDC, hot swap redundant
700 W Titanium 200–240 V AC or 240 HVDC, hot swap redundant
Dell PowerEdge R6615 Server - Specifications
Processor - 1 Socket
One AMD EPYC 4th Generation 9004 Series
Up to 96 Cores
Memory
12x DDR5 DIMM slots
Supports RDIMM 768 GB max
Speed: 4800MT/s
Storage
Front Bays
Up to 4x 3.5" SATA/SAS (HDD/SSD) max 80 TB
Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB
Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB
Internal: Optional 2x M.2 (BOSS)

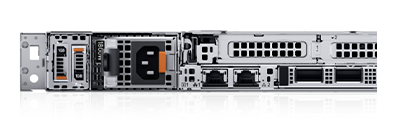

Rear Bays
Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 30.72 TB
GPU Options
Up to 3x 75W single-wide GPUs
Expansion Slots
Up to 3x:
Slot 1: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length or 1 x16 Gen5 Full height, Half length or 2 x8 Gen4 Low profile, Half length
Slot 2: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length or 1 x16 Gen5 Full height, Half length or 2 x8 Gen4 Low profile, Half length
