Dell PowerEdge R6725 Server

Powered by dual AMD EPYC 9005 series processors with up to 192 cores, the Dell PowerEdge R6725 server offers a 12-channel memory architecture and support for 24x DIMMs. It can accommodate up to 3TB of DDR5 RDIMM memory. This 1U system is designed for flexibility and is capable of housing up to 3x single-width GPUs making it ideal for demanding workloads such as high-performance computing, virtualization, and other emerging workloads.

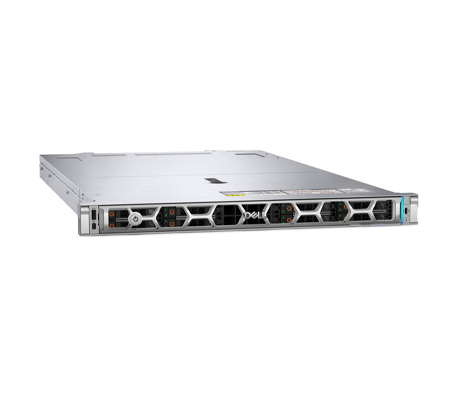

Dell PowerEdge R6725 server Front
Dell Technologies Authorized Partner Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

Dell PowerEdge R6725 Server - System Overview

Additional Information

Dell PowerEdge R6725 Server front

Under the hood, the Dell R6725 server delivers 3x PCIe Gen5 slots with a x16 connector and dual OCP 3.0 slots offering flexibility to meet workload requirements. Power is provided by a choice of two redundant configurations: either a 1+1 800W/1100W 80 PLUS Platinum power supply or a 1+1 800W to 1800W 80 PLUS Titanium power supply. With an air-cooled layout, the PowerEdge R6725 server supports several drive bay configurations with LFF, SFF, and EDSFF E3.S options on the front panel.

Optional Storage Configurations
  • 3.5-inch Drive Bays
  • 4 x 3.5-inch SAS/SATA
  • 2.5-inch Drive Bays
  • 8 x 2.5-inch Universal or U.2 / 10 x 2.5-inch SAS/SATA
  • 10 x 2.5-inch with 4 x Universal EDSFF Drive Bays
  • 8 x EDSFF E3.S / 16 x EDSFF E3.S / 20 x EDSFF E3.S + Rear 2 x EDSFF E3.S
Dell PowerEdge R6725 server rear

An optional Boot Optimized Storage Subsystem (BOSS-N1) can be used to support the operating system with either a single M.2 drive or dual M.2 drives for redundancy in a mirror RAID. The server is equipped with the integrated Dell Remote Access Controller (iDRAC10) to streamline system management. iDRAC10 facilitates both local and remote access without the need for additional software installations. It supports a RESTful API, including Redfish with specific extensions to enable efficient and scalable server management. For management of the entire infrastructure, Dell offers OpenManage Enterprise or OME. OME offers integration with other third-party management utilities.

Dell PowerEdge R6725 Server - Specifications

Processor - 2 Sockets

    AMD EPYC 9005 series

  • Dual 5th generation CPUs
  • Up to 192 cores per CPU

Memory

    Memory Slots:

  • 24 x DDR5 DIMM slots

    • Memory Speed:

  • Up to 6000 MT/S

    • Maximum Memory Configuration:

  • 3TB MAX

Drive Bays

    Front Bays:

  • 4 x 3.5-inch SAS/SATA
  • 8 x 2.5-inch Universal or U.2/ 10 x 2.5-inch SAS/SATA
  • 10 x 2.5-inch with 4 x Universal
  • 8 x EDSFF E3.S/ 16 x EDSFF E3.S/ 20 x EDSFF E3.S + Rear 2 x EDSFF E3.S

Storage Controllers

  • Internal Controllers: PERC H365i,H965i, H975i
  • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS)
  • External HBA (non-RAID): N/A

Ports

    Front:

  • 1 x USB 2.0 Type-A (optional LCP KVM)
  • 1 x USB 2.0 Type-C (HOST/BMC Direct)
  • 1 x Mini DisplayPort (optional LCP KVM)

    • Rear:

  • 1 x 1Gb Dedicated iDRAC Ethernet port
  • 2 x USB 3.1 Type A
  • 1 x VGA

    • Internal:

  • 1 x USB 3.1 Type A

Expansion Slots

    Up to three PCIe slots (x16 connectors)
  • Slot 1: 1 x16 Gen5 Full Height or Low Profile
  • Slot 2: 1 x16 Gen5 Low Profile or 1 x16 OCP3.0
  • Slot 4: 1 x16 Gen5 Full Height or Low profile

    • GPU Options:

  • Up to 3x 75W SW

Chassis

    Enclosure

    Height: 42.8 mm (1.68 inches)

    Width: 482 mm (18.98 inches)

    Depth: 815.141 mm (32.09 inches) without bezel

    Depth: 816.921 mm (32.16 inches) with bezel

Power Supply

  • Platinum 800W, 1100W
  • Titanium: 800W*, 1100W*, 1500W, 1500W 277Vac & HVDC*, 1800W*
  • Telco: 1400W -48VDC

Management

    Embedded:

  • iDRAC10
  • iDRAC RESTful API with Redfish
  • iDRAC Direct
  • Racadm CLI

    • OpenManage SW:

  • OpenManage Enterprise (OME)
  • OME Power Manager
  • OME Services
  • OME Update Manager
  • OME APEX AIOps Observability
  • OME Integration for VMware vCenter (with VMware Aria Operations)
  • OME integration for Microsoft System Center
  • OpenManage Integration for Windows Admin Center

    • Integrations:

  • OpenManage Integrations
  • RedHat Ansible Collections
  • Terraform Providers

    • Security:

  • Cryptographically signed firmware
  • Data at Rest Encryption (SEDs with local or external key mgmt)
  • Secure Boot
  • Secure Component Verification (Hardware integrity check)
  • Secure Erase
  • Silicon Root of Trust
  • System Lockdown
  • TPM 2.0 FIPS, CC-TCG certified
  • Chassis Intrusion Detection

Dell PowerEdge R6725 Server - Documentation

Dell PowerEdge R6725 Server Spec Sheet Dell PowerEdge Rack Servers Quick Reference Guide Dell PowerEdge R6725 Server Technical Guide
