Dell PowerEdge R760 Server - System Overview

Description

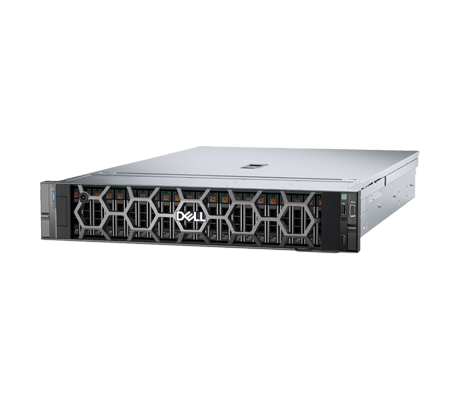

Dell PowerEdge R760 server front drive bays

With outstanding performance for the most demanding tasks, optional Intel QuickAssist Technology offloads compute-intensive workloads from the CPUs to GPU accelerators and helps with virtualization, database management, and high-performance computing applications. All things considered, the PowerEdge R760 is a powerful and dependable server that can help organizations meet the demands of their most critical workloads. This server supports several storage options as well as PSUs to support a number of configurations.

Dell PowerEdge R760 server rear ports
Front Bays
  • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB
  • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
  • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB
  • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB

Rear Bays
  • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
  • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB

PSUs
  • 2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
  • 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
  • 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
  • 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
  • 1100 W Titanium 100–240 V AC or 240 HVDC, hot swap redundant
  • 1100 W LVDC -48 – -60 VDC hot swap redundant
  • 800 W Platinum 100–240 V AC or 240 HVDC, hot swap redundant
  • 700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant

Request A Quote

Dell PowerEdge R760 Server - Specifications

Processor - 2 Socket
  • Up to 2x 5th Generation Intel Xeon Scalable processors
  • Up to 2x 4th Generation Intel Xeon Scalable processors
  • Up to 64 Cores per CPU
  • Optional Intel QuickAssist Technology
Memory
  • 32x DDR5 DIMM slots
  • Supports RDIMM 8TB max
  • Speed: Up to 4800MT/s
Storage
    Front Bays

  • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB
  • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
  • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB
  • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB
  • Rear Bays

  • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
  • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
GPU Options
  • Up to 2 x 350 W DW and 6 x 75 W SW
Expansion Slots
    Up to 8x PCIe Ports:
  • Slot 1: 1 x8 Gen5 or 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length
  • Slot 2: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length
  • Slot 3: 1 x16 Gen4 Low profile, Half length
  • Slot 4: 1 x8 Gen4 Full height, Half length
  • Slot 5: 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length
  • Slot 6: 1 x16 Gen4 Low profile, Half length
  • Slot 7: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length
  • Slot 7 SNAPI: 1 x16 Gen5 Full height, Half length
  • Slot 8: 1 x8 Gen5 or 1 x8 Gen4 Full height, Half length
Controllers
  • Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
  • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB
  • External HBA (non-RAID): HBA355e
  • Storage RAID: S160
Network Options
  • 1 x OCP card 3.0 (optional)
  • *Note: The system allows either LOM card or an OCP card or both to be installed in the system.
Ports
    Internal Ports

  • 1 x USB 3.0 (optional)
  • Front Ports

  • 1 x iDRAC Direct (Micro-AB USB) port
  • 1 x USB 2.0
  • 1 x VGA
  • Rear Ports

  • 1 x USB 2.0
  • 1 x USB 3.0
  • 1 x Serial (optional)
  • 1 x Dedicated iDRAC Ethernet port
  • 1 x VGA
  • 1 x VGA (optional for Direct Liquid Cooling configuration)
OS Compatibility
  • Canonical Ubuntu Server LTS
  • Microsoft Windows Server with Hyper-V
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise Server
  • VMware ESXi
Power Supply
  • 2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
  • 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
  • 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
  • 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
  • 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant
  • 1100 W LVDC -48 — -60 VDC, hot swap redundant
  • 800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
  • 700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
Cooling Options
  • Air cooling
  • Optional Direct Liquid Cooling (DLC)
  • *Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate
Management
    Embedded/At-the-server

  • iDRAC9
  • iDRAC Service Module
  • iDRAC RESTful API with Redfish
  • iDRAC Direct
  • Quick Sync 2 wireless module
OpenManage
    Integrations

  • BMC® Truesight
  • Microsoft® System Center
  • OpenManage Integration with ServiceNow
  • Terraform Providers
  • Red Hat® Ansible® Modules
  • VMware® vCenter and vRealize Operations Manager
  • Software

  • CloudIQ for PowerEdge plug in
  • OpenManage Enterprise
  • OpenManage Enterprise Integration for VMware vCenter
  • OpenManage Integration for Microsoft System Center
  • OpenManage Integration with Windows Admin Center
  • OpenManage Power Manager plugin
  • OpenManage Service plugin
  • OpenManage Update Manager plugin
  • Mobility

  • OpenManage Mobile
Security
  • Cryptographically signed firmware
  • Data at Rest Encryption (SEDs with local or external key mgmt)
  • Data at Rest Encryption (SEDs with local or external key mgmt)
  • Secure Erase
  • Secured Component Verification (Hardware integrity check)
  • Silicon Root of Trust
  • System Lockdown (requires iDRAC9 Enterprise or Datacenter)
  • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Chassis
  • Height – 86.8 mm (3.41 inches)
  • Width – 482 mm (18.97 inches)
  • Depth – 772.13 mm (30.39 inches) with bezel
  • Depth – 758.29 mm (29.85 inches) without bezel
