The Dell PowerEdge R760xa Rack Server is a 2U dual socket system compatible with 4th or 5th Generation Intel Xeon Scalable processors. Each socket supports 16x DDR5 DIMM slots for a maximum memory capacity of up to 8TB. On the front of the server, there are 6x E3.S Gen5 NVMe dive bays, 6x 2.5-inch NVMe drive bays, and 8x 2.5-inch SAS/SATA/NVMe drive bays. Optional Boot Optimized Storage Subsystem or BOSS supports dual M.2 NVMe SSDs to boot the system. Up to 12x single-slot x8 GPUs can be installed on this server or 4x double-slot x16 GPUs.

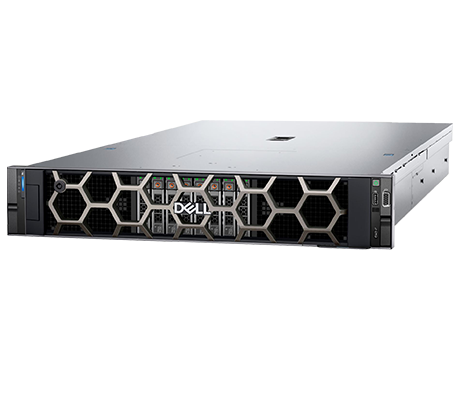

Dell PowerEdge R760xa Rack Server - System Overview
Additional Information
Outfitted with dual sockets, the Dell R760xa server is housed in a 2U chassis. This server is designed for AI inference and training, Machine Learning, and Deep Learning applications. CPU options include 4th or 5th Generation Intel Xeon Scalable Processors with a thermal design point of 350W. Using 5th gen CPUs with system will support a maximum physical core count of 64x, and a virtual thread count of 128x. Each CPU socket has 16x DDR5 DIMM slots for a total of 32x on the system board. Fully configured with both CPUs, the maximum memory capacity on this server is 8TB with speeds of 5600MHz, when 5th Gen Intel Xeon CPUs are installed. Storage options include 8x 2.5-inch hybrid drive bays, 6x E3.S Gen5 NVMe drive bays and 6x 2.5-inch NVMe drive bays. Each CPU also has a single M.2 NVMe drive slot ideal for fast access storage needs or OS installation.
The Dell R760xa Server houses up to 12x PCIe expansion slots which can be populated by single or double slot GPUs. A Dual port 1GbE LOM card is available on this system along with a single OCP 3.0 card. A dedicated integrated Dell Remote Access Module or iDRAC port on the back of the server provides for remote management of the system either using iDRAC 9.0 with Lifecycle Controller or the Dell OpenManage suite for one-to-many servers. To power the Dell R760xa rack server, options include dual 3200W, 2800W, or 2400W Titanium rated power supplies in a redundant configuration. System temperatures are regulated via 6x hot-plug fans.
Dell PowerEdge R760xa Rack Server - Specifications
Processor - 2 Sockets
5th Generation Intel Xeon Scalable processors
4th Generation Intel Xeon Scalable processors
Up to 64x cores
Up to 128x threads
TDP up to 385W
Socket:
2 x LGA 4677
Memory
Memory Slots:
32 x DDR5 DIMM slots
Memory Speed:
Up to 5600MHz
Maximum Memory Configuration:
8TB RDIMM
Drive Bays
Up to 6 x E3.S Gen5 NVMe, max 46.08 TB
Up to 6 x 2.5-inch NVMe, max 92.16 TB
Up to 8 x 2.5-inch SAS/SATA/NVMe, max 122.88 TB
M.2:
2 x M.2 NVMe SSDs or USB
External Ports
Network Options:
2 x 1GbE LOM card (optional)
1 x OCP card 3.0 (optional)
Front Ports:
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
1 x VGA

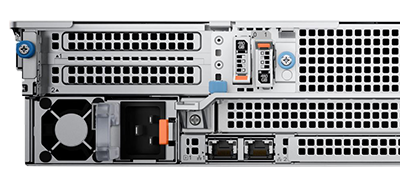

Rear Ports:
1 x Dedicated iDRAC Ethernet port
1 x USB 2.0
1 x USB 3.0
1 x Serial (optional)
1 x VGA
Interal Ports:
1 x USB 3.0 (optional)
Expansion Slots
PCIe:
4 x x16 Rear Full height, Half length + 4 x x16 Front Full height, Full length DW
4 x x16 Rear Full height, Half length + 8 x x8 Front Full height, Full length SW
