Dell PowerEdge R760xd2 Server

With up to 28 drive bays and a total storage capacity of up to 616TB, the Dell PowerEdge R760xd2 Server is an excellent choice for content delivery networks, file, and object storage, plus video capture and retrieval. Loaded with 2x 5th Generation Intel Xeon Scalable processors supporting up to 64 cores and optional Intel QuickAssist Technology, this system maximizes storage and GPU accelerators. Up to 16x DDR5 DIMM slots are available for a maximum capacity of up to 1TB of DDR5 RDIMMs offering speeds of up to 4800MT/s. Using Power Manager, the intelligent management software, administrators can maintain air cooling by utilizing the best chassis, fans, and baffles.

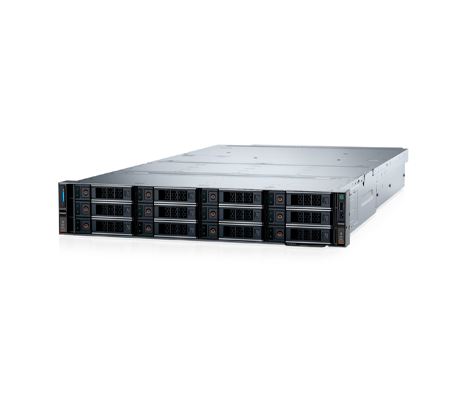

Dell PowerEdge R760xd2 Server side view
Dell Technologies Authorized Partner Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

Dell PowerEdge R760xd2 Server - System Overview

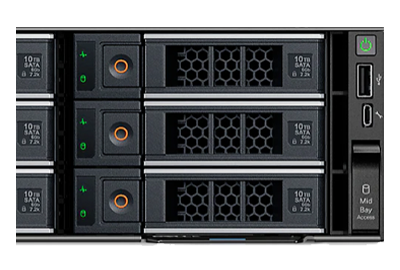

Dell PowerEdge R760xd2 server front of system

The system supports up to 5x PCIe Gen4 slots, with slot 5 dedicated for an internal PERC card. It also supports 2x 1 GbE LOM and an optional OCP 3.0 card. Among all of these slots, the PowerEdge R760xd2 Server supports up to 2x 75W single width GPUs, or 1x 75W single width GPU plus 1x 150W single width GPU, or just a single 180W double width GPU. Prioritizing storage, the R760xd2 server offers front, internal, and rear drive bays for up to 28 total drive bays. An optional boot optimized storage subsystem or BOSS for installing the OS can be outfitted with 2x NVMe M.2 drives in a mirrored RAID1. Depending on how the system is configured, there are several options for powering the system ranging from 700W to 1800W Titanium and Platinum PSUs. Dell PowerEdge R760xd2 server rear of system

Front Bays:

  • Up to 12 x 3.5-inch SAS/SATA max 264 TB

Mid Bays:

  • Up to 12 x 3.5-inch SAS/SATA max 264 TB

Rear Bays:

  • Up to 4 x 3.5-inch SAS/SATA max 88 TB
  • Up to 4 x 2.5-inch NVMe with 3.5-inch carrier max 30.72 TB
  • Up to 2 x 2.5-inch NVMe max 15.36 TB

Dell PowerEdge R760xd2 Server - Specifications

Processor - 2 Sockets

  • Up to 2x 5th Generation Intel Xeon Scalable processors
  • Up to 2x 4th Generation Intel Xeon Scalable processors
  • Up to 64 cores per CPU
  • Optional Intel QuickAssist Technology

Memory

    Memory Capacity

  • 16x DDR5 DIMM slots
  • RDIMM Max: 1TB
  • Up to 4800MT/s

GPU Options

  • Up to 2 x 75 W SW, 1 x 75 W SW + 1 x 150 W SW or 1 x 180 W DW

Storage Controllers

  • Internal controllers: PERC H755, PERC H965i, HBA355, HBA355i
  • Internal boot: USB or Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 SSD drives (hot-swappable), or USB
  • External HBAs (non-RAID): HBA355e

Drive Bays

    Front Bays:

  • Up to 12 x 3.5-inch SAS/SATA max 264 TB

    • Mid Bays:

  • Up to 12 x 3.5-inch SAS/SATA max 264 TB

    • Rear Bays:

  • Up to 4 x 3.5-inch SAS/SATA max 88 TB
  • Up to 4 x 2.5-inch NVMe with 3.5-inch carrier max 30.72 TB
  • Up to 2 x 2.5-inch NVMe max 15.36 TB

Power Supplies

  • 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
  • 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
  • 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant
  • 1100W LVDC –48 — –60 VDC, hot swap redundant
  • 700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant

Fans

  • Up to 6x standard (STD) fans, hot swappable

Form Factor

  • 2U rack server

Embedded NIC

  • 2 x 1 GbE LOM

Network Options

  • 1 x OCP card 3.0 (optional)

Embedded Management

  • iDRAC9
  • iDRAC Direct
  • iDRAC RESTful API with Redfish
  • iDRAC Service Module

OpenManage Software

  • CloudIQ for PowerEdge plug in
  • OpenManage Enterprise
  • OpenManage Enterprise Integration for VMware vCenter
  • OpenManage Integration for Microsoft System Center
  • OpenManage Integration with Windows Admin Center
  • OpenManage Power Manager plugin
  • OpenManage Service plugin
  • OpenManage Update Manager plugin

OpenManage Integrations

  • BMC Truesight
  • Microsoft System Center
  • OpenManage Integration with ServiceNow
  • Red Hat Ansible Modules
  • Terraform Providers
  • VMware vCenter and vRealize Operations Manager

Ports

    Front Ports:

  • 1 x iDRAC Direct port (Micro-AB USB)
  • 1 x USB 2.0

    • Internal Port:

  • 1 x USB 3.0(optional)

    • Rear Port:

  • 1 x Dedicated iDRAC Ethernet port
  • 1 x USB 2.0
  • 1 x USB 3.0
  • 1 x VGA

PCIe

    Up to 5x PCIe slots:
  • Slot 1: 1 x16 Gen4 Low profile, Half length
  • Slot 2: 1 x8 (x16 connector) Gen4 Low profile, Half length or 1 x16 Gen4 Full height, Full length or 1 x16 Gen4 Full height, Half length
  • Slot 3: 1 x16 Gen4 Low profile, Half length or 1 x16 Gen4 Full height, Full length or 1 x16 Gen4 Full height, Half length
  • Slot 4: 1 x16 Gen4 Low profile, Half length
  • Slot 5: 1 x16 Gen4 Low profile, Half length
    • *Note: Slot 5 is dedicated for internal PERC card

Operating System and Hypervisors

  • Canonical Ubuntu Server LTS
  • Microsoft Windows Server with Hyper-V
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise Server
  • VMware vSAN/ESXi

Chassis

    Enclosure
    Height: 86.8 mm (3.41 inches)
    Width: 481.6 mm (18.96 inches)
    Depth: 837 mm (32.95 inches)

Dell PowerEdge R760xd2 Server - Documentation

Dell PowerEdge R760xd2 Server Blade Technical Guide Dell PowerEdge R760xd2 Server Blade Specs Sheet Dell PowerEdge Modular Quick Reference Guide
