Dell PowerEdge R7615 Server

The Dell PowerEdge R7615 is a 2U, single-socket server designed for an AMD EPYC 4th generation Genoa processor with up to 96 cores. The PowerEdge R7615 is capable of supporting a maximum of 768GB of DDR5 memory when all 12x slots are populated with 64GB RDIMMs operating at speeds of up to 4800 MT/s. The front panel delivers flexible storage options with 8x to 24x drive bays supporting SAS, SATA, or NVMe SSD/HDD configurations. The rear of the chassis can be outfitted with 4x SFF hybrid drive bays. This platform offers up to 3x 300W double-wide GPUs or 6x 75W single-width GPUs.

Dell PowerEdge R7615 Server - System Overview

The Dell R7615 server offers several front-panel storage configurations as well as various power supply levels. There is also the option for air or direct liquid cooling (DLC) configurations.

Front Bays

Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB

Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB

Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB

Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB

Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB

Rear Bays

Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB

Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB

PSUs

2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant

1800 W Titanium 200–240 V AC or 240 HVDC, hot swap redundant

1400 W Platinum 100–240 V AC or 240 HVDC, hot swap redundant

1100 W Titanium 100–240 V AC or 240 HVDC, hot swap redundant

1100 W LVDC -48 – -60 VDC hot swap redundant

800 W Platinum 100–240 V AC or 240 HVDC, hot swap redundant

700 W Titanium 200–240 V AC or 240 HVDC, hot swap redundant

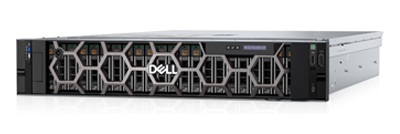

Dell PowerEdge R7615 server front drive bays

Dell PowerEdge R7615 Server - Specifications

Processor - 1 Socket

1x AMD EPYC 4th Generation 9004 Series
Up to 96 Cores

Memory

12x DDR5 DIMM slots
Supports RDIMM 768GB max
Speed: 4800MT/s

Storage

Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB
Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB
Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB
Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB

Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB

GPU Options

Up to 3x 300W DW or 6x 75W SW

Expansion Slots

Slot 1: 1 x8 Gen5 Full height, Half length
Slot 2: 1 x8/1 x16 Gen5 Full height, Half length or 1 x16 Gen5 Full height, Full length
Slot 3: 1 x16 Gen5 or 1 x8/1 x16 Gen4 Low profile, Half length
Slot 4: 1 x8 Gen4 Full height, half length
Slot 5: 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length
Slot 6: 1 x8/1 x16 Gen4 Low Profile, Half length
Slot 7: 1 x8/1 x16 Gen5 or 1 x16 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length
Slot 8: 1 x8/1 x16 Gen5 Full height, Half length

Controllers

Internal Controllers (RAID): PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB
External HBA (non-RAID): HBA355e
Software Raid: S160

Ports

1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
1 x VGA

1 x Dedicated iDRAC ethernet port
1 x Serial (optional)
1 x USB 3.0
1 x USB 2.0
1 x VGA
1 x VGA (optional for Direct Liquid Cooling configuration)

OS Compatibility

Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi

System Fans

High performance Silver (HPR) fans/ High performance Gold (VHP) fans
Up to 6 hot plug fans

Cooling Options

Air Cooling
Optional Direct Liquid Cooling (DLC)

Power Supply

2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
1800 W Titanium 200–240 V AC or 240 HVDC, hot swap redundant
1400 W Platinum 100–240 V AC or 240 HVDC, hot swap redundant
1100 W Titanium 100–240 V AC or 240 HVDC, hot swap redundant
1100 W LVDC -48 – -60 VDC hot swap redundant
800 W Platinum 100–240 V AC or 240 HVDC, hot swap redundant
700 W Titanium 200–240 V AC or 240 HVDC, hot swap redundant

Embedded Management

iDRAC9
iDRAC RESTful API with Redfish
iDRAC Direct
iDRAC Service Module
Quick Sync 2 BLE/wireless module

OpenManage SW

CloudIQ for PowerEdge plug in
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin
OpenManage Enterprise Integration for VMware vCenter
OpenManage Integration for Microsoft System Center
OpenManage Integration with Windows Admin Center

OpenManage Mobile

BMC Truesight
Microsoft System Center
OpenManage Integration with ServiceNow
Red Hat Ansible Modules
Terraform Providers
VMware vCenter and vRealize Operations Manager

Chassis
