Dell PowerEdge R7625 Server

Designed to hold two 96-core AMD EPYC 9004 CPUs, the Dell PowerEdge R7625 server delivers powerful performance with flexible, low-latency storage options. The front panel can accommodate 8x to 24x SFF or LFF drive bays with SAS, SATA, or NVMe support. On the back of the chassis, there’s an option to install up to 4x 2.5-inch drive bays with SAS, SATA, or NVMe SSD/HDD compatibility. 24x DDR5 RDIMM slots can be filled with 128GB RDIMMs for up to 3TB of memory with speeds of up to 4800MT/s. The 2U platform also supports up to 6x single-wide full-length or 2x double-wide full-length GPUs to improve responsiveness and application load time.

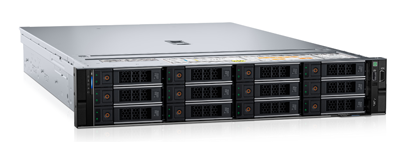

Dell R7625 Server side view
Dell Technologies Authorized Partner Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

Dell PowerEdge R7625 Server - System Overview

Description

The R7625 server supports multiple power supply options and storage configurations cooled by either an air or direct liquid cooling. Offering an abundance of CPU cores, memory and storage, this system is adept at high-performance computing workloads in addition to virtual desktop integration and virtualization. It’s designed to deliver breakthrough innovation for traditional or emerging workloads.



Front Bays
  • Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB
  • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB
  • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
  • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB
  • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB

    • Rear Bays
  • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
  • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB

    • PSUs
  • 2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
  • 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
  • 1800 W Titanium 200–240 V AC or 240 HVDC, hot swap redundant
  • 1400 W Platinum 100–240 V AC or 240 HVDC, hot swap redundant
  • 1100 W Titanium 100–240 V AC or 240 HVDC, hot swap redundant
  • 1100 W LVDC -48 – -60 VDC hot swap redundant
  • 800 W Platinum 100–240 V AC or 240 HVDC, hot swap redundant

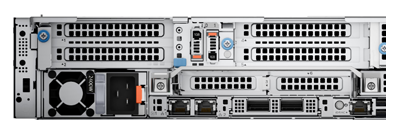

    • Dell PowerEdge R7625 server front drive bays Dell PowerEdge R7625 server rear ports

    Dell PowerEdge R7625 Server - Specifications

    Processor - 2 Sockets

    • Two AMD EPYC 4th Generation 9004 Series
    • Up to 96 Cores

    Memory

    • 24x DDR5 DIMM slots
    • Supports RDIMM 3TB max
    • Speed: 4800MT/s

    Storage

      Front Bays

    • Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB
    • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB
    • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
    • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB
    • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB

      • Rear Bays

    • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
    • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB

    GPU Options

    • Up to 2x 300W DW or 6x 75W SW

    Expansion Slots

      Up to 8x:

    • Slot 1: 1 x8 Gen5 Full height, Half length
    • Slot 2: 1 x8/1 x16 Gen5 Full height, Half length or 1 x16 Gen5 Full height, Full length
    • Slot 3: 1 x16 Gen5 or 1 x8/1 x16 Gen4 Low profile, Half length
    • Slot 4: 1 x8 Gen4 Full height, half length
    • Slot 5: 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length
    • Slot 6: 1 x8/1 x16 Gen4 Low Profile, Half length
    • Slot 7: 1 x8/1 x16 Gen5 or 1 x16 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length
    • Slot 8: 1 x8/1 x16 Gen5 Full height, Half length

    Controllers

    • Internal Controllers (RAID): PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
    • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB
    • External HBA (non-RAID): HBA355e
    • Software Raid: S160

    Ports

      Front Ports

    • 1 x iDRAC Direct (Micro-AB USB) port
    • 1 x USB 2.0
    • 1 x VGA

      • Rear Ports

    • 1 x Dedicated iDRAC ethernet port
    • 1 x Serial (optional)
    • 1 x USB 3.0
    • 1 x USB 2.0
    • 1 x VGA
    • 1 x VGA (optional for Direct Liquid Cooling configuration)

    OS Compatibility

    • Canonical Ubuntu Server LTS
    • Microsoft Windows Server with Hyper-V
    • Red Hat Enterprise Linux
    • SUSE Linux Enterprise Server
    • VMware ESXi

    System Fans

    • High performance Silver (HPR) fans/ High performance Gold (VHP) fans
    • Up to 6 hot plug fans

    Cooling Options

    • Air Cooling
    • Optional Direct Liquid Cooling (DLC)

      • *DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate

    Power Supply

    • 2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
    • 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
    • 1800 W Titanium 200–240 V AC or 240 HVDC, hot swap redundant
    • 1400 W Platinum 100–240 V AC or 240 HVDC, hot swap redundant
    • 1100 W Titanium 100–240 V AC or 240 HVDC, hot swap redundant
    • 1100 W LVDC -48 – -60 VDC hot swap redundant
    • 800 W Platinum 100–240 V AC or 240 HVDC, hot swap redundant

    Embedded Management

    • iDRAC9
    • iDRAC RESTful API with Redfish
    • iDRAC Direct
    • iDRAC Service Module
    • Quick Sync 2 BLE/wireless module

    OpenManage SW

      Software

    • CloudIQ for PowerEdge plug in
    • OpenManage Enterprise
    • OpenManage Power Manager plugin
    • OpenManage Service plugin
    • OpenManage Update Manager plugin
    • OpenManage Enterprise Integration for VMware vCenter
    • OpenManage Integration for Microsoft System Center
    • OpenManage Integration with Windows Admin Center

      • Mobility

    • OpenManage Mobile

      • Integrations

    • BMC Truesight
    • Microsoft System Center
    • OpenManage Integration with ServiceNow
    • Red Hat Ansible Modules
    • Terraform Providers
    • VMware vCenter and vRealize Operations Manager

    Chassis

      Enclosure
      Height: 86.8 mm (3.41 inches)
      Width: Width – 482 mm (18.97 inches)
      Depth: 772.13 mm (30.39 inches) with bezel Depth: 758.29 mm (29.85 inches) without bezel

    Dell PowerEdge R7625 Server - Documentation

    Dell PowerEdge R7625 Server Specifications Sheet Dell PowerEdge R7625 Installation and Service Manual Dell PowerEdge R7625 Server Technical Specifications Dell PowerEdge R7625 Quick Reference Guide
