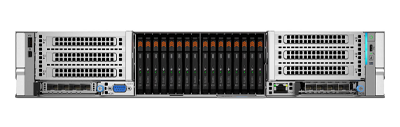

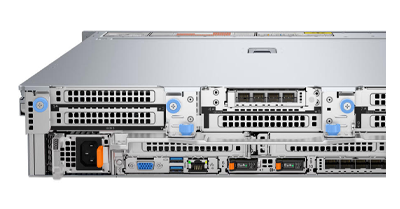

Appropriate for virtualization, cloud-native applications distributed inferencing, and large-scale analytics, this flexible 2U system is designed for high-performance computing and balanced performance. The air-cooled PowerEdge R770 server delivers up to 4x PCIe x16 Gen5 slots, plus 2x OCP NIC 3.0 slots which can be installed on the front panel for a front I/O configuration or on the rear for a rear I/O configuration. The chassis can be powered by a redundant 1+1 1500W 80 PLUS Titanium power supply or a 1+1 800W/1100W 80 PLUS Platinum power supply. An optional security bezel covers the following drive bay options on the front panel:
Optional Storage Configurations
Management for the R770 includes the integrated Dell Remote Access Controller (iDRAC10), which is embedded within every PowerEdge server. Administrators can manage the machine by deploying iDRAC10 which allows for both local and remote access, without additional software installations. It facilitates effective and scalable server management by supporting RESTful API, which includes Redfish. For a more robust management of the system, Administrators can use Dell’s OpenManage portfolio.
