Dell PowerEdge R7715 Server

The Dell PowerEdge R7715 is a high-performance single-socket server equipped with a 5th generation AMD EPYC 9005 series processor offering up to 160 cores. It supports a maximum memory capacity of up to 6TB, with 24x DDR5 RDIMM slots. This 2U system supports up to 3x double-width (DW) GPUs or 6x single-width (SW) GPUs. Each DW GPU can accommodate a thermal design power (TDP) of up to 400W, while each SW GPU supports up to 75W.

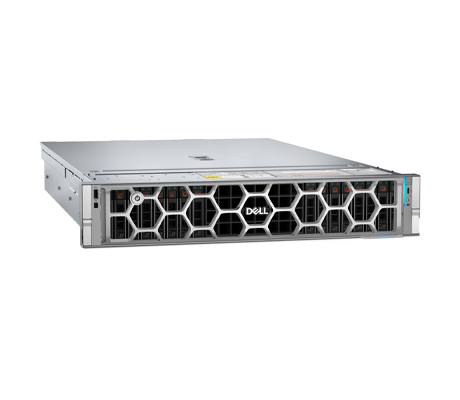

Dell PowerEdge R7715 server Front
Dell Technologies Authorized Partner Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

Dell PowerEdge R7715 Server - System Overview

Additional Information

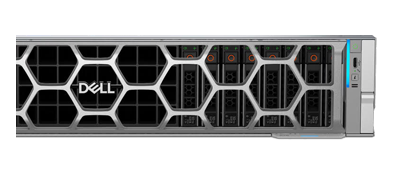

Dell PowerEdge R7715 Server front

The PowerEdge R7715 server is designed to efficiently handle demanding workloads and applications, including data warehousing, eCommerce, databases, and high-performance computing (HPC). Memory speeds of up to 5200 MT/s are supported with 1x DIMM Per Channel (1DPC) or 4000 MT/s with 2x DIMMS Per Channel. The platform provides exceptional scalability and flexibility with up to 8x PCIe Gen5 x16 slots and 2x OCP NIC 3.0 slots, supporting Broadcom or Mellanox cards. It also offers two advanced cooling options: air cooling and direct liquid cooling (DLC), ensuring optimal performance under varying conditions. For booting the system, Dell offers a Boot Optimized Storage Subsystem (BOSS-N1), preserving the upfront storage. Behind the optional metal bezel, administrators can configure the system with a range of drive bay options to suit their specific storage needs.

Optional Storage Configurations
  • 3.5-inch Storage Bays
  • 12 x 3.5-inch SAS/SATA
  • 2.5-inch Storage Bays
  • 8 x 2.5 Universal/ 16 x 2.5-inch SAS/SATA / 24 x 2.5-inch SAS/SATA
  • 16 x 2.5-inchSAS/SATA SSD + 8 x U.2 NVMe drives EDSFF Storage Bays
  • 8 x EDSFF E3.S / 16 x EDSFF E3.S / 32 x EDSFF E3.S/ 40 x EDSFF E3.S

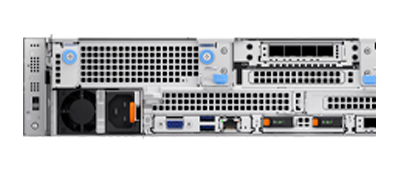

Dell PowerEdge R7715 server rear

Two redundant power supply configurations are available: a 1+1 800W/1100W 80 PLUS Platinum power supply or a 1+1 800W to 3200W 80 PLUS Titanium power supply. To make system management easier, the server has the Dell Remote Access Controller (iDRAC10) installed. iDRAC10 eliminates the need for extra software installations by enabling both local and remote access. Effective and scalable server management is made possible by its support for a RESTful API, which includes Redfish with specific extensions. For more comprehensive management of the system, Dell offer OpenManage Enterprise or OME. OME includes a power manager, update manager and an OME integration for use with VMware vCenter, plus Microsoft System Center, and Windows Admin Center.

Dell PowerEdge R7715 Server - Specifications

Processor - 1 Socket

    AMD EPYC 9005 series

  • Single 5th generation CPUs
  • Up to 160 cores per CPU

Memory

    Memory Slots:

  • 24 x DDR5 DIMM slots

    • Memory Speed:

  • Up to 5200 MT/S

    • Maximum Memory Configuration:

  • 6TB MAX

Drive Bays

    Front Bays:

  • 2 x U.2
  • 12 x 3.5-inch SAS/SATA
  • 8 x 2.5 Universal/ 16 x 2.5-inch SAS/SATA/ 24 x 2.5-inch SAS/SATA
  • 16 x 2.5-inchSAS/SATA SSD + 8 x U.2 NVMe drives
  • 8 x EDSFF E3.S/ 16 x EDSFF E3.S/ 32 x EDSFF E3.S/ 40 x EDSFF E3.S

Storage Controllers

  • Internal Controllers: PERC H365i,H965i, H975i
  • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS)
  • External HBA (non-RAID): N/A

Ports

    Front:

  • 1 x USB 2.0 Type-A (optional LCP KVM)
  • 1 x USB 2.0 Type-C (HOST/BMC Direct)
  • 1 x Mini DisplayPort (optional LCP KVM)

    • Rear:

  • 1 x 1Gb Dedicated iDRAC Ethernet port
  • 1 x USB 3.1 Type A
  • 1 x VGA

    • Internal:

  • 1 x USB 3.1 Type A

Expansion Slots

    Up to eight PCIe slots (x16 connectors)
  • Slot 1: 1 x16 Gen5 Full Height
  • Slot 2: 1 x16 Gen5 Full Height or 1 x16 Dual Width Full Length
  • Slot 3: 1 x16 Gen5 Full Height or Low Profile
  • Slot 4: 1 x16 Gen5 Full Height or 1 x16 Dual Width Full Length or 1 x16 OCP3.0
  • Slot 5: 1 x16 Gen5 Full Height
  • Slot 7: 1 x16 Gen5 Full Height or 1 x16 Dual Width Full Length
  • Slot 8: 1 x16 Gen5 Full Height
  • Slot 9: 1 x16 Gen5 Full Height or Low Profile

    • GPU Options:

  • Up to 3x 400W DW; Up to 6x 75W SW

Chassis

    Enclosure

    Height: 86.8 mm (3.42 inches)

    Width: 482 mm (18.98 inches)

    Depth: 801.51 mm (31.55 inches) without bezel

    Depth: 802.4 mm (31.59 inches) with bezel

Power Supply

  • Platinum 800W, 1100W
  • Titanium: 800W, 1100W, 1500W, 1500W 277Vac & HVDC, 1800W, 2400W, 3200W, 3200W 277Vac & HVDC
  • Telco: 1400W -48VDC

Management

    Embedded:

  • iDRAC10
  • iDRAC RESTful API with Redfish
  • iDRAC Direct
  • Racadm CLI

    • OpenManage SW:

  • OpenManage Enterprise (OME)
  • OME Power Manager
  • OME Services
  • OME Update Manager
  • OME APEX AIOps Observability
  • OME Integration for VMware vCenter (with VMware Aria Operations)
  • OME integration for Microsoft System Center
  • OpenManage Integration for Windows Admin Center

    • Integrations:

  • OpenManage Integrations
  • RedHat Ansible Collections
  • Terraform Providers

    • Security:

  • Cryptographically signed firmware
  • Data at Rest Encryption (SEDs with local or external key mgmt)
  • Secure Boot
  • Secure Component Verification (Hardware integrity check)
  • Secure Erase
  • Silicon Root of Trust
  • System Lockdown
  • TPM 2.0 FIPS, CC-TCG certified
  • Chassis Intrusion Detection

Dell PowerEdge R7715 Server - Documentation

Dell PowerEdge R7715 Server Spec Sheet Dell PowerEdge Rack Servers Quick Reference Guide Dell PowerEdge R7715 Server Technical Guide
