The 2U Dell PowerEdge R7725 server can hold up to 2x dual-width GPUs or up to 6x single-width GPUs to tackle traditional and emerging workloads including big data analytics, artificial intelligence, and more. The dual socket system supports AMD EPYC 9005 series processors with up to 192 cores, plus a 12-channel memory architecture for 24x DIMMs in total, supporting up to 6TB of DDR5 RDIMM memory.
Dell PowerEdge R7725 Server - System Overview
Additional Information

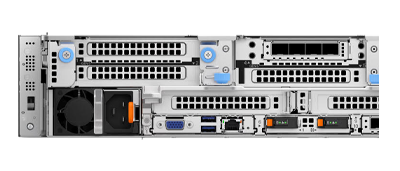

The PowerEdge R7725 server motherboard is equipped with up to 8x PCIe Gen5 slots, offering a mix of x8 and x16 connectors, along with 2 OCP NIC 3.0 slots, all easily accessible via the rear of the chassis. For this update, the Gen 5 OCP mezzanine card slots can be outfitted with 1GbE up to a maximum of 400GbE. Power redundancy is ensured with a choice of either dual 800W or 1100W 80 PLUS Platinum power supplies, or dual 800W to 3200W 80 PLUS Titanium power supplies. The front of the Dell R7725 can accommodate up to 16x drive bays in a variety of configurations, providing flexibility for storage needs. It also offers a number of storage controllers and a Boot Optimized Storage Subsystem (BOSS-N1) for booting the system either with a single M.2 drive or dual M.2 drives for redundancy.
Optional Storage Configurations
3.5-inch Drive Bays
12 x 3.5-inch SAS/SATA
2.5-inch Drive Bays
8 x 2.5-inch Universal/ 16 x 2.5-inch SAS/SATA/ 24 x 2.5-inch SAS/SATA
16 x 2.5-inch SAS/SATA + 8 x U.2 or 2.5-inch NVMe RAID EDSFF Drive Bays
8 x EDSFF E3.S/ 16 x EDSFF E3.S/ 32 x EDSFF E3.S/ 40 x EDSFF E3.S
To manage the system, the server is equipped with the Dell Remote Access Controller or iDRAC10. iDRAC10 enables both local and remote administration. It automates common management tasks without requiring additional software installation. Additionally, it allows for easy scaling as infrastructure grows. It supports a RESTful API, including Redfish with Dell-specific extensions, for scalable server management. Dell’s OpenManage Enterprise utility provides more comprehensive management utilities for your whole network and can be configured to work with VMware vCenter, Microsoft Systems Center, and Windows Admin Center.
Dell PowerEdge R7725 Server - Specifications
Processor - 2 Sockets
AMD EPYC 9005 series
Dual 5th generation CPUs
Up to 192 cores per CPU
Memory
Memory Slots:
24 x DDR5 DIMM slots
Memory Speed:
Up to 6000 MT/S
Maximum Memory Configuration:
6TB MAX
Drive Bays
Front Bays:
12 x 3.5-inch SAS/SATA
8 x 2.5-inch Universal/ 16 x 2.5-inch SAS/SATA/ 24 x 2.5-inch SAS/SATA
16 x 2.5-inch SAS/SATA + 8 x U.2 or 2.5-inch NVMe RAID
8 x EDSFF E3.S/ 16 x EDSFF E3.S/ 32 x EDSFF E3.S/ 40 x EDSFF E3.S
Slot 2: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height or 1 x16 Dual Width Full Length
Slot 3: 1 x16 Gen5 Full Height or Low Profile
Slot 4: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height* or 1 x16 OCP 3.0
Slot 5: 1 x8 Gen5 Full Height
Slot 7: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height or 1 x16 Dual Width Full Length
Slot 8: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height
Slot 9: 1 x16 Gen5 Full Height or Low Profile
GPU Options:
Up to 2 x 400W DW; Up to 6 x 75W SW
Chassis
Enclosure
Height: 86.8 mm (3.42 inches)
Width: 482 mm (18.98 inches)
Depth: 801.51 mm (31.55 inches) without bezel
Depth: 802.4 mm (31.59 inches) with bezel
