Dell PowerEdge R7725 Server

The 2U Dell PowerEdge R7725 server can hold up to 2x dual-width GPUs or up to 6x single-width GPUs to tackle traditional and emerging workloads including big data analytics, artificial intelligence, and more. The dual socket system supports AMD EPYC 9005 series processors with up to 192 cores, plus a 12-channel memory architecture for 24x DIMMs in total, supporting up to 6TB of DDR5 RDIMM memory.

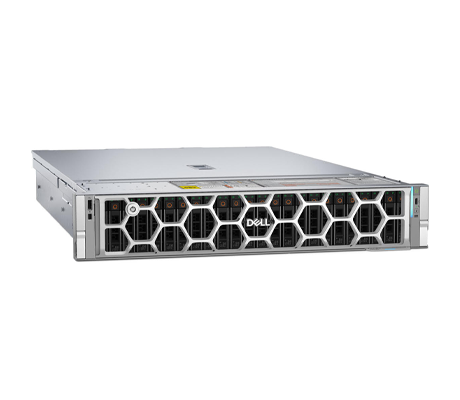

Dell PowerEdge R7725 server Front
Dell Technologies Authorized Partner Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

Dell PowerEdge R7725 Server - System Overview

Additional Information

Dell PowerEdge R7725 Server front

The PowerEdge R7725 server motherboard is equipped with up to 8x PCIe Gen5 slots, offering a mix of x8 and x16 connectors, along with 2 OCP NIC 3.0 slots, all easily accessible via the rear of the chassis. For this update, the Gen 5 OCP mezzanine card slots can be outfitted with 1GbE up to a maximum of 400GbE. Power redundancy is ensured with a choice of either dual 800W or 1100W 80 PLUS Platinum power supplies, or dual 800W to 3200W 80 PLUS Titanium power supplies. The front of the Dell R7725 can accommodate up to 16x drive bays in a variety of configurations, providing flexibility for storage needs. It also offers a number of storage controllers and a Boot Optimized Storage Subsystem (BOSS-N1) for booting the system either with a single M.2 drive or dual M.2 drives for redundancy.

Optional Storage Configurations
  • 3.5-inch Drive Bays
  • 12 x 3.5-inch SAS/SATA
  • 2.5-inch Drive Bays
  • 8 x 2.5-inch Universal/ 16 x 2.5-inch SAS/SATA/ 24 x 2.5-inch SAS/SATA
  • 16 x 2.5-inch SAS/SATA + 8 x U.2 or 2.5-inch NVMe RAID EDSFF Drive Bays
  • 8 x EDSFF E3.S/ 16 x EDSFF E3.S/ 32 x EDSFF E3.S/ 40 x EDSFF E3.S
Dell PowerEdge R7725 server rear

To manage the system, the server is equipped with the Dell Remote Access Controller or iDRAC10. iDRAC10 enables both local and remote administration. It automates common management tasks without requiring additional software installation. Additionally, it allows for easy scaling as infrastructure grows. It supports a RESTful API, including Redfish with Dell-specific extensions, for scalable server management. Dell’s OpenManage Enterprise utility provides more comprehensive management utilities for your whole network and can be configured to work with VMware vCenter, Microsoft Systems Center, and Windows Admin Center.

Dell PowerEdge R7725 Server - Specifications

Processor - 2 Sockets

    AMD EPYC 9005 series

  • Dual 5th generation CPUs
  • Up to 192 cores per CPU

Memory

    Memory Slots:

  • 24 x DDR5 DIMM slots

    • Memory Speed:

  • Up to 6000 MT/S

    • Maximum Memory Configuration:

  • 6TB MAX

Drive Bays

    Front Bays:

  • 12 x 3.5-inch SAS/SATA
  • 8 x 2.5-inch Universal/ 16 x 2.5-inch SAS/SATA/ 24 x 2.5-inch SAS/SATA
  • 16 x 2.5-inch SAS/SATA + 8 x U.2 or 2.5-inch NVMe RAID
  • 8 x EDSFF E3.S/ 16 x EDSFF E3.S/ 32 x EDSFF E3.S/ 40 x EDSFF E3.S

Storage Controllers

  • Internal Controllers: PERC H365i,H965i, H975i
  • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS)
  • External HBA (non-RAID): N/A

Ports

    Front:

  • 1 x USB 2.0 Type-A (optional LCP KVM)
  • 1 x USB 2.0 Type-C (HOST/BMC Direct)
  • 1 x Mini DisplayPort (optional LCP KVM)

    • Rear:

  • 1 x Dedicated iDRAC Ethernet port
  • 1 x USB 3.1 Type A
  • 1 x VGA

    • Internal:

  • 1 x USB 3.1 Type A

Expansion Slots

    Up to eight PCIe slots* (x8 or x16 connector)
  • Slot 1: 1 x8 Gen5 Full Height
  • Slot 2: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height or 1 x16 Dual Width Full Length
  • Slot 3: 1 x16 Gen5 Full Height or Low Profile
  • Slot 4: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height* or 1 x16 OCP 3.0
  • Slot 5: 1 x8 Gen5 Full Height
  • Slot 7: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height or 1 x16 Dual Width Full Length
  • Slot 8: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height
  • Slot 9: 1 x16 Gen5 Full Height or Low Profile

    • GPU Options:

  • Up to 2 x 400W DW; Up to 6 x 75W SW

Chassis

    Enclosure

    Height: 86.8 mm (3.42 inches)

    Width: 482 mm (18.98 inches)

    Depth: 801.51 mm (31.55 inches) without bezel

    Depth: 802.4 mm (31.59 inches) with bezel

Power Supply

  • Platinum 800W, 1100W
  • Titanium: 800W, 1100W, 1500W, 1500W 277Vac & HVDC, 1800W, 2400W, 3200W, 3200W 277Vac & HVDC
  • Telco: 1400W -48VDC

Management

    Embedded:

  • iDRAC10
  • iDRAC RESTful API with Redfish
  • iDRAC Direct
  • Racadm CLI

    • OpenManage SW:

  • OpenManage Enterprise (OME)
  • OME Power Manager
  • OME Services
  • OME Update Manager
  • OME APEX AIOps Observability
  • OME Integration for VMware vCenter (with VMware Aria Operations)
  • OME integration for Microsoft System Center
  • OpenManage Integration for Windows Admin Center

    • Integrations:

  • OpenManage Integrations
  • RedHat Ansible Collections
  • Terraform Providers

    • Security:

  • Cryptographically signed firmware
  • Data at Rest Encryption (SEDs with local or external key mgmt)
  • Secure Boot
  • Secure Component Verification (Hardware integrity check)
  • Secure Erase
  • Silicon Root of Trust
  • System Lockdown
  • TPM 2.0 FIPS, CC-TCG certified
  • Chassis Intrusion Detection

Dell PowerEdge R7725 Server - Documentation

Dell PowerEdge R7725 Server Spec Sheet Dell PowerEdge Rack Servers Quick Reference Guide Dell PowerEdge R7725 Server Technical Guide
