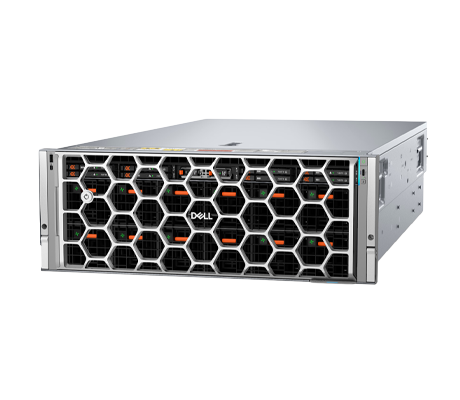

The air-cooled Dell PowerEdge XE7740 server delivers GPU flexibility for AI-driven industries such as finance, healthcare, manufacturing, and more. At 4U, this machine offers up to 16x single-wide 75W or 8x double-wide 600W PCIe AI accelerators, including options like Intel’s Gaudi 3 and NVIDIA H200 NVL.
Dell PowerEdge XE7740 Server - System Overview
Additional Information

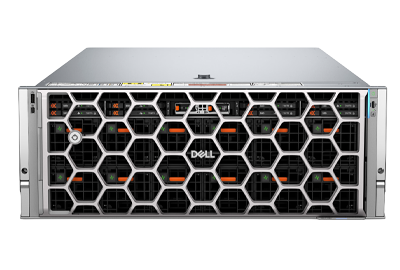

At its core, the PowerEdge XE7740 server is powered by 2x Intel Xeon 6700P 6 series processors with up to 86 cores and a maximum TDP of 350W. The system provides 16x DIMMs per socket for a total of 32x DIMMs, and 2x DIMMS per Channel (2DPC). Using RDIMMs, the system supports up to 4TB of memory with speeds reaching 6400 MT/s. Storage is located at the front of the chassis, where the server can accommodate up to 8x EDSFF E3.S Gen5 NVMe direct-attach drives. Positioned between the drive bays there is a BOSS-N1 DC-MHS controller offering 2x M.2 drive slots for boot optimization. Cooling is handled by a high-performance airflow design featuring 12x platinum grade fans at the front of the chassis and 4x dual-fan platinum-grade modules on the mid-tray.
At the rear of the system, up to 8x PCIe Gen5 expansion slots provide support for next-generation PCIe devices. Power is supplied by up to 8x 3200W Titanium hot-swap redundant power supplies. For system management, administrators can utilize Dell iDRAC or IPMI for remote server monitoring and control.
Dell PowerEdge XE7740 Server - Specifications
Processor
2x Intel Xeon 6 series processors with up to 86 cores per processor
Memory
32x DDR5 DIMM slots, supports RDIMM 3 TB max, speeds up to 6400 MT/s
If you know what you want but can't find the exact configuration you're looking for, have one of our knowledgeable sales staff contact you. Give us a list of the components you would like to incorporate into the system, and the quantities, if more than one. We will get back to you immediately with an official quote.
