Dell PowerEdge XE8640 Server

The 4U Dell PowerEdge XE8640 server supports two 5th generation Intel Xeon Scalable processors each with up to 64 cores, plus DDR5 and PCIe Gen5 compatibility. It supports a maximum of 4TB of memory with speeds of up to 4800MT/s when all 32x DDR5 memory module slots are populated. 4x NVIDIA HGX H100 80GB 700W SXM5 GPUs can also be installed, which are interconnected via NVIDIA’s NVLink technology. These GPUs improve training performance with up to 900GB/s bandwidth for GPU-GPU communication, 1.5x more than the previous generation.

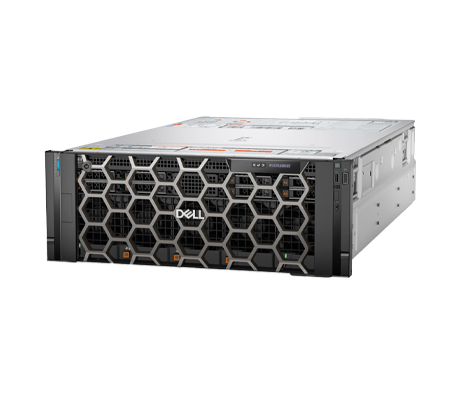

Dell PowerEdge XE8640 side view
Dell Technologies Authorized Partner Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

Dell PowerEdge XE8640 Server - System Overview

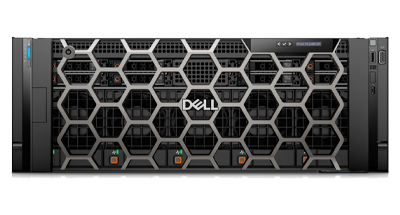

Dell PowerEdge XE8640 server front

The 8-bay Dell PowerEdge XE8640 server is a high-performance system optimized for artificial intelligence, machine learning, HPC modeling and simulation, and deep learning training. It can be outfitted with up to 8x 2.5” NVMe SSD drives for a maximum of 122.88TB of storage to help businesses develop, train, and deploy machine learning models. With a 2-processor configuration, up to 4x PCIe x16 Gen5 slots and 1x OCP 3.0 x8 slot are active providing options for HD controllers or NICs. 2x 1GbE ports in back provide integrated network communications. 2x 2800W Titanium, hot swap power supplies offer redundancy in the event one of them fails. To boot the operating system, this machine supports Dell’s Boot Optimized Storage Subsystem or BOSS. The Boss hosts dual M.2 SSDs that can be placed in a RAID1 configuration for redundancy and accessed at the rear of the chassis. The system is compatible with Red Hat Enterprise Linux or Canonical Ubuntu Server LTS, and offers air cooling for both CPUs and liquid assisted air cooling for the 4x GPUs. Dell PowerEdge XE8640 server rear

Request A Quote

Dell PowerEdge XE8640 Server - Specifications

Processor - 2 Sockets

  • 2x 5th Generation Intel Xeon Scalable processors with up to 64 cores per processor
  • 2x 4th Generation Intel Xeon Scalable processors with up to 56 cores per processor

Memory

  • 32x DDR5 DIMM slots
  • Supports RDIMM 4TB max
  • Speed: Up to 4800MT/s

Storage

    Front bays:
  • Up to 8 x 2.5-inch NVMe SSD drives

Expansion Slots

  • 2 CPU configuration: Up to 4 PCIe slots (4 x16 Gen5)

Controllers

  • Internal boot: Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs
  • Software RAID: S160

Ports

    Front Ports

  • 1 x USB 2.0
  • 1 x VGA
  • 1 x iDRAC Direct (Micro-AB USB) port

    • Rear Ports

  • 1 x iDRAC9 (RJ45) ethernet port
  • 1 x VGA
  • 1 x USB 2.0
  • 1 x USB 3.0

OS Compatibility

  • Canonical Ubuntu Server LTS
  • Red Hat Enterprise Linux

Power Supply

  • 2800W Titanium 200-240 VAC or 240 VDC, hot swap redundant

Cooling Options

  • Liquid Assisted Air Cooling for CPU
  • Air cooling for Processors

Management

  • iDRAC9
  • iDRAC Direct
  • iDRAC RESTful API with Redfish
  • iDRAC Service Module

Security

  • Cryptographically signed firmware
  • Data at Rest Encryption (SEDs with local or external key mgmt)
  • Secure Boot
  • Secured Component Verification (Hardware integrity check)
  • Secure Erase
  • Silicon Root of Trust
  • System Lockdown (requires iDRAC9 Enterprise or Datacenter)
  • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Chassis

  • Height — 174.3 mm (6.86 inches)
  • Width — 481.91 mm (18.97 inches)
  • Depth — 901.4 mm (35.48 inches) with bezel
  • Depth – 865.54 mm (34.07 inches) inch without bezel
  • Weight — 61.4 kg (135.36 pounds)

Dell PowerEdge XE8640 Server - Documentation

Dell PowerEdge XE8640 Specifications Sheet Dell PowerEdge XE8640 Technical Guide Dell PowerEdge XE8640 Installation and Service Manual
